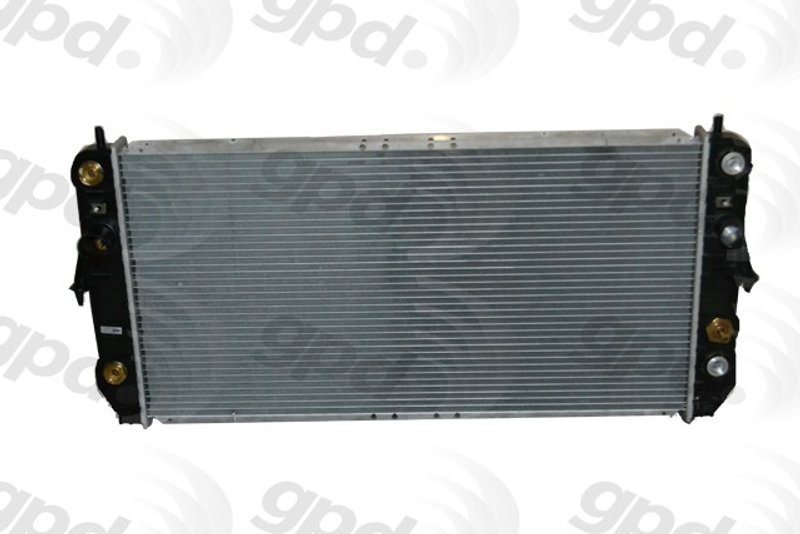

Global Parts 2369C Radiator

Overview of Global Parts Radiator 2369C for Cadillac DeVille

The Global Parts radiator part number 2369C is designed specifically for Cadillac DeVille models, providing reliable cooling performance. This radiator features a cross flow design with integrated transmission and engine oil coolers to support efficient heat dissipation.

• Core Height: 15.31 inches (388.87 mm)
• Core Width: 30.5 inches (774.7 mm)
• Core Thickness: 1.25 inches (31.75 mm)
• Core Material: Aluminum for effective heat transfer
• Plastic tank construction for durability
• Includes transmission oil cooler with adapter fittings spaced 11.5 inches apart
• Engine oil cooler included with fittings also spaced 11.5 inches apart
• Single core row with 56 fins per 4 inches for optimized airflow
• Inlet diameter: 1.31 inches (33.27 mm), Outlet diameter: 1.6 inches (40.64 mm)

Detailed Radiator Specifications and Features

This radiator is engineered with a cross flow core type, which enhances cooling efficiency by allowing coolant to flow horizontally across the core. The aluminum core material ensures rapid heat dissipation, while the plastic tanks provide resistance to corrosion and impact. The inclusion of both transmission and engine oil coolers makes this radiator a comprehensive cooling solution for the Cadillac DeVille, helping maintain optimal operating temperatures for both engine and transmission systems.

Compatible Vehicles and Application

This radiator, part number 2369C, is compatible with Cadillac DeVille models. It is designed to replace original equipment radiators and supports vehicles requiring integrated transmission and engine oil cooling. This part is suitable for addressing cooling system issues related to overheating and fluid temperature regulation.

• Overheating engine due to inefficient radiator core
• Transmission fluid overheating affecting performance
• Engine oil temperature regulation problems
• Leaking or damaged radiator tanks
• Reduced cooling capacity from clogged or corroded cores

Installation Notes and Tips

When installing the Global Parts radiator 2369C, ensure all hose connections match the specified inlet and outlet diameters (1.31 inches and 1.6 inches respectively). Verify the transmission and engine oil cooler fittings align with the 11.5-inch spacing and adapter type fittings. Properly bleed the cooling system after installation to prevent air pockets and ensure optimal coolant flow. It is recommended to inspect all related hoses and clamps for wear during replacement.

Quality Assurance and Warranty Information

Global Parts radiators are manufactured to meet or exceed OEM specifications, using quality materials such as aluminum cores and durable plastic tanks. This radiator undergoes rigorous testing to ensure leak-free performance and structural integrity. Please refer to the manufacturer’s warranty documentation for specific coverage details related to part number 2369C.
