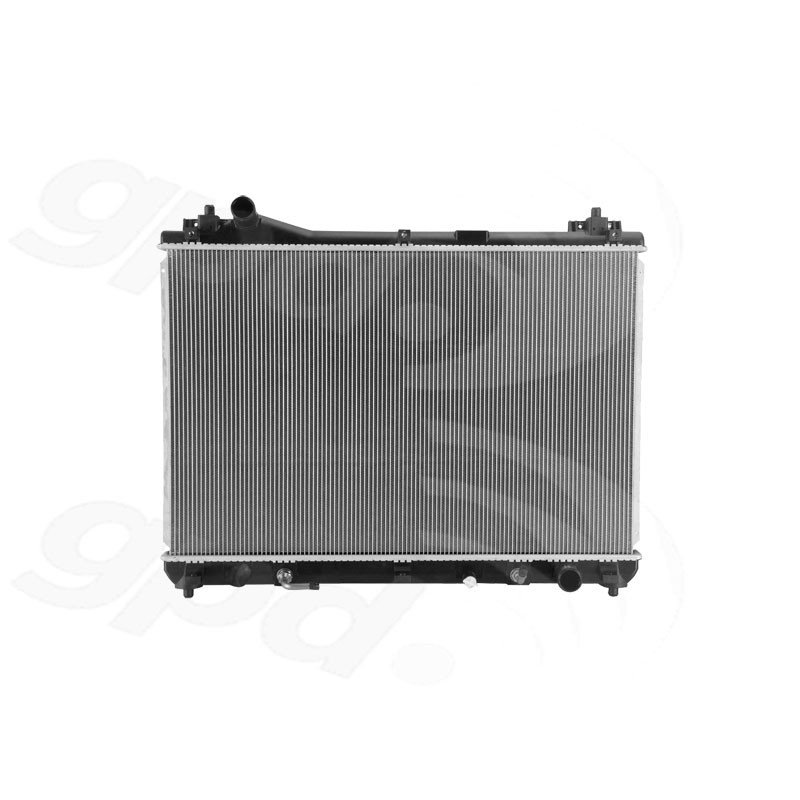

Global Parts 2920C Radiator

Overview of Global Parts Radiator 2920C for Suzuki Vehicles

The Global Parts radiator 2920C is designed specifically for Suzuki Grand Vitara and XL-7 models, providing reliable cooling performance. This radiator features a durable aluminum core and integrated transmission oil cooler to support engine and transmission efficiency.

• Core thickness: 0.63 inches (16 mm)
• Aluminum core material for effective heat dissipation
• Plastic tank construction for corrosion resistance
• Includes transmission oil cooler with tube fittings
• Transmission oil cooler fitting distance: 13.78 inches
• Down flow core design with 78 fins per 4 inches
• Inlet diameter: 1.38 inches (35.05 mm), outlet diameter: 1.4 inches (35.56 mm)
• Single core row configuration

Detailed Description of Radiator 2920C Features

The Global Parts radiator 2920C is engineered with a 0.63-inch thick aluminum core that ensures efficient heat transfer to maintain optimal engine temperature. The plastic tanks provide resistance against corrosion and reduce overall weight. This radiator includes a built-in transmission oil cooler with tube fittings spaced 13.78 inches apart, supporting transmission fluid cooling without the need for additional components. The down flow design promotes effective coolant flow through the single core row, which contains 78 fins every 4 inches to maximize surface area for heat dissipation. The inlet and outlet diameters are precisely sized at 1.38 inches and 1.4 inches respectively, ensuring compatibility with Suzuki Grand Vitara and XL-7 cooling systems.

Compatible Vehicles and Common Applications

This radiator is compatible with the following Suzuki models:

• Suzuki Grand Vitara
• Suzuki XL-7

It is designed to address issues such as:

• Engine overheating due to inefficient cooling
• Transmission fluid overheating from lack of integrated cooling
• Coolant leaks from damaged or corroded radiator tanks
• Reduced cooling performance from clogged or damaged fins
• Incompatibility with OEM radiator dimensions and fittings

Installation Notes and Tips

When installing the Global Parts radiator 2920C, ensure the following:

• Verify the radiator fits the Suzuki Grand Vitara or XL-7 model year and engine configuration
• Check that the inlet and outlet hose diameters match existing hoses (1.38 inches inlet, 1.4 inches outlet)
• Confirm transmission oil cooler fittings align with vehicle transmission lines (tube fitting type, 0.39-inch diameter)
• Inspect mounting points and brackets for secure installation
• Flush the cooling system before installation to prevent contamination

Quality Assurance and Warranty Information

Global Parts manufactures the 2920C radiator to meet industry standards for durability and performance. The aluminum core and plastic tanks are designed to resist corrosion and wear under normal operating conditions. This radiator includes an integrated transmission oil cooler to maintain transmission fluid temperature within manufacturer specifications. Warranty coverage details should be confirmed with the distributor or retailer, as they may vary by region.
