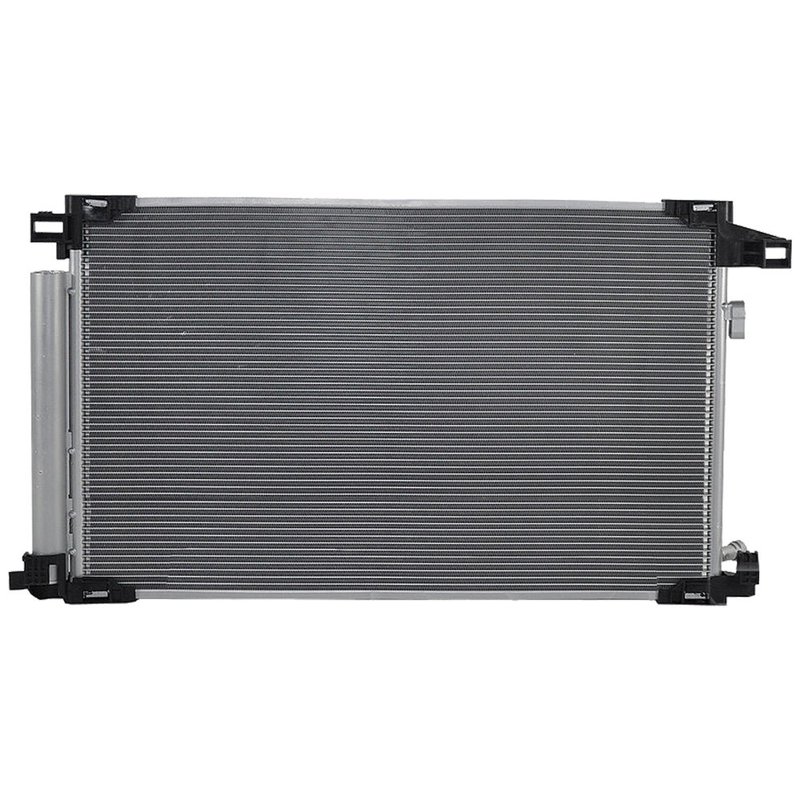

Global Parts 30153C A/C Condenser
| Brand | Global Parts 30153C |
|---|---|
| Core Thickness | 0.47 |
| Core Thickness | 11.94 |
| Core Material | Aluminum |
| Universal Or Specific Fit | Specific |
| Inlet Diameter | 0.61 |
| Inlet Diameter | 15.5 |
| Inlet Fitting Type | Block |
| Condenser Core Type | Parallel flow |
| Oil Cooler Included | No |
| Includes Drier | Yes |
| Desiccant | Yes |
| Fits | Toyota · 8 vehicles |
Parallel-flow design. Promotes efficient heat transfer in the A/C system.
Aluminum core. Lightweight construction helps dissipate heat effectively.
Includes drier. Built with desiccant for added moisture control.
Cross-references Anchor 300469, SKF 30153 and UAC CN30153PFC for the same application. See all 7.
A/C Condenser for Toyota C-HR and Corolla
Global Parts 30153C is an OE-style A/C condenser built for specific Toyota applications, including the 2019-2022 Toyota C-HR and 2020-2023 Toyota Corolla. It uses an aluminum parallel-flow core with a block inlet fitting and includes a drier with desiccant for a direct replacement setup.
Key Features
- Specific-fit A/C condenser for select Toyota models
- Aluminum core construction for efficient heat transfer
- Parallel-flow condenser core design
- Block inlet fitting, 15.5 mm inlet diameter
- Includes drier and desiccant
- No oil cooler included
- Core thickness: 11.94 mm (0.47 in.)
Detailed Description
The Global Parts 30153C condenser removes heat from refrigerant as it passes through the air conditioning system, helping the system return cooled refrigerant to the cabin side of the HVAC circuit. This part is a specific-fit replacement for 2019-2022 Toyota C-HR and 2020-2023 Toyota Corolla models, making it a direct option for drivers searching for a Toyota C-HR A/C condenser or Toyota Corolla condenser replacement. The parallel-flow aluminum design supports efficient refrigerant cooling, and the included drier with desiccant helps restore the condenser assembly to service-ready condition. Part number 30153C also cross-references UAC CN30153PFC for the same application.
What This Part Helps Address
- Warm air from the vents caused by a failing condenser
- Refrigerant heat rejection problems in the A/C system
- Leaks or damage in the condenser assembly
- Restricted cooling performance after compressor service
- Need for a direct replacement on Toyota C-HR and Corolla applications
Installation Notes and Tips
On most vehicles, condensers cannot be cleaned or flushed effectively, so replacement is the standard repair when the unit is contaminated or damaged. Global Parts recommends replacing the condenser whenever a new compressor is installed to help protect the replacement compressor and restore proper system operation. Verify block fitting style, inlet diameter, and vehicle application before installation. Fits 2019-2022 Toyota C-HR and 2020-2023 Toyota Corolla, N/A.
Quality Assurance
Global Parts supplies application-specific HVAC components built to match the listed fitment and OE-style configuration. Part number 30153C is engineered as a direct replacement condenser for the confirmed Toyota applications above.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Toyota | Corolla | 1.8L | L4 | — | N/A | — |
| 2022 | Toyota | C-HR | 2.0L | L4 | — | N/A | — |
| 2022 | Toyota | Corolla | 1.8L | L4 | GAS | N/A | — |
| 2021 | Toyota | C-HR | 2.0L | L4 | — | N/A | — |
| 2021 | Toyota | Corolla | 1.8L | L4 | GAS | N/A | — |
| 2020 | Toyota | C-HR | 2.0L | L4 | — | N/A | — |
| 2020 | Toyota | Corolla | 1.8L | L4 | GAS | N/A | — |
| 2019 | Toyota | C-HR | 2.0L | L4 | — | N/A | — |
