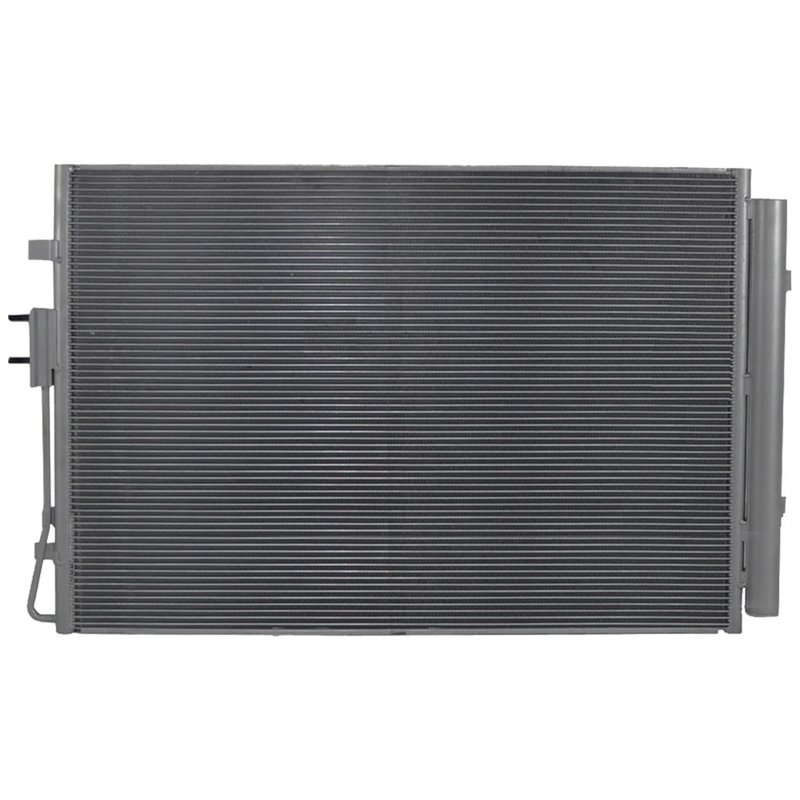

Global Parts 30169C A/C Condenser
| Brand | Global Parts 30169C |
|---|---|
| Core Thickness | 0.63 |
| Core Thickness | 16 |
| Core Material | Aluminum |
| Universal Or Specific Fit | Specific |
| Inlet Diameter | 0.56 |
| Inlet Diameter | 14.22 |
| Inlet Fitting Type | Block |
| Condenser Core Type | Parallel flow |
| Oil Cooler Included | No |
| Includes Drier | Yes |
| Desiccant | Yes |
| Fits | Hyundai · 2 vehicles |
Parallel-flow core. Promotes efficient heat removal from A/C refrigerant.
Aluminum construction. Lightweight material helps support effective cooling performance.
Includes drier. Built with desiccant for added moisture control.
Cross-references Anchor 300471, CSF 10930 and TYC 30169 for the same application. See all 8.
Global Parts 30169C A/C Condenser for Hyundai Palisade
Restore proper A/C system heat rejection with the Global Parts 30169C A/C condenser. This direct-fit replacement is built for 2020-2021 Hyundai Palisade applications and uses a parallel flow aluminum core with an integrated drier and desiccant for service-ready replacement. The 30169C is a specific-fit condenser for the Hyundai Palisade, helping support correct refrigerant cooling after condenser damage or compressor service.
Key Features
- Direct-fit A/C condenser for 2020-2021 Hyundai Palisade
- Parallel flow aluminum core for efficient refrigerant heat transfer
- Includes drier and desiccant
- Block inlet fitting type
- Core thickness: 0.63 in. / 16 mm
- Inlet diameter: 0.56 in. / 14.22 mm
- Specific fit for confirmed vehicle application
Detailed Description
The Global Parts 30169C condenser is engineered to remove heat from refrigerant as it passes through the A/C system. Built with an aluminum parallel flow core, it matches the layout used on 2020-2021 Hyundai Palisade models and is intended as a direct replacement for the original condenser. The included drier and desiccant support proper system service during condenser replacement. This part cross-references TYC 30169 and UAC CN30169PFC for the same application. For shoppers searching for a 2020 Hyundai Palisade A/C condenser replacement or a 2021 Hyundai Palisade condenser, part number 30169C provides a confirmed fitment option.
What It Helps Fix
- Loss of A/C cooling performance from a damaged condenser
- Refrigerant heat rejection problems after front-end impact
- System contamination concerns during condenser replacement
- Service issues when replacing a failed compressor and condenser together
- Fitment problems from using the wrong condenser on a Hyundai Palisade
Installation Notes and Tips
Before installation, verify the vehicle is a 2020-2021 Hyundai Palisade and confirm inlet style and dimensions match the original unit. Because condensers cannot usually be cleaned or flushed on most vehicles, replacement is the standard service approach when the unit is damaged or contaminated. Global Parts recommends replacing the condenser whenever a new compressor is installed to help protect the repaired A/C system. Part number 30169C should be matched to the original condenser configuration before evacuation, recharge, and leak testing.
Quality Assurance
Global Parts supplies OE-style replacement HVAC components built around confirmed vehicle fitment and application-specific design. The 30169C condenser is listed as a preferred replacement for 2020-2021 Hyundai Palisade models and is built with the materials and features needed for proper A/C service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Hyundai | Palisade | 3.8L | V6 | N/A | — |
| 2020 | Hyundai | Palisade | 3.8L | V6 | N/A | — |
