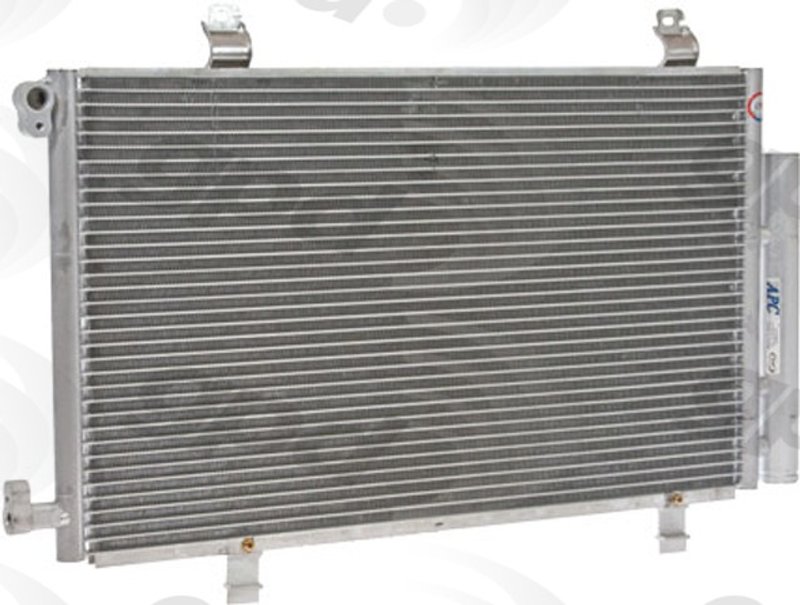

Global Parts 3693C A/C Condenser

Global Parts 3693C A/C Condenser

Global Parts 3693C is a specific-fit A/C condenser for the 2007-2013 Suzuki SX4. It is built with an aluminum parallel-flow core and includes a drier with desiccant for service-ready replacement in the air conditioning system.

Key Features

• Specific fit for 2007-2013 Suzuki SX4
• Aluminum parallel-flow condenser core
• Includes drier and desiccant
• Core thickness: 0.63 in. / 16 mm
• Inlet diameter: 0.63 in. / 16 mm
• Oil cooler not included

Product Details

This A/C condenser removes heat from refrigerant after it leaves the compressor, helping the system return cooled refrigerant to the cabin side of the HVAC circuit. Global Parts 3693C is a direct-fit replacement for the Suzuki SX4 and is built for the 2007-2013 model years. This part cross-references Four Seasons 73693 and DENSO Auto Parts 477-0752 for the same application.

Common Repair Symptoms

• Warm air from the vents during A/C operation
• Visible condenser damage from road debris or corrosion
• Refrigerant loss at the front of the vehicle
• Reduced cooling performance after compressor service
• Restricted heat transfer in the A/C system

Installation Notes

Late-model condensers are generally not cleaned or flushed effectively, so replacement is the standard service approach when contamination or damage is present. Global Parts also recommends replacing the condenser whenever a new compressor is installed to help protect the repaired system. Verify line connections, mounting points, and refrigerant service procedures before charging the system.

Quality Assurance

Built as a specific-fit aluminum condenser with an integrated drier and desiccant for HVAC service replacement. Global Parts 3693C is engineered for the 2007-2013 Suzuki SX4 platform and follows the manufacturer’s guidance for condenser replacement during compressor service.
