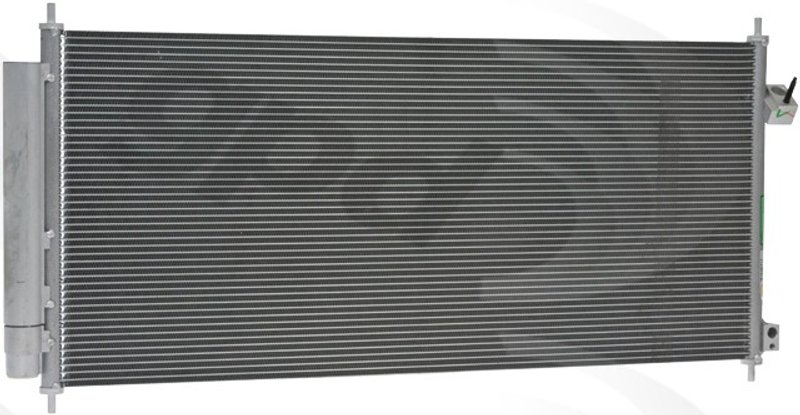

Global Parts 3783C A/C Condenser

Honda Fit A/C Condenser 3783C

Global Parts 3783C is a specific-fit A/C condenser for 2009-2014 Honda Fit models. It removes heat from refrigerant as it passes through the air conditioning system, helping the system return cooled refrigerant to the cabin circuit.

Key Features

• Specific fit for 2009-2014 Honda Fit
• Parallel flow condenser core for efficient refrigerant heat transfer
• Aluminum core construction
• Includes drier and desiccant
• Block inlet fitting type
• Core thickness: 0.63 in. (16 mm)
• Inlet diameter: 0.61 in. (15.49 mm)

Product Details

This Global Parts A/C condenser, part number 3783C, is built for the Honda Fit platform and matches the listed OE-style application. The parallel flow design supports refrigerant cooling efficiency, while the included drier and desiccant address moisture control within the A/C circuit. For late-model Honda Fit A/C service, replacing the condenser during compressor replacement is a common service practice because condensers on these vehicles cannot be cleaned or flushed.

This part cross-references Monroe Shocks & Struts (e.g., 40324) for the same application. The 3783C condenser is also referenced by other aftermarket numbers used for the same Honda Fit fitment.

Common Repair Symptoms

• Warm air from the vents with the A/C switched on
• Refrigerant loss from a damaged condenser core
• Reduced cooling performance after front-end impact
• Moisture contamination in the A/C system
• Compressor replacement service that calls for condenser renewal

Installation Notes

Verify the block inlet connection and overall dimensions before installation. Because this condenser includes a drier and desiccant, confirm the rest of the A/C system is clean and properly evacuated before charging. On 2009-2014 Honda Fit applications, replace the condenser when the compressor is replaced if the system has suffered internal contamination or cannot be flushed.

Quality Assurance

Global Parts supplies OE-style replacement HVAC components for direct-fit service applications. Part number 3783C is built to match the listed Honda Fit fitment and condenser configuration for straightforward replacement work.
