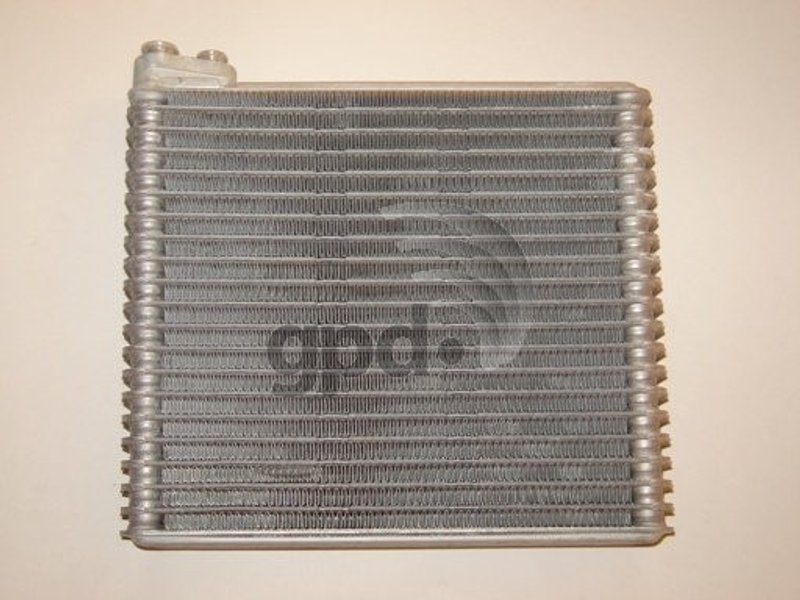

Global Parts 4711704 A/C Evaporator Core

Reliable A/C Evaporator Core for Toyota and Scion Models

The Global Parts A/C Evaporator Core 4711704 is designed to restore efficient cooling performance in select Toyota and Scion vehicles. Engineered with precise dimensions and a block-type inlet fitting, this evaporator core ensures proper fitment and reliable operation.

• Core Height: 8.74 inches
• Core Width: 10.04 inches
• Core Thickness: 2.28 inches
• Inlet Diameter: 0.61 inches
• Inlet Fitting Type: Block

Technical Specifications and Design Details

This A/C evaporator core from Global Parts features a compact design tailored for optimal airflow and heat exchange. The core dimensions of 8.74 inches in height, 10.04 inches in width, and 2.28 inches in thickness provide a precise fit for the HVAC system in Toyota Echo, Scion xA, and Scion xB models. The block-type inlet fitting with a 0.61-inch diameter ensures secure connection to the vehicle’s refrigerant lines, maintaining system integrity and preventing leaks.

Compatible Vehicles and Part Number Information

This evaporator core is compatible with the following vehicles: Toyota Echo, Scion xA, and Scion xB. The part number 4711704 should be referenced when ordering to ensure correct fitment and compatibility with your vehicle’s HVAC system.

Common Issues Addressed by This Evaporator Core

• Reduced cooling efficiency due to clogged or damaged evaporator core
• Refrigerant leaks causing loss of A/C performance
• Unpleasant odors from mold or debris buildup inside the evaporator
• HVAC system moisture accumulation leading to fogging or condensation
• Inconsistent cabin temperature regulation

Installation Notes and Tips

Installation of the Global Parts A/C Evaporator Core 4711704 requires disassembly of the vehicle’s dashboard and HVAC housing. It is recommended to have the system evacuated and recharged by a certified technician to ensure proper refrigerant levels and leak-free operation. Verify the block-type inlet fitting aligns correctly with existing refrigerant lines before final assembly.

Quality Assurance and Warranty

Global Parts manufactures this evaporator core to meet OEM specifications for fit and function. While specific warranty details may vary, the part is backed by standard manufacturer coverage against defects in materials and workmanship. Always consult the warranty documentation provided at purchase for exact terms.
