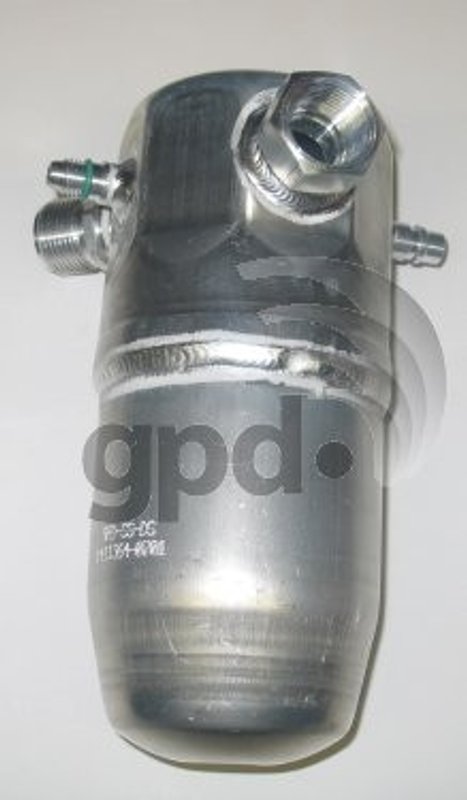

Global Parts 9411630 A/C Receiver Drier Kit

System Service Kit for Rear A/C Service

Global Parts System Service Kit 9411630 is an A/C receiver drier kit for rear air conditioning service on select Chevrolet Astro and GMC Safari vans. It brings together the core replacement components needed when servicing the HVAC system on these applications.

• Fits 1996-2001 Chevrolet Astro, w/ Rear AC
• Fits 1996-2001 GMC Safari, w/ Rear AC
• Includes an accumulator/receiver drier/desiccant bag, expansion device/orifice tube, rear expansion device if equipped, and an O-ring rapid seal kit unless otherwise noted
• Global Parts System Service Kit line for coordinated HVAC service parts
• Part number 9411630 for application-specific lookup

Detailed Product Information

This Global Parts System Service Kit is built for rear A/C-equipped Chevrolet Astro and GMC Safari models from 1996 through 2001. The kit combines the receiver drier function with related expansion components and sealing parts so the major service items are grouped for the same HVAC repair. Part number 9411630 is a direct reference for ordering and catalog matching on these van applications.

The System Service Kit product line is organized to support complete A/C service on vehicles that use multiple related components in the refrigerant circuit. For the Astro and Safari, that means the front expansion valve, rear expansion valve, and sealing components are identified together with the accumulator/receiver drier assembly for the rear A/C system.

Common Issues This Kit Addresses

• Moisture contamination in the A/C refrigerant circuit
• Restricted refrigerant flow through worn expansion components
• Seal leakage at O-ring connection points
• Poor cooling performance in rear A/C-equipped vans
• Service replacement after compressor or system repair

Installation Notes and Tips

Verify rear A/C configuration before ordering and compare the existing components to the catalog notes for your Chevrolet Astro or GMC Safari. Replace the receiver drier and related expansion components during system service, then evacuate and recharge the HVAC system according to factory procedures. Inspect all sealing surfaces and refrigerant lines before assembly.

Quality Assurance

Global Parts supplies this kit as part of its System Service Kit line, which groups the main HVAC service components for the listed applications. Use part number 9411630 to confirm the correct match for 1996-2001 Chevrolet Astro and 1996-2001 GMC Safari models with rear A/C.
