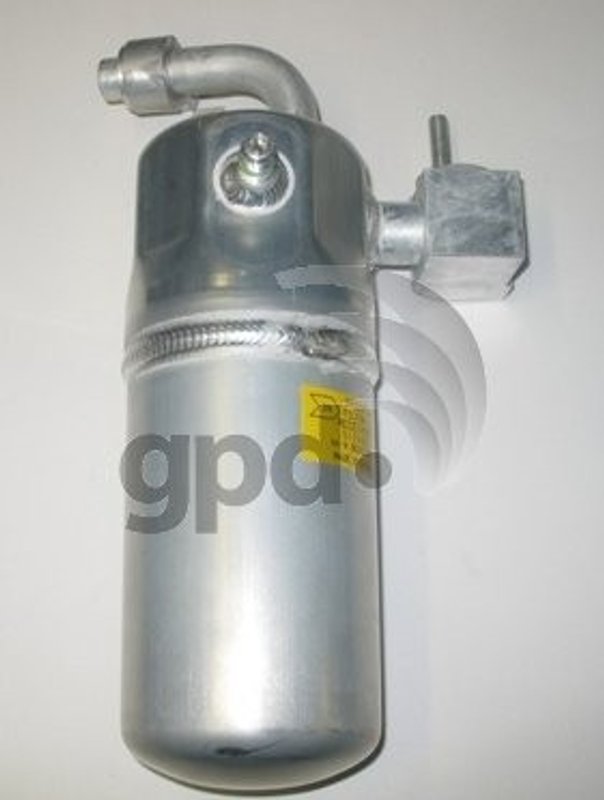

Global Parts 9413290 A/C Receiver Drier Kit

System Service Kit for Rear A/C Service

Global Parts System Service Kit 9413290 is a direct-fit HVAC service kit for select Chevrolet and GMC full-size SUVs with rear air conditioning. It combines the core A/C service components needed for a proper repair on the listed applications, including the receiver drier, expansion devices, and O-ring rapid seal kit where equipped.

Compatible With 2000-2002 Chevrolet Suburban and GMC Yukon XL 2500 applications listed below, this kit supports a complete service approach for rear A/C systems. The Global Parts System Service Kit line is built around matched HVAC service components for vehicles that require multiple related parts during A/C repair.

• Part number 9413290
• System Service Kit for rear A/C-equipped vehicles
• Includes an accumulator/receiver drier/desiccant bag, expansion device/orifice tube, rear expansion device if equipped, and O-ring rapid seal kit unless otherwise noted
• Application-specific fitment for select Chevrolet Suburban and GMC Yukon XL models
• Supports service on systems with multiple fittings and compressor-mounted hose configurations noted in fitment

Detailed Product Overview

This A/C Receiver Drier Kit is intended for vehicles that require coordinated replacement of key HVAC service parts during air conditioning repair. For the 2001-2002 Chevrolet Suburban 1500 and Suburban 2500, as well as the 2001 GMC Yukon XL 2500, the kit addresses rear A/C configurations with the listed expansion devices and seal components. The 2000 GMC Yukon XL 2500 application is also covered for the noted hose-mounting setup. Part number 9413290 helps streamline repair planning when servicing the receiver drier and related expansion components on these platforms.

Common Problems This Kit Can Address

• Restricted refrigerant flow through a worn receiver drier or expansion device
• Loss of cooling performance in rear A/C systems
• Moisture contamination in the HVAC refrigerant circuit
• Seal leakage at service connections and O-ring interfaces
• Uneven front-to-rear cabin cooling on listed Suburban and Yukon XL applications

Installation Notes and Tips

Verify the vehicle’s rear A/C configuration, fitting count, and hose-mounting style before installation. Match the listed notes for 1st design systems and confirm the correct front and rear expansion valve arrangement where applicable. Always evacuate and recharge the system according to OEM service procedures after replacing HVAC components.

Quality Assurance

Global Parts System Service Kits are organized to provide the related HVAC service components specified for the application, helping technicians complete a more complete A/C repair on the listed vehicles.
