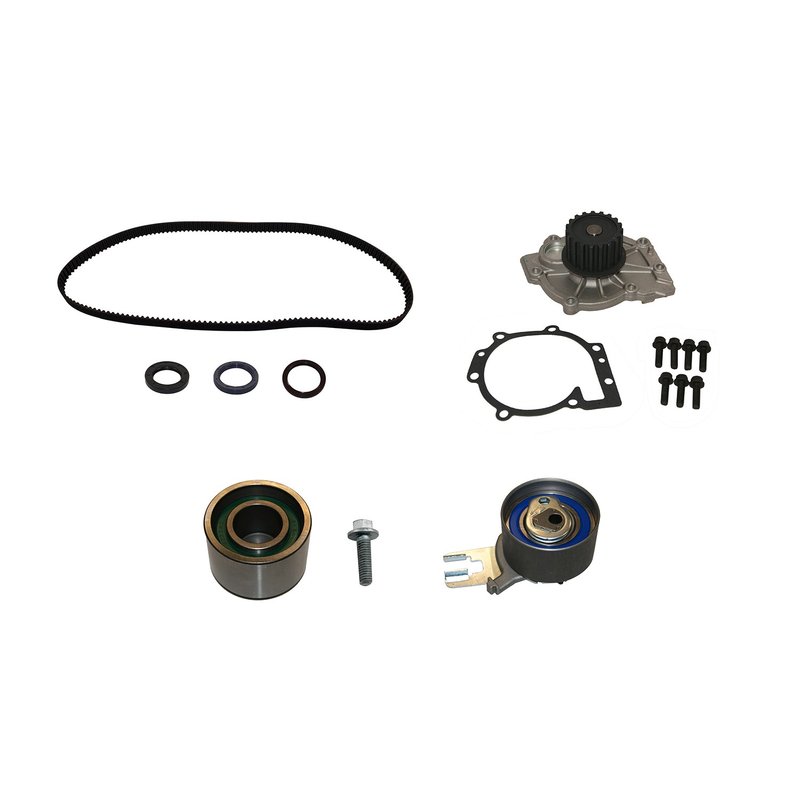

GMB 3490-0319 Engine Timing Belt Kit with Water Pump
| Brand | GMB 3490-0319 |
|---|---|
| Kit | Timing belt, timing belt tensioner, water pump, water pump pulley |
| Additional Contents | None |
| Advance / Retard Direction Markings | No |
| Balance Shaft Belt Idlers Included | 1 |
| Balance Shaft Belt Sprockets Included | No |
| Balance Shaft Belt Tensioners Included | 1 |
| Balance Shaft Belts Included | 1 |
| Belt Material | Rubber |
| Belt Tooth Count | New |
| Belt Width (mm) | N |
| Camshaft Sprockets Included | No |
| Crankshaft Sprocket Included | No |
| Crankshaft Sprocket Timing Change Increments | N |
| Stamped / Etched Timing Increment Scale | No |
| Timing Belt Guides Included | No |
| Timing Belt Idlers Included | 1 |
| Timing Belt Tensioners Included | 6 |
| Timing Belts Included | 1 |
| Timing Set Design | Standard replacement |
| Water Pump Included | Yes |
| Fits | Volvo · 6 vehicles |
OE-spec replacement. Manufactured to meet or exceed OEM specifications.
Complete timing kit. Includes belt, tensioner, water pump, and pulley.
Standard replacement design. Built for straightforward service with no extra contents.
Cross-references Airtex Water Pumps AWK1355, Continental TB319LK1 and Dayco WP319K2B for the same application. See all 13.
GMB 3490-0319 Timing Belt Kit
The GMB 3490-0319 engine timing belt kit with water pump is built for Volvo timing service on 2003-2005 Volvo S80 and 2003-2005 Volvo XC90 applications. It combines the timing belt, timing belt tensioner, water pump, and water pump pulley in one service kit for a standard replacement.
Key Features
- Includes timing belt, timing belt tensioner, water pump, and water pump pulley
- Standard replacement timing set design
- Rubber timing belt construction
- Water pump included for complete timing service
- Balance shaft components included: belt, idler, and tensioner
- Manufactured to meet or exceed OEM specifications
- Part number: 3490-0319
Product Details
This GMB timing belt kit is built for Volvo S80 and Volvo XC90 models from 2003 through 2005. It is intended for timing system maintenance where the belt drive, tensioning components, and water pump are serviced together. The kit supports a standard replacement layout and includes the timing belt, timing belt tensioner, water pump, and water pump pulley, along with balance shaft belt components listed for the application. This part cross-references Gates TCKWP319 for the same application.
Common Issues This Kit Can Address
- Worn or stretched timing belt service intervals
- Noisy or failing timing belt tensioner components
- Coolant leaks from a worn water pump
- Timing system maintenance on high-mileage Volvo S80 and XC90 engines
- Drive noise related to aging balance shaft belt components
Installation Notes
Verify engine code and vehicle application before installation on 2003-2005 Volvo S80 or 2003-2005 Volvo XC90 models. Replace timing components according to factory service procedures, and inspect related pulleys, seals, and belt routing surfaces during service. Confirm proper timing alignment before engine start-up. Part number 3490-0319 should be matched to the vehicle’s exact engine configuration before installation.
Quality Assurance
GMB states this kit is manufactured to meet or exceed OEM specifications. The 3490-0319 timing belt kit is built for OE-style service on Volvo timing applications and is intended to support accurate fitment and dependable replacement performance.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Volvo | S80 | 2.9L | L6 | N/A | — |
| 2005 | Volvo | XC90 | 2.9L | L6 | N/A | — |
| 2004 | Volvo | S80 | 2.9L | L6 | N/A | — |
| 2004 | Volvo | XC90 | 2.9L | L6 | N/A | — |
| 2003 | Volvo | S80 | 2.9L | L6 | N/A | — |
| 2003 | Volvo | XC90 | 2.9L | L6 | N/A | — |
