GMB 500-1005 Fuel Pump Wiring HarnessOE Quality 60-Day Returns
Part #: 500-1005

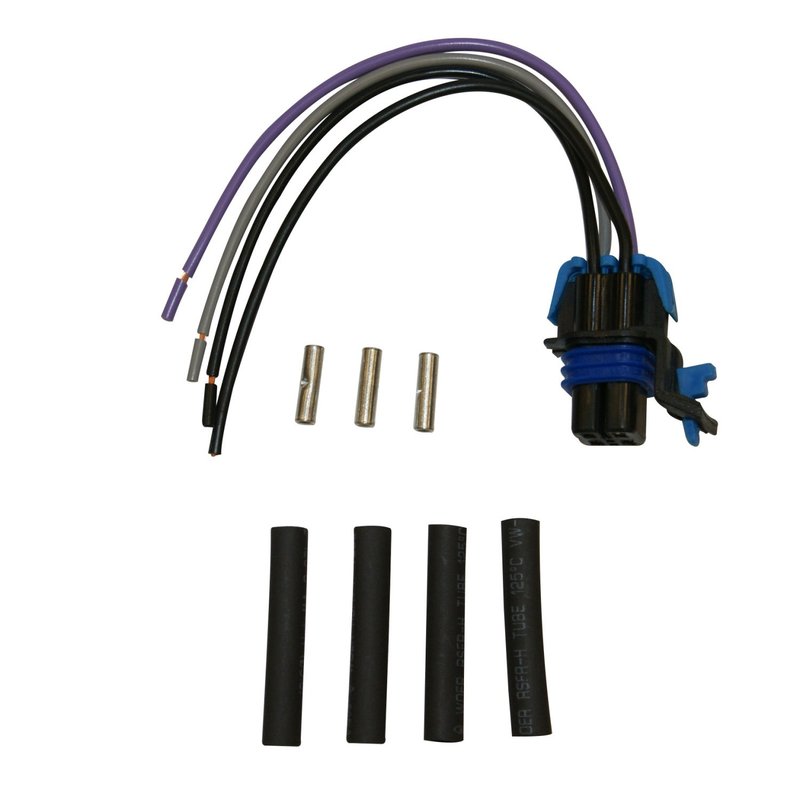

GMB 500-1005 Fuel Pump Wiring Harness

73 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$14.45Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Chevrolet, GMC, Honda, Isuzu, Oldsmobile, and Pontiac, Alero, Astro, Axiom, Cavalier, Classic, Grand Am, Hombre, Malibu, Passport, Rodeo, Safari, and Sunfire
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Fuel Pump Wiring Harness options

Fuel Pump Wiring Harness for OE-Style Repair

This GMB fuel pump wiring harness is manufactured to meet or exceed OEM specifications for dependable electrical connection at the fuel pump. It is a direct-fit replacement for a range of Chevrolet, Pontiac, Isuzu, Honda, and Oldsmobile applications, including Chevrolet Cavalier, Pontiac Sunfire, and Isuzu Rodeo models.

  • Fuel pump wiring harness for air and fuel delivery repair
  • Built to meet or exceed OEM specifications
  • Direct replacement for select GM, Isuzu, and Honda applications
  • Cross-reference part number: Airtex WH3001
  • Cross-reference part number: Delphi FA10004
  • Part number: GMB 500-1005

Detailed Fitment and Application

Compatible With 2001-2005 Chevrolet Cavalier, 2004-2005 Chevrolet Classic, 2000-2005 Pontiac Grand Am, 2001-2005 Pontiac Sunfire, 2002-2004 Isuzu Axiom, 1997-2004 Isuzu Rodeo, 2000-2004 Oldsmobile Alero, 2000-2003 Chevrolet Malibu, 1998-2002 Honda Passport, 1996-2000 Isuzu Hombre, 1997-1999 Chevrolet Astro, and 1997-1999 GMC Safari. Additional fitment includes 2000 Chevrolet Cavalier with plastic fuel tank and 2000 Pontiac Sunfire with plastic fuel tank.

Use GMB 500-1005 when replacing a damaged, corroded, or heat-affected fuel pump harness that can interrupt power delivery to the pump. This part supports reliable electrical continuity in vehicles that rely on a stable fuel pump circuit, including Chevrolet Cavalier and Pontiac Sunfire fuel system repairs.

Common Problems This Part Can Address

  • Intermittent fuel pump operation
  • No-start condition caused by poor pump power delivery
  • Corroded, brittle, or damaged wiring at the fuel tank
  • Voltage loss in the fuel pump circuit
  • Electrical connection issues during fuel pump service

Installation Notes and Tips

Verify the vehicle year, make, model, and fuel tank configuration before ordering, especially for 2000 Chevrolet Cavalier and 2000 Pontiac Sunfire applications with a plastic fuel tank. Inspect the connector, terminals, and surrounding harness routing for heat damage or corrosion before installation. Confirm all electrical connections are fully seated and secured after replacement.

Quality Assurance

GMB manufactures this harness to meet or exceed OEM specifications for fit and function. The part number 500-1005 is listed with multiple interchange references for application matching, including Airtex WH3001 and Delphi FA10004.

This part fits 73 vehicles. Search below:

YearMakeModelLitersCylindersPositionNotes
2005ChevroletCavalierN/A
2005ChevroletClassicN/A
2005PontiacGrand Am3.4LV6N/A
2005PontiacGrand Am2.2LL4N/A
2005PontiacSunfireN/A
2004ChevroletCavalier2.2LL4N/A
2004ChevroletClassicN/A
2004IsuzuAxiom3.5LV6N/A
2004IsuzuRodeo3.5LV6N/A
2004OldsmobileAlero3.4LV6N/A
2004OldsmobileAlero2.2LL4N/A
2004PontiacGrand Am2.2LL4N/A
2004PontiacGrand Am3.4LV6N/A
2004PontiacSunfireN/A
2003ChevroletCavalier2.2LL4N/A
2003ChevroletMalibu3.1LV6N/A
2003IsuzuAxiom3.5LV6N/A
2003IsuzuRodeo3.2LV6N/A
2003OldsmobileAlero3.4LV6N/A
2003OldsmobileAlero2.2LL4N/A
2003PontiacGrand Am2.2LL4N/A
2003PontiacGrand Am3.4LV6N/A
2003PontiacSunfireN/A
2002ChevroletCavalier2.4LL4N/A
2002ChevroletCavalier2.2LL4N/A
2002ChevroletMalibu3.1LV6N/A
2002HondaPassport3.2LV6N/A
2002IsuzuAxiom3.5LV6N/A
2002IsuzuRodeo3.2LV6N/A
2002OldsmobileAlero2.2LL4N/A
2002OldsmobileAlero3.4LV6N/A
2002PontiacGrand Am2.2LL4N/A
2002PontiacGrand Am3.4LV6N/A
2002PontiacSunfire2.2LL4N/A
2002PontiacSunfire2.4LL4N/A
2001ChevroletCavalier2.4LL4N/A
2001ChevroletCavalier2.2LL4N/A
2001ChevroletMalibu3.1LV6N/A
2001HondaPassport3.2LV6N/A
2001IsuzuRodeo2.2LL4N/A
2001OldsmobileAlero2.4LL4N/A
2001OldsmobileAlero3.4LV6N/A
2001PontiacGrand Am2.4LL4N/A
2001PontiacGrand Am3.4LV6N/A
2001PontiacSunfire2.2LL4N/A
2001PontiacSunfire2.4LL4N/A
2000ChevroletCavalier2.2LL4N/Aw/ Plastic Fuel Tank
2000ChevroletCavalier2.4LL4N/Aw/ Plastic Fuel Tank
2000ChevroletMalibu3.1LV6N/A
2000HondaPassport3.2LV6N/A
2000IsuzuHombre4.3LV6N/A
2000IsuzuRodeo2.2LL4N/A
2000OldsmobileAlero3.4LV6N/A
2000OldsmobileAlero2.4LL4N/A
2000PontiacGrand Am3.4LV6N/A
2000PontiacGrand Am2.4LL4N/A
2000PontiacSunfire2.2LL4N/Aw/ Plastic Fuel Tank
2000PontiacSunfire2.4LL4N/Aw/ Plastic Fuel Tank
1999ChevroletAstroN/A
1999GMCSafariN/A
1999HondaPassport3.2LV6N/A
1999IsuzuHombre4.3LV6N/A
1999IsuzuRodeo2.2LL4N/A
1998ChevroletAstroN/A
1998GMCSafariN/A
1998HondaPassport3.2LV6N/A
1998IsuzuHombre2.2LL4N/A
1998IsuzuRodeo2.2LL4N/A
1997ChevroletAstroN/A
1997GMCSafariN/A
1997IsuzuHombre4.3LV6N/A
1997IsuzuRodeo3.2LV6N/A
1996IsuzuHombre2.2LL4N/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

5001005888543A0038QFA10004FPW3WH3001Z11001

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
