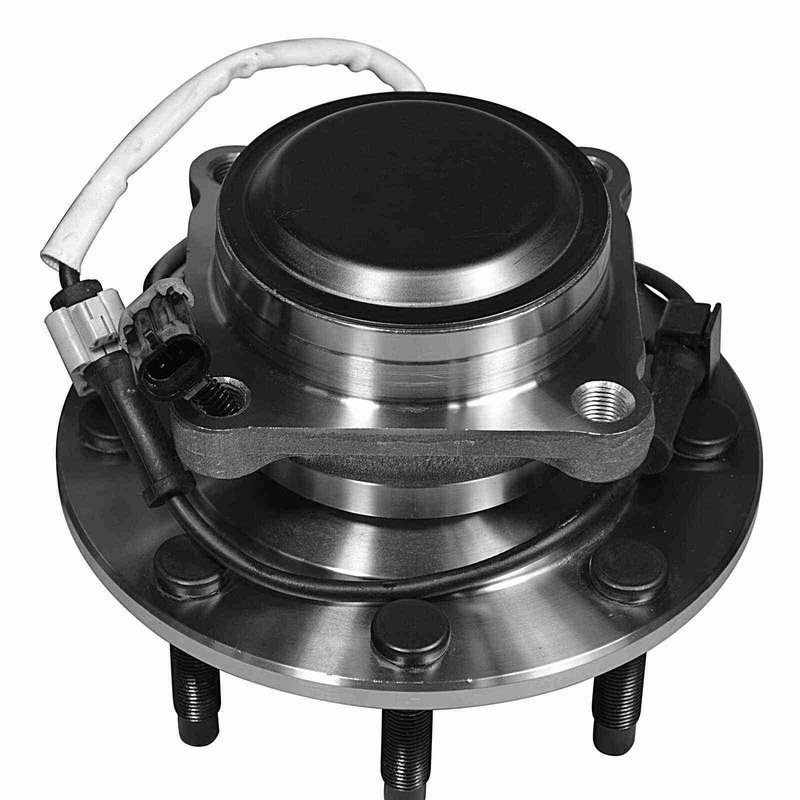

GSP 106059 Wheel Bearing and Hub Assembly - Front

Wheel Bearing and Hub Assembly for GM Vans

GSP 106059 is a front wheel bearing and hub assembly for select Chevrolet Express and GMC Savana applications. It is built for direct replacement service on vehicles that use the specified bolt pattern, pilot diameter, and bearing design.

• Fits 2006-2013 Chevrolet Express 2500, front.
• Fits 2014 Chevrolet Express 2500, front, 180mm ABS sensor or 191mm ABS sensor.
• Fits 2015-2017 Chevrolet Express 2500, front.
• Fits 2003-2005 Chevrolet Express 2500, front, except 7,300 lbs GVW.
• Fits 2008-2013 Chevrolet Express 3500, front.
• Fits 2014 Chevrolet Express 3500, front, 180mm ABS sensor or 191mm ABS sensor.
• Fits 2015-2017 Chevrolet Express 3500, front.
• Fits 2003 Chevrolet Express 3500, front.
• Fits 2011-2012 Chevrolet Express 3500, front, under 10,000 lbs GVW.
• Fits 2004-2012 Chevrolet Express 3500, front, under 9,900 lbs GVW.
• Fits 2006-2013 GMC Savana 2500, front.
• Fits 2014 GMC Savana 2500, front, 180mm ABS sensor or 191mm ABS sensor.
• Fits 2015-2017 GMC Savana 2500, front.
• Fits 2003-2005 GMC Savana 2500, front, except 7,300 lbs GVW.
• Fits 2008-2013 GMC Savana 3500, front.
• Fits 2014 GMC Savana 3500, front, 180mm ABS sensor or 191mm ABS sensor.
• Fits 2015-2017 GMC Savana 3500, front.
• Fits 2003 GMC Savana 3500, front.
• Fits 2011-2012 GMC Savana 3500, front, under 10,000 lbs GVW.
• Fits 2004-2012 GMC Savana 3500, front, under 9,900 lbs GVW.

Key Features

• Gen 3 taper bearing construction for hub service applications.
• 4 wheel studs with a 165 mm bolt circle diameter.
• 116.65 mm hub pilot diameter and 199.5 mm flange diameter.
• Bolts included for installation.
• ABS sensor note coverage for 2014 applications.

Product Details

GSP 106059 is a wheel bearing and hub assembly engineered for front axle service on Chevrolet Express and GMC Savana vans. The Gen 3 taper bearing design, 116.65 mm pilot diameter, 65.1 mm flange offset, and 165 mm bolt circle support correct hub location and wheel mounting geometry for the listed applications. This part number, 106059, also cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Issues

• Wheel play or looseness at the hub.
• Noise from a worn front bearing assembly.
• Improper wheel mounting due to hub wear.
• ABS-related fitment differences on 2014 vans.
• Service needs on high-mileage Chevrolet Express and GMC Savana front hubs.

Installation Notes

Verify the vehicle year, model, GVW note, and ABS sensor note before ordering. Confirm the hub pilot diameter, bolt circle diameter, and flange offset against the original part. Use the listed fitment exactly for Chevrolet Express and GMC Savana front applications. Part number 106059 should be matched to the vehicle configuration shown in the fitment table.

Quality Assurance

GSP supplies this hub assembly as a new replacement part for the specified applications. The Gen 3 bearing design and included bolts support a service-ready replacement for front hub repair.
