GSP New Wheel Bearing and Hub Assembly

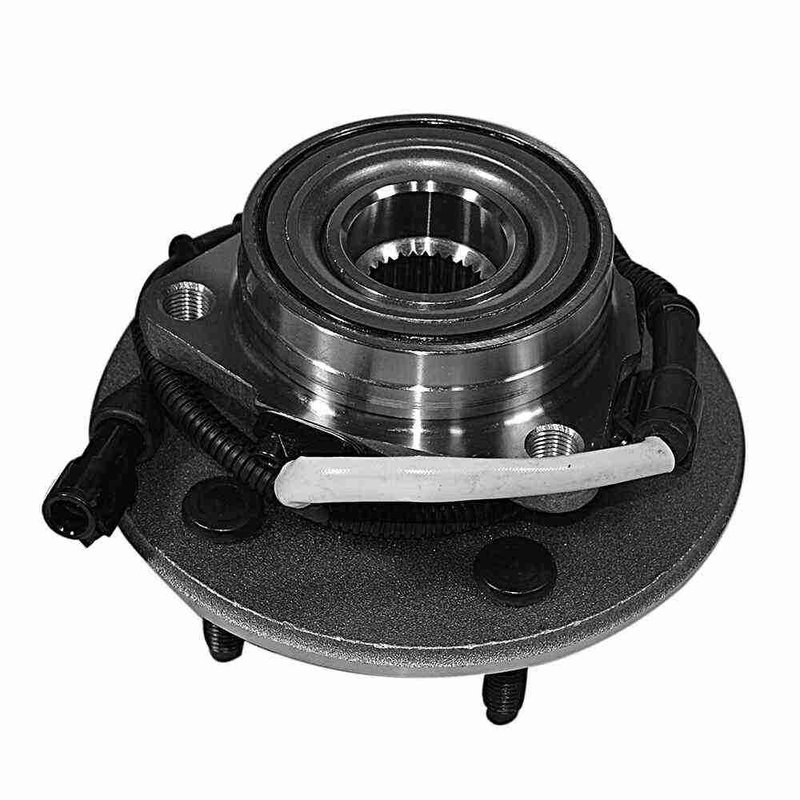

GSP 116010 Wheel Bearing and Hub Assembly - Front

Brand GSP 116010
Position Front
Wheel Stud Quantity 4
Hub Pilot Diameter 86.8
Flange Offset 49.1
Flange Diameter 181.5
Bolt Circle Diameter 135
Anti Lock Braking System N
Bearing Generation Gen 3
Bearing Type Taper
Bolt Thread Pitch M12x1.75
Bolts Included Yes
Inside Spline Quantity 33
Pilot Diameter 86.8
Product line GSP New Wheel Bearing and Hub Assembly
Fits Ford · 32 vehicles

New replacement line. GSP New Wheel Bearing and Hub Assembly for application-specific hub service.

Gen 3 taper bearing. Built with a taper bearing design for hub assembly replacement.

Hub hardware included. Bolts are included for a more complete service part.

Cross-references Centric Parts 402.65011E, Dorman - OE Solutions 951-829 and GMB 725-0049 for the same application. See all 7.

$90.85Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $90.85
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Wheel Bearing and Hub Assembly

The GSP New Wheel Bearing and Hub Assembly, part number 116010, is a front hub assembly for select Ford F-150 applications. It is built around a Gen 3 taper bearing design and includes the hub bolts for a direct replacement-style service job.

Key Features

  • Gen 3 taper bearing construction for hub service applications
  • 4-wheel-stud hub with 135 mm bolt circle diameter
  • 86.8 mm hub pilot diameter and 181.5 mm flange diameter
  • M12 x 1.75 bolt thread pitch
  • 33 inside spline count
  • ABS not included in this application

Detailed Description

This GSP wheel bearing and hub assembly, part number 116010, is engineered for front-wheel service on 1997-1999 Ford F-150 models and 2000 Ford F-150 models with the listed exclusions. The assembly uses a taper bearing design and a 33-spline internal configuration, with the hub dimensions and bolt pattern matched to the application for proper fitment. If you are replacing a worn Ford F-150 front hub, 116010 provides the core bearing-and-hub components in one service part.

GSP New Wheel Bearing and Hub Assembly identifies the brand's new replacement line for hub service parts. For buyers searching Ford F-150 front wheel bearing and hub assembly 116010, this line focuses on application-specific replacement parts with the required hub geometry and fastener interface already defined by the product specifications.

What It Is Used For

  • Eliminating wheel play caused by a worn hub bearing
  • Restoring proper wheel mounting surface and bolt pattern alignment
  • Replacing a noisy or rough-turning front hub assembly
  • Addressing spline wear at the hub interface
  • Correcting fitment issues on Ford F-150 front hub service

Installation Notes and Tips

Verify the vehicle build date and GVW before ordering, since the 2000 Ford F-150 listing excludes GVW 7,700 lbs. and vehicles built after 08/02/1999. Confirm the 33-spline, 4-stud, M12 x 1.75 configuration against the removed part before installation. This part cross-references Timken SP550200 and SKF BR930318 for the same application.

Quality Assurance

GSP supplies this as a new wheel bearing and hub assembly with application-specific dimensions and hardware details defined for the listed fitment.

This part fits 32 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypeLitersCylindersFuel TypePositionNotes
2000FordF-150Lariat4WD5.4LV8GASFrontExc.GVW 7,700 Lbs.; To 08/02/1999; GSP New Wheel Bearing and Hub Assembly
2000FordF-150XLT4WD5.4LV8GASFrontExc.GVW 7,700 Lbs.; To 08/02/1999; GSP New Wheel Bearing and Hub Assembly
2000FordF-150XL4WD5.4LV8GASFrontExc.GVW 7,700 Lbs.; To 08/02/1999; GSP New Wheel Bearing and Hub Assembly
2000FordF-150Base4WD5.4LV8GASFrontExc.GVW 7,700 Lbs.; To 08/02/1999; GSP New Wheel Bearing and Hub Assembly
1999FordF-150Base4WD4.6LV8—FrontGSP New Wheel Bearing and Hub Assembly
1999FordF-150XL4WD4.6LV8—FrontGSP New Wheel Bearing and Hub Assembly
1999FordF-150XLT4WD4.6LV8—FrontGSP New Wheel Bearing and Hub Assembly
1999FordF-150Lariat4WD4.6LV8—FrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150Base4WD4.6LV8—FrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150XLT4WD4.6LV8—FrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150XL4WD4.6LV8—FrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150Lariat4WD5.4LV8CNGFrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150Lariat4WD5.4LV8GASFrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150Lariat4WD5.4LV8BI-FUELFrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150Base4WD5.4LV8CNGFrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150XLT4WD5.4LV8GASFrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150XL4WD5.4LV8CNGFrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150Base4WD5.4LV8BI-FUELFrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150XLT4WD5.4LV8CNGFrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150XL4WD5.4LV8BI-FUELFrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150XL4WD5.4LV8GASFrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150XLT4WD5.4LV8BI-FUELFrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150Base4WD5.4LV8GASFrontGSP New Wheel Bearing and Hub Assembly
1998FordF-150Lariat4WD4.6LV8—FrontGSP New Wheel Bearing and Hub Assembly
1997FordF-150XLT4WD5.4LV8—FrontGSP New Wheel Bearing and Hub Assembly
1997FordF-150Base4WD5.4LV8—FrontGSP New Wheel Bearing and Hub Assembly
1997FordF-150XL4WD5.4LV8—FrontGSP New Wheel Bearing and Hub Assembly
1997FordF-150Base4WD4.6LV8—FrontGSP New Wheel Bearing and Hub Assembly
1997FordF-150XLT4WD4.6LV8—FrontGSP New Wheel Bearing and Hub Assembly
1997FordF-150XL4WD4.6LV8—FrontGSP New Wheel Bearing and Hub Assembly
1997FordF-150Lariat4WD5.4LV8—FrontGSP New Wheel Bearing and Hub Assembly
1997FordF-150Lariat4WD4.6LV8—FrontGSP New Wheel Bearing and Hub Assembly
Directly replaces or cross-references 7 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Centric Parts — 402.65011EDorman - OE Solutions — 951-829GMB — 725-0049QuickSteer — 515010SKF — BR930318Timken — SP550200XL3Z 1104-AD
