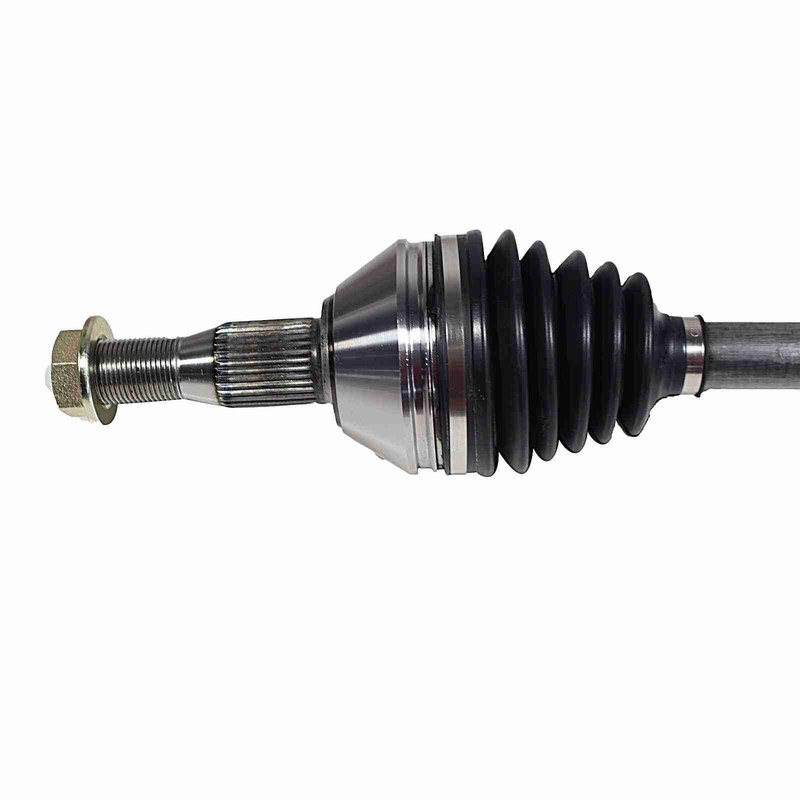

GSP NCV10225 CV Axle Assembly - Front Left or Front Right

Overview

GSP New CV Axle Assembly, part number NCV10225, is built for direct replacement applications that require precise spline counts, the correct compressed length, and a complete axle nut specification. It is engineered with premium steel, a neoprene boot, and grease to meet original equipment expectations for driveline service.

Compatible with Buick, Chevrolet, Pontiac, and Saturn applications, this CV axle supports front left and front right fitments across multiple model years. If you are replacing a worn axle on a Chevrolet Impala, Buick LaCrosse, or Pontiac Grand Prix, NCV10225 provides the dimensional and joint configuration match needed for the job.

Key Features

• Compressed length of 21.26 for application-specific fitment
• 34 inboard splines and 33 outboard splines for correct engagement
• Female inboard joint and conventional outboard joint design
• Neoprene boot with black finish for durable sealing
• Includes axle nut with hex design, 33 socket size, and M27x2 thread

Detailed Description

GSP New CV Axle NCV10225 is designed as a replacement driveline component for vehicles that need the correct axle geometry, spline count, and joint style to restore proper operation. The premium steel construction, neoprene boot, and grease selection are intended to meet OE-level specifications for dependable service. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Fitment includes 2008-2009 Buick LaCrosse, front left; 2006-2009 Chevrolet Impala, front left; 2005-2008 Pontiac Grand Prix, front left; 2006-2007 Chevrolet Monte Carlo, front left; and 2005-2006 Buick Terraza, Chevrolet Uplander, Pontiac Montana, and Saturn Relay, front right. Additional coverage includes 1998-1999 Buick LeSabre and Pontiac Bonneville front left applications with listed final drive ratio notes.

What It Helps Address

• Clicking or popping during turns from a worn CV joint
• Vibration caused by axle wear or imbalance
• Grease leakage from a damaged boot
• Driveline noise from spline or joint wear
• Loss of smooth power transfer through the axle assembly

Installation Notes

Verify the compressed length, spline counts, joint types, axle nut thread size, and fitment notes before installation. This part is listed for specific front left and front right applications, including certain drive ratio configurations on select Buick and Pontiac models. Confirm the vehicle's exact application against the fitment data before ordering.

Quality Assurance

GSP states that this New CV Axle is made from premium materials and built to exceed original equipment specifications for trouble-free operation. Part number NCV10225 is supported by interchange references including Cardone New 66-1206 and 66-1434, Cardone Reman 60-1206, Edelmann 70203, and TrakMotive GM-8052 and GM-8227.
