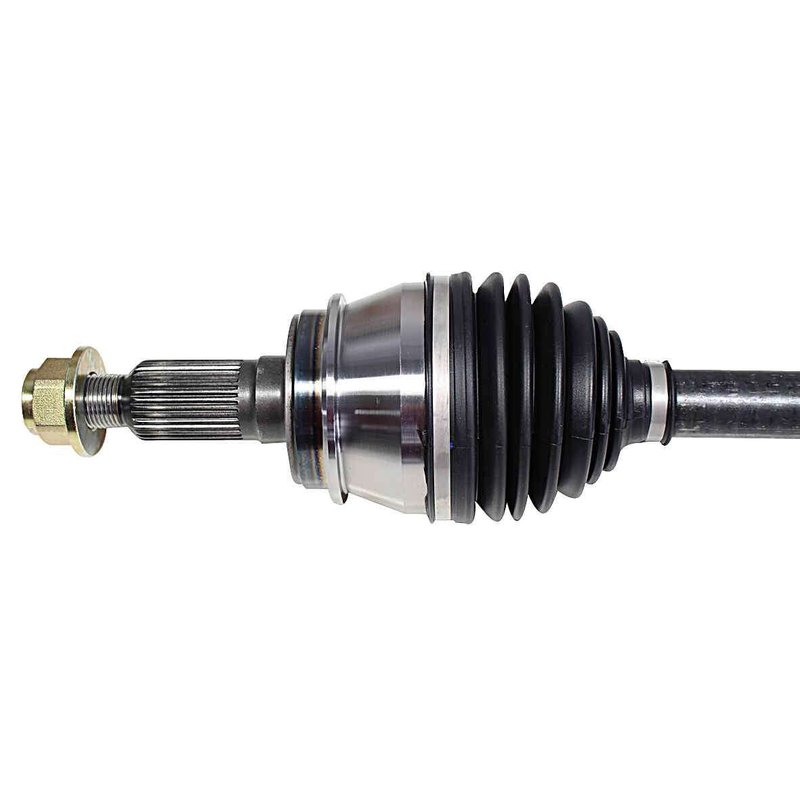

GSP NCV10244 CV Axle Assembly - Front Left or Front Right

GSP New CV Axle Assembly

The GSP New CV Axle Assembly, part number NCV10244, is built for direct replacement service on select Hummer applications. It uses premium steel, a neoprene boot, and grease selected to meet or exceed original equipment specifications for dependable driveline operation.

• Fits 2006-2010 Hummer H3, front right.
• Fits 2006-2010 Hummer H3, front left.
• Fits 2009-2010 Hummer H3T, front left.
• Fits 2009-2010 Hummer H3T, front right.

Key Features

• Premium steel construction for the axle shaft and components.
• Neoprene boot with black finish for flexible sealing performance.
• 28 inboard splines and 33 outboard splines for the listed applications.
• Includes axle nut with 36 mm hex socket size and M24x2 thread.
• Male inboard joint and conventional outboard joint design.

Detailed Description

GSP New CV Axle NCV10244 is engineered as a replacement CV axle assembly for the Hummer H3 and Hummer H3T fitments listed above. The compressed length measures 24.96 inches, and the assembly is configured with a male inboard joint, conventional outboard joint, and a neoprene boot to support consistent articulation and sealing. The included axle nut specification is matched to the application with a 36 mm hex socket size and M24x2 thread. For buyers searching for a Hummer H3 CV axle or Hummer H3T front axle replacement, NCV10244 provides a specification-driven option built around OE-style dimensions and spline counts.

GSP New CV Axle line products are positioned as new replacement driveline components using premium materials rather than remanufactured cores. That makes NCV10244 a practical choice when replacing a worn or noisy CV axle on a Hummer H3 or Hummer H3T and when matching the original axle geometry matters. The part number NCV10244 is also useful when cross-checking driveline catalogs and service references.

What It Helps Fix

• Clicking or popping during turns caused by worn CV joints.
• Vibration or shudder from a damaged axle shaft.
• Boot failure that can lead to grease loss and joint wear.
• Noise from excessive play in the driveline assembly.
• Fitment issues when replacing the original axle with the correct spline and length specification.

Installation Notes and Tips

Verify spline count, compressed length, and axle nut specifications before installation. Confirm the vehicle position and compare the removed axle to NCV10244 to ensure the correct Hummer H3 or Hummer H3T application. Use the proper torque procedure for the axle nut and inspect related suspension and hub components during service.

Quality Assurance

GSP states that this CV axle is made from premium steel, boot, and grease and is intended to exceed original equipment specifications. This part cross-references Cardone New 66-1417 and TrakMotive GM-8240 for the same application.
