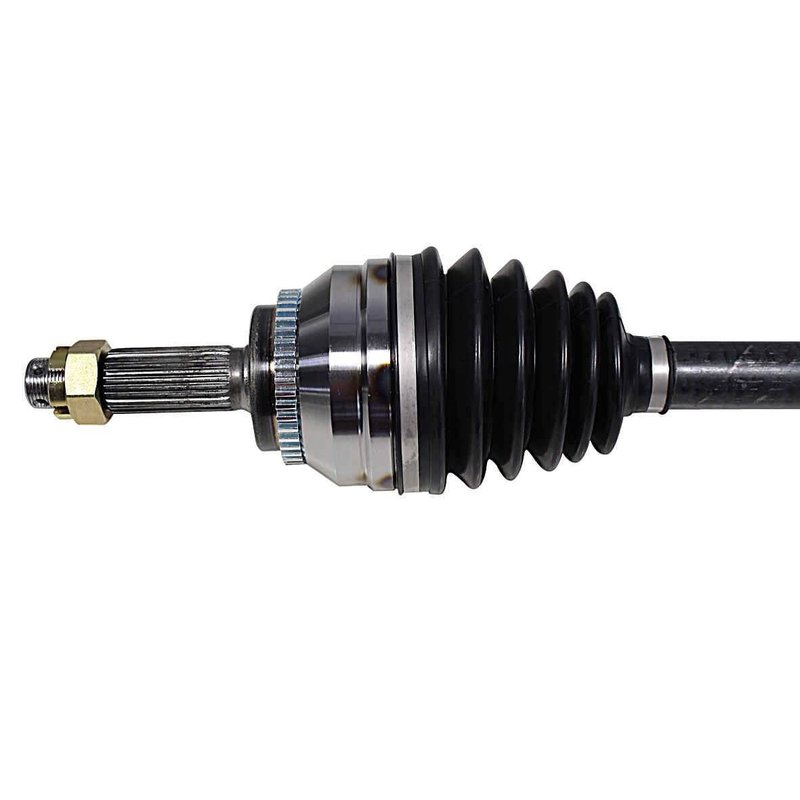

GSP NCV37558 CV Axle Assembly - Front Right
| Brand | GSP NCV37558 |
|---|---|
| Position | Front Right |
| Compressed Length | 23.03 |
| Inboard Spline Quantity | 26 |
| Outboard Spline Quantity | 27 |
| Axle Nut Included | Yes |
| Inboard Joint Type | Female |
| Outboard Joint Type | Conventional |
| Boot Material | Neoprene |
| Boot Color | Black |
| ABS Tone Ring Tooth Quantity | 44 |
| Axle Nut Socket Size | 31.5 |
| Axle Nut Type | Hex |
| Axle Nut Length | 21 |
| Axle Nut Thread Size | M22Γβ1.5 |
| Product line | GSP New CV Axle |
| Fits | Hyundai · 12 vehicles |
OE-style replacement. Built for direct service with premium steel, boot, and grease.
ABS tone ring included. 44-tooth design supports wheel speed sensing applications.
Complete axle nut spec. Includes a hex nut with M22 x 1.5 thread size.
Cross-references Cardone New 66-3463, Cardone Reman 60-3463 and TrakMotive HY-8098 for the same application. See all 12.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
The GSP New CV Axle, part number NCV37558, is built for direct replacement service on the front right side of select Hyundai Tiburon applications. It uses premium steel, a neoprene boot, and grease selected to support smooth driveline operation and OE-level fitment.
Key Features
- Premium steel construction for driveline strength and durability.
- Neoprene boot material with black finish for flexible sealing performance.
- Includes a hex axle nut with M22 x 1.5 thread size.
- 44-tooth ABS tone ring for vehicles equipped with wheel speed sensing.
- Inboard female joint and conventional outboard joint design.
Detailed Description
GSP New CV Axle part number NCV37558 is engineered to meet or exceed original equipment specifications for a trouble-free ride. The compressed length measures 23.03, with 26 inboard splines and 27 outboard splines for the specified application. This CV axle assembly is a fit for 2003-2008 Hyundai Tiburon, front right, and is built to restore proper power transfer through the driveline. The GSP New CV Axle line focuses on replacement parts made with premium materials for consistent service performance.
Common Issues It Can Address
- Clicking or popping noises during turns from a worn CV joint.
- Vibration or shudder during acceleration caused by axle wear.
- Torn or leaking axle boot conditions that allow grease loss.
- Loss of smooth driveline operation from damaged internal components.
Installation Notes and Tips
Verify spline count, compressed length, ABS tone ring count, and axle nut specifications before installation. Confirm fitment for 2003-2008 Hyundai Tiburon, front right, and compare the original axle to NCV37558 before removal. Proper torque procedures and inspection of surrounding suspension and hub components are recommended during service.
Quality Assurance
GSP states that this axle is made with premium steel, boot, and grease and is intended to exceed original equipment specifications. Part number NCV37558 is cross-referenced to Cardone New 66-3463 and TrakMotive HY-8098 for the same application.
| Year | Make | Model | Submodel | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Hyundai | Tiburon | SE | — | Front Right | GSP New CV Axle |
| 2008 | Hyundai | Tiburon | GT Limited | — | Front Right | GSP New CV Axle |
| 2008 | Hyundai | Tiburon | GT | — | Front Right | GSP New CV Axle |
| 2007 | Hyundai | Tiburon | SE | — | Front Right | GSP New CV Axle |
| 2007 | Hyundai | Tiburon | GT Limited | — | Front Right | GSP New CV Axle |
| 2007 | Hyundai | Tiburon | GT | — | Front Right | GSP New CV Axle |
| 2006 | Hyundai | Tiburon | SE | — | Front Right | GSP New CV Axle |
| 2006 | Hyundai | Tiburon | GT | — | Front Right | GSP New CV Axle |
| 2005 | Hyundai | Tiburon | SE | Manual | Front Right | GSP New CV Axle |
| 2005 | Hyundai | Tiburon | GT | — | Front Right | GSP New CV Axle |
| 2004 | Hyundai | Tiburon | GT | — | Front Right | GSP New CV Axle |
| 2003 | Hyundai | Tiburon | GT | — | Front Right | GSP New CV Axle |
