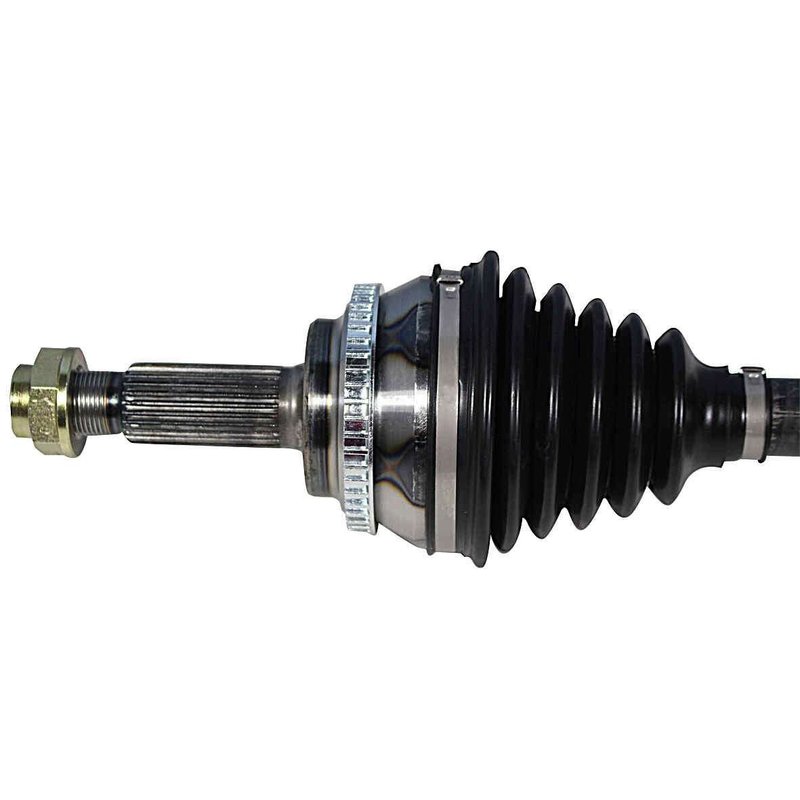

GSP NCV69051 CV Axle Assembly - Front Left
OE Quality 60-Day Returns
GSP
 New CV Axle

GSP NCV69051 CV Axle Assembly - Front Left

Brand GSP NCV69051
Position Front Left
Compressed Length 25.43
Inboard Spline Quantity 20
Outboard Spline Quantity 26
Axle Nut Included Yes
Inboard Joint Type Male
Outboard Joint Type Conventional
Boot Material Neoprene
Boot Color Black
ABS Tone Ring Tooth Quantity 48
Axle Nut Socket Size 32
Axle Nut Type Hex
Axle Nut Length 20
Axle Nut Thread Size M22×1.5
Product line New CV Axle
Fits Pontiac and Toyota · 73 vehicles

OE-style replacement. Built to exceed original equipment specifications for the listed application.

Premium materials. Uses steel, neoprene boot material, and grease for consistent driveline operation.

ABS-ready design. Includes a 48-tooth tone ring for vehicles equipped with ABS sensing.

Cross-references Cardone Reman 60-5287, TrakMotive TO-8234 and WAI 11358N for the same application. See all 15.

$105.10Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $105.10
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Assembly options

CV Axle Assembly for Toyota and Pontiac

The GSP New CV Axle, part number NCV69051, is a front left driveline replacement built with premium steel, a neoprene boot, and grease selected for consistent operation. It is listed for Toyota Corolla, Toyota Matrix, and Pontiac Vibe applications with confirmed front left fitment.

  • Fits 2009-2017 Toyota Corolla, front left.
  • Fits 2018 Toyota Corolla, front left, with split fitment by production date.
  • Fits 2019 Toyota Corolla, front left.
  • Fits 2009-2013 Toyota Matrix, front left.
  • Fits 2003-2008 Toyota Matrix, front left.
  • Fits 2009-2010 Pontiac Vibe, front left.
  • Fits 2003-2008 Pontiac Vibe, front left.

Key Features

  • Premium steel construction for the axle shaft and related components.
  • Neoprene boot material with black finish for flexible sealing.
  • Includes a 48-tooth ABS tone ring for vehicles equipped with ABS sensing.
  • Axle nut included with M22 x 1.5 thread, 32 mm socket size, and hex design.
  • Inboard male joint and conventional outboard joint configuration.
  • Part number NCV69051 for accurate ordering and catalog matching.

Detailed Description

GSP New CV Axle part number NCV69051 is engineered as a direct driveline replacement for specific Toyota Corolla, Toyota Matrix, and Pontiac Vibe front left applications. The assembly uses premium steel, neoprene boot material, and grease to support smooth power transfer while matching the original equipment style of the application. With 20 inboard splines, 26 outboard splines, and a 25.43 compressed length, this CV axle is built around the listed fitment and drivetrain geometry. The included axle nut and 48-tooth ABS tone ring add application-specific completeness for the vehicles shown in the fitment table. This part cross-references Cardone Reman 60-5287 for the same application.

What It Is Used For

  • Restoring driveline function when a CV axle is worn or damaged.
  • Addressing clicking or popping during turns caused by joint wear.
  • Replacing a torn boot that has allowed grease loss and contamination.
  • Correcting vibration or shudder related to axle wear.
  • Replacing a noisy axle assembly on Corolla, Matrix, or Vibe applications.

Installation Notes and Tips

Confirm the vehicle's production date before ordering for 2015 and 2018 Corolla applications, since the fitment splits by build date. Verify spline count, compressed length, ABS tone ring tooth count, and axle nut thread size against the removed part before installation. Use the listed front left fitment only; do not apply this axle to other positions.

Quality Assurance

GSP states that New CV Axles are made from premium materials and built to exceed original equipment specifications for trouble-free operation.

Related reading

This part fits 73 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypeTransmissionLitersCylindersFuel TypePositionNotes
2019ToyotaCorollaSE—Automatic CVT1.8LL4—Front LeftNew CV Axle
2018ToyotaCorollaL—————Front LeftTo 04/2018; GSP New CV Axle
2018ToyotaCorollaXSE—————Front LeftTo 04/2018; GSP New CV Axle
2018ToyotaCorollaXLE—————Front LeftTo 04/2018; GSP New CV Axle
2018ToyotaCorollaXLE—————Front LeftFrom 05/2018; GSP New CV Axle
2018ToyotaCorollaXSE—————Front LeftFrom 05/2018; GSP New CV Axle
2018ToyotaCorollaL—————Front LeftFrom 05/2018; GSP New CV Axle
2018ToyotaCorollaSE——1.8LL4—Front LeftTo 04/2018; GSP New CV Axle
2018ToyotaCorollaLE——1.8LL4—Front LeftTo 04/2018; GSP New CV Axle
2018ToyotaCorollaLE——1.8LL4—Front LeftFrom 05/2018; GSP New CV Axle
2018ToyotaCorollaSE——1.8LL4—Front LeftFrom 05/2018; GSP New CV Axle
2017ToyotaCorollaSE—Manual1.8LL4—Front LeftGSP New CV Axle
2017ToyotaCorollaSE—Automatic CVT1.8LL4—Front LeftGSP New CV Axle
2017ToyotaCorollaXSE—————Front LeftGSP New CV Axle
2017ToyotaCorollaLE Eco—————Front LeftGSP New CV Axle
2017ToyotaCorolla50th Anniversary Special Edition—————Front LeftGSP New CV Axle
2017ToyotaCorollaL—————Front LeftGSP New CV Axle
2017ToyotaCorollaXLE—————Front LeftGSP New CV Axle
2017ToyotaCorollaLE——1.8LL4—Front LeftGSP New CV Axle
2016ToyotaCorollaLE——1.8LL4—Front LeftGSP New CV Axle
2016ToyotaCorollaS—Manual1.8LL4—Front LeftGSP New CV Axle
2016ToyotaCorollaLE Eco—————Front LeftGSP New CV Axle
2016ToyotaCorollaL—————Front LeftGSP New CV Axle
2016ToyotaCorollaSpecial Edition—————Front LeftGSP New CV Axle
2015ToyotaCorollaLE——1.8LL4—Front LeftGSP New CV Axle
2015ToyotaCorollaL—Manual———Front LeftTo 12/2014; GSP New CV Axle
2015ToyotaCorollaL—Automatic———Front LeftTo 12/2014; GSP New CV Axle
2015ToyotaCorollaL—Automatic———Front LeftFrom 01/2015; GSP New CV Axle
2015ToyotaCorollaL—Automatic CVT———Front LeftGSP New CV Axle
2015ToyotaCorollaL—Manual———Front LeftFrom 01/2015; GSP New CV Axle
2015ToyotaCorollaS—Manual1.8LL4—Front LeftTo 12/2014; GSP New CV Axle
2015ToyotaCorollaS—Manual1.8LL4—Front LeftFrom 01/2015; GSP New CV Axle
2015ToyotaCorollaLE Eco—————Front LeftGSP New CV Axle
2014ToyotaCorollaLE——1.8LL4—Front LeftGSP New CV Axle
2014ToyotaCorollaS—Manual1.8LL4—Front LeftGSP New CV Axle
2014ToyotaCorollaLE Eco—————Front LeftGSP New CV Axle
2014ToyotaCorollaLe Eco Plus—————Front LeftGSP New CV Axle
2014ToyotaCorollaL—————Front LeftGSP New CV Axle
2013ToyotaCorollaLE——1.8LL4—Front LeftGSP New CV Axle
2013ToyotaCorollaL—————Front LeftGSP New CV Axle
2013ToyotaCorollaS—————Front LeftGSP New CV Axle
2013ToyotaMatrixBase—————Front LeftGSP New CV Axle
2012ToyotaCorollaL—————Front LeftGSP New CV Axle
2012ToyotaCorollaS—————Front LeftGSP New CV Axle
2012ToyotaMatrixBase—————Front LeftGSP New CV Axle
2011ToyotaCorollaLE——1.8LL4—Front LeftGSP New CV Axle
2011ToyotaCorollaBase—————Front LeftGSP New CV Axle
2011ToyotaCorollaS—————Front LeftGSP New CV Axle
2011ToyotaMatrixBase—————Front LeftGSP New CV Axle
2010PontiacVibeBase——1.8LL4GASFront LeftGSP New CV Axle
2010ToyotaCorollaXLE——1.8LL4—Front LeftGSP New CV Axle
2010ToyotaCorollaLE——1.8LL4—Front LeftGSP New CV Axle
2010ToyotaCorollaBase—————Front LeftGSP New CV Axle
2010ToyotaCorollaS—————Front LeftGSP New CV Axle
2010ToyotaMatrixBase——1.8LL4—Front LeftGSP New CV Axle
2009PontiacVibeBase——1.8LL4GASFront LeftGSP New CV Axle
2009ToyotaCorollaXLE——1.8LL4—Front LeftGSP New CV Axle
2009ToyotaCorollaBase——1.8LL4—Front LeftGSP New CV Axle
2009ToyotaCorollaLE——1.8LL4—Front LeftGSP New CV Axle
2009ToyotaCorollaS——1.8LL4—Front LeftGSP New CV Axle
2009ToyotaMatrixBase——1.8LL4—Front LeftGSP New CV Axle
2008PontiacVibe—FWDManual———Front LeftNew CV Axle
2008ToyotaMatrixBaseFWDManual———Front LeftNew CV Axle
2007PontiacVibe—FWDManual———Front LeftNew CV Axle
2007ToyotaMatrixBaseFWDManual———Front LeftNew CV Axle
2006PontiacVibe—FWDManual———Front LeftNew CV Axle
2006ToyotaMatrixBaseFWDManual———Front LeftNew CV Axle
2005PontiacVibe—FWDManual———Front LeftNew CV Axle
2005ToyotaMatrixBaseFWDManual———Front LeftNew CV Axle
2004PontiacVibe—FWDManual———Front LeftNew CV Axle
2004ToyotaMatrixBaseFWDManual———Front LeftNew CV Axle
2003PontiacVibe—FWDManual———Front LeftNew CV Axle
2003ToyotaMatrixXRS—Automatic———Front LeftNew CV Axle
Directly replaces or cross-references 15 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cardone Reman — 60-5287TrakMotive — TO-8234WAI — 11358N43420-02B1043420-02B1143420-02B6043420-02B6143420-02B6243420-02820706101182718819183738192049851920541119365210
