OE Quality
60-Day Returns
Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.
GSP

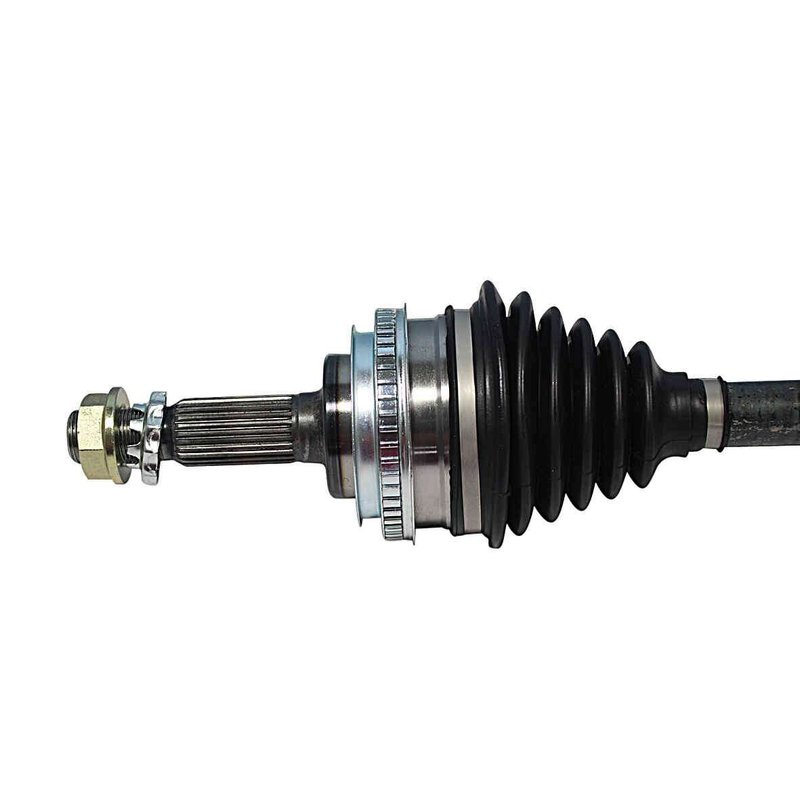

GSP New CV AxleGSP NCV69520 CV Axle Assembly - Front Right
| Brand | GSP NCV69520 |
|---|---|
| Position | Front Right |
| Compressed Length | 36.22 |
| Inboard Spline Quantity | 23 |
| Outboard Spline Quantity | 26 |
| Axle Nut Included | Yes |
| Inboard Joint Type | Male |
| Outboard Joint Type | Conventional |
| Boot Material | Neoprene |
| Boot Color | Black |
| ABS Tone Ring Tooth Quantity | 48 |
| Axle Nut Socket Size | 30 |
| Axle Nut Type | Hex |
| Axle Nut Length | 15 |
| Axle Nut Thread Size | M22×1.5 |
| Product line | GSP New CV Axle |
| Fits | Chevrolet, Geo, and Toyota · 92 vehicles |
OE-level replacement. Built to meet original equipment specifications for driveline service.
Premium materials. Uses steel, neoprene boot, and grease for durable axle construction.
ABS tone ring included. Features a 48-tooth ring for applications that use wheel speed sensing.
Cross-references Cardone New 66-5125, Cardone Reman 60-5124 and Cardone Reman 60-5125 for the same application. See all 34.
$83.83Free shipping
In stock · usually ships same day before 1pm CST
Vehicle: not selected
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Fitment not checked
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
$83.83
Free shipping
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Assembly options
CV Axle Assembly for Toyota and Chevrolet
The GSP New CV Axle, part number NCV69520, is built for front right applications across select Toyota, Chevrolet, and Geo models. It uses premium steel, a neoprene boot, and quality grease to meet OE-level expectations for driveline service.
- Fits 1998-2002 Chevrolet Prizm, front right.
- Fits 1993-2002 Toyota Corolla, front right.
- Fits 1993-1997 Geo Prizm, front right.
- Fits 1990-1993 Toyota Celica, front right.
Key Features
- GSP New CV Axle line for direct replacement applications.
- Premium steel construction with a black neoprene boot.
- 23 inboard splines and 26 outboard splines for the listed fitments.
- Includes a 48-tooth ABS tone ring.
- Axle nut included with M22 x 1.5 thread, 30 mm socket size, and hex design.
Detailed Description
NCV69520 is a CV axle assembly engineered for front right driveline service on compatible Toyota Corolla, Toyota Celica, Chevrolet Prizm, and Geo Prizm applications. The assembly features a male inboard joint, conventional outboard joint, 36.22-inch compressed length, and a neoprene boot designed to retain grease and protect the joint from contamination. GSP states that this New CV Axle line is built from premium materials and is intended to meet or exceed original equipment specifications for dependable operation. This part cross-references Cardone New 66-5125 and TrakMotive TO-8012 for the same application.
What It Is Used For
- Restoring smooth power transfer through the driveline.
- Replacing a worn or noisy CV axle assembly.
- Addressing torn boot and grease loss conditions.
- Correcting vibration or clicking during turns and acceleration.
- Replacing a damaged axle with the proper spline and ABS configuration.
Installation Notes and Tips
Verify spline count, axle length, ABS tone ring tooth count, and axle nut thread size before installation. Confirm front right fitment against the vehicle application and compare the removed axle to the new assembly. Use the listed axle nut specifications during service and inspect related seals, hubs, and suspension components for wear.
Quality Assurance
GSP positions the New CV Axle line as an OE-specification replacement built with premium steel, boot, and grease for consistent driveline performance.
This part fits 92 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2002 | Chevrolet | Prizm | Base | — | 1.8L | L4 | GAS | Front Right | GSP New CV Axle |
| 2002 | Chevrolet | Prizm | LSi | — | 1.8L | L4 | GAS | Front Right | GSP New CV Axle |
| 2002 | Toyota | Corolla | CE | — | — | — | — | Front Right | GSP New CV Axle |
| 2002 | Toyota | Corolla | LE | — | — | — | — | Front Right | GSP New CV Axle |
| 2002 | Toyota | Corolla | S | — | — | — | — | Front Right | GSP New CV Axle |
| 2001 | Chevrolet | Prizm | Base | — | 1.8L | L4 | GAS | Front Right | GSP New CV Axle |
| 2001 | Chevrolet | Prizm | LSi | — | 1.8L | L4 | GAS | Front Right | GSP New CV Axle |
| 2001 | Toyota | Corolla | CE | — | — | — | — | Front Right | GSP New CV Axle |
| 2001 | Toyota | Corolla | LE | — | — | — | — | Front Right | GSP New CV Axle |
| 2001 | Toyota | Corolla | S | — | — | — | — | Front Right | GSP New CV Axle |
| 2000 | Chevrolet | Prizm | Base | — | 1.8L | L4 | GAS | Front Right | GSP New CV Axle |
| 2000 | Chevrolet | Prizm | LSi | — | 1.8L | L4 | GAS | Front Right | GSP New CV Axle |
| 2000 | Toyota | Corolla | VE | — | — | — | — | Front Right | GSP New CV Axle |
| 2000 | Toyota | Corolla | LE | — | — | — | — | Front Right | GSP New CV Axle |
| 2000 | Toyota | Corolla | CE | — | — | — | — | Front Right | GSP New CV Axle |
| 1999 | Chevrolet | Prizm | Base | — | 1.8L | L4 | GAS | Front Right | GSP New CV Axle |
| 1999 | Chevrolet | Prizm | LSi | — | 1.8L | L4 | GAS | Front Right | GSP New CV Axle |
| 1999 | Toyota | Corolla | VE | — | — | — | — | Front Right | GSP New CV Axle |
| 1999 | Toyota | Corolla | LE | — | — | — | — | Front Right | GSP New CV Axle |
| 1999 | Toyota | Corolla | CE | — | — | — | — | Front Right | GSP New CV Axle |
| 1998 | Chevrolet | Prizm | Base | — | 1.8L | L4 | GAS | Front Right | GSP New CV Axle |
| 1998 | Chevrolet | Prizm | LSi | — | 1.8L | L4 | GAS | Front Right | GSP New CV Axle |
| 1998 | Toyota | Corolla | VE | — | — | — | — | Front Right | GSP New CV Axle |
| 1998 | Toyota | Corolla | LE | — | — | — | — | Front Right | GSP New CV Axle |
| 1998 | Toyota | Corolla | CE | — | — | — | — | Front Right | GSP New CV Axle |
| 1997 | Geo | Prizm | LSi | — | 1.6L | L4 | — | Front Right | GSP New CV Axle |
| 1997 | Geo | Prizm | Base | — | 1.6L | L4 | — | Front Right | GSP New CV Axle |
| 1997 | Geo | Prizm | LSi | — | 1.8L | L4 | — | Front Right | GSP New CV Axle |
| 1997 | Toyota | Corolla | CE | — | 1.8L | L4 | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1997 | Toyota | Corolla | CE | — | 1.8L | L4 | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1997 | Toyota | Corolla | CE | — | 1.6L | L4 | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1997 | Toyota | Corolla | CE | — | 1.6L | L4 | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1997 | Toyota | Corolla | LE | — | — | — | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1997 | Toyota | Corolla | LE | — | — | — | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1997 | Toyota | Corolla | Base | — | — | — | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1997 | Toyota | Corolla | DX | — | — | — | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1997 | Toyota | Corolla | Base | — | — | — | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1997 | Toyota | Corolla | DX | — | — | — | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1997 | Toyota | Corolla | CE | — | 1.6L | L4 | — | Front Right | GSP New CV Axle |
| 1997 | Toyota | Corolla | CE | — | 1.8L | L4 | — | Front Right | GSP New CV Axle |
| 1997 | Toyota | Corolla | Base | — | — | — | — | Front Right | GSP New CV Axle |
| 1997 | Toyota | Corolla | DX | — | — | — | — | Front Right | GSP New CV Axle |
| 1997 | Toyota | Corolla | LE | — | — | — | — | Front Right | GSP New CV Axle |
| 1996 | Geo | Prizm | LSi | — | 1.6L | L4 | — | Front Right | GSP New CV Axle |
| 1996 | Geo | Prizm | Base | — | 1.6L | L4 | — | Front Right | GSP New CV Axle |
| 1996 | Geo | Prizm | LSi | — | 1.8L | L4 | — | Front Right | GSP New CV Axle |
| 1996 | Toyota | Corolla | Base | — | — | — | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1996 | Toyota | Corolla | DX | — | — | — | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1996 | Toyota | Corolla | Base | — | — | — | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1996 | Toyota | Corolla | DX | — | — | — | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1996 | Toyota | Corolla | Base | — | — | — | — | Front Right | GSP New CV Axle |
| 1996 | Toyota | Corolla | DX | — | — | — | — | Front Right | GSP New CV Axle |
| 1995 | Geo | Prizm | LSi | — | 1.6L | L4 | — | Front Right | GSP New CV Axle |
| 1995 | Geo | Prizm | Base | — | 1.6L | L4 | — | Front Right | GSP New CV Axle |
| 1995 | Geo | Prizm | LSi | — | 1.8L | L4 | — | Front Right | GSP New CV Axle |
| 1995 | Toyota | Corolla | LE | — | — | — | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1995 | Toyota | Corolla | LE | — | — | — | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1995 | Toyota | Corolla | Base | — | — | — | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1995 | Toyota | Corolla | DX | — | — | — | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1995 | Toyota | Corolla | Base | — | — | — | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1995 | Toyota | Corolla | DX | — | — | — | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1995 | Toyota | Corolla | Base | — | — | — | — | Front Right | GSP New CV Axle |
| 1995 | Toyota | Corolla | DX | — | — | — | — | Front Right | GSP New CV Axle |
| 1995 | Toyota | Corolla | LE | — | — | — | — | Front Right | GSP New CV Axle |
| 1994 | Geo | Prizm | LSi | — | 1.6L | L4 | — | Front Right | GSP New CV Axle |
| 1994 | Geo | Prizm | Base | — | 1.6L | L4 | — | Front Right | GSP New CV Axle |
| 1994 | Geo | Prizm | LSi | — | 1.8L | L4 | — | Front Right | GSP New CV Axle |
| 1994 | Toyota | Corolla | LE | — | — | — | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1994 | Toyota | Corolla | LE | — | — | — | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1994 | Toyota | Corolla | Base | — | — | — | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1994 | Toyota | Corolla | DX | — | — | — | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1994 | Toyota | Corolla | Base | — | — | — | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1994 | Toyota | Corolla | DX | — | — | — | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1994 | Toyota | Corolla | Base | — | — | — | — | Front Right | GSP New CV Axle |
| 1994 | Toyota | Corolla | DX | — | — | — | — | Front Right | GSP New CV Axle |
| 1994 | Toyota | Corolla | LE | — | — | — | — | Front Right | GSP New CV Axle |
| 1993 | Geo | Prizm | LSi | — | 1.6L | L4 | — | Front Right | GSP New CV Axle |
| 1993 | Geo | Prizm | Base | — | 1.6L | L4 | — | Front Right | GSP New CV Axle |
| 1993 | Geo | Prizm | LSi | — | 1.8L | L4 | — | Front Right | GSP New CV Axle |
| 1993 | Toyota | Celica | ST | Manual | — | — | — | Front Right | GSP New CV Axle |
| 1993 | Toyota | Corolla | Base | — | 1.6L | L4 | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1993 | Toyota | Corolla | Base | — | 1.6L | L4 | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1993 | Toyota | Corolla | LE | — | — | — | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1993 | Toyota | Corolla | LE | — | — | — | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1993 | Toyota | Corolla | DX | — | — | — | — | Front Right | Vendor:SAGINAW; GSP New CV Axle |
| 1993 | Toyota | Corolla | DX | — | — | — | — | Front Right | Vendor:TOYOTA; GSP New CV Axle |
| 1993 | Toyota | Corolla | Base | — | 1.6L | L4 | — | Front Right | GSP New CV Axle |
| 1993 | Toyota | Corolla | DX | — | — | — | — | Front Right | GSP New CV Axle |
| 1993 | Toyota | Corolla | LE | — | — | — | — | Front Right | GSP New CV Axle |
| 1992 | Toyota | Celica | ST | Manual | — | — | — | Front Right | GSP New CV Axle |
| 1991 | Toyota | Celica | ST | Manual | — | — | — | Front Right | GSP New CV Axle |
| 1990 | Toyota | Celica | ST | Manual | — | — | — | Front Right | GSP New CV Axle |
| No rows match your filter. | |||||||||
Directly replaces or cross-references 34 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cardone New — 66-5125Cardone Reman — 60-5124Cardone Reman — 60-5125Four Seasons — 6992NTrakMotive — TO-801236-375536-375694-401195-416695-416743410-0203043410-0203143410-02031-8443410-0204043410-0204143410-0207043410-0208043410-0209043410-0209143410-0210043410-0210143410-2015243410-2042043410-2044043410-2044143410-2044243410-2045043410-2046043410-204639050226054897260548992606768826067690
