Handy Pack HP3820 Instrument Panel Dimmer Switch Connector

Instrument Panel Dimmer Switch Connector for Ford

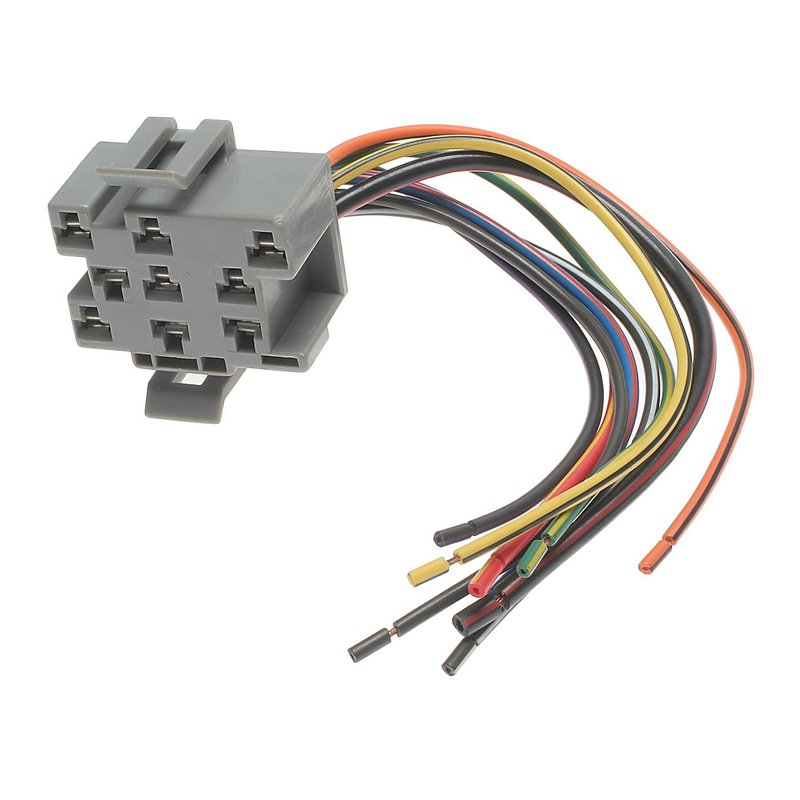

Restore a damaged headlight switch or instrument panel dimmer connection with this Handy Pack pigtail and socket assembly. Part number HP3820 is built for Ford and Mazda applications that use a 9-terminal blade-style connector, making it a direct repair solution for broken, heat-damaged, or corroded wiring ends.

Compatible With a wide range of Ford E-Series vans, Mustang, Ranger, Bronco, Explorer, and select Mazda truck applications, this connector supports clean wire-to-wire repair using standard crimping tools. HP3820 is a practical choice when the original connector housing or terminals are no longer serviceable.

Key Features

• Male connector with 1 connector body
• 9 male blade terminals for instrument panel dimmer switch and headlight switch circuits
• 9-wire pigtail layout for splice-in repair work
• Color-coded lead wires simplify harness matching during installation
• Repairs broken, overheated, or corroded electrical connections
• Fits many Ford and Mazda vehicles from 1977-2008

Detailed Description

Handy Pack HP3820 is an electrical connector pigtail and socket assembly used for instrument panel dimmer switch and headlight switch repair. It is designed around a male connector with blade terminals and is commonly used on Ford platforms including the E-150, E-250, E-350, Mustang, Ranger, Bronco, Explorer, Tempo, and related Mercury and Lincoln applications. It also covers select Mazda B-Series trucks and Navajo models with the specified 9-terminal female connector configuration noted in fitment.

This part cross-references Ford service applications where the original connector has failed at the switch or harness interface. HP3820 helps restore a secure electrical connection without replacing the full wiring harness. Part number HP3820 is a focused repair connector for technicians working on older Ford and Mazda lighting and dash circuits.

What It Helps Repair

• Intermittent headlight switch operation caused by damaged terminals
• Dimmer switch faults from heat-affected or loose connector pins
• Corrosion at the instrument panel connector interface
• Broken wiring at the switch pigtail
• Harness damage from age, vibration, or prior repairs

Installation Notes and Tips

Splice the color-coded lead wires into the existing harness using approved crimping tools and proper electrical repair practices. Verify terminal count, connector gender, and vehicle-specific notes before installation, especially on applications marked with gray 9-terminal female, push-pull type, or multiple-connector requirements. Confirm the original connector style on the vehicle before final assembly.

Quality Assurance

Handy Pack HP3820 is built as a service replacement connector for electrical repair work on Ford and Mazda lighting circuits. Its pigtail format supports a clean repair approach when the original connector is no longer reliable.
