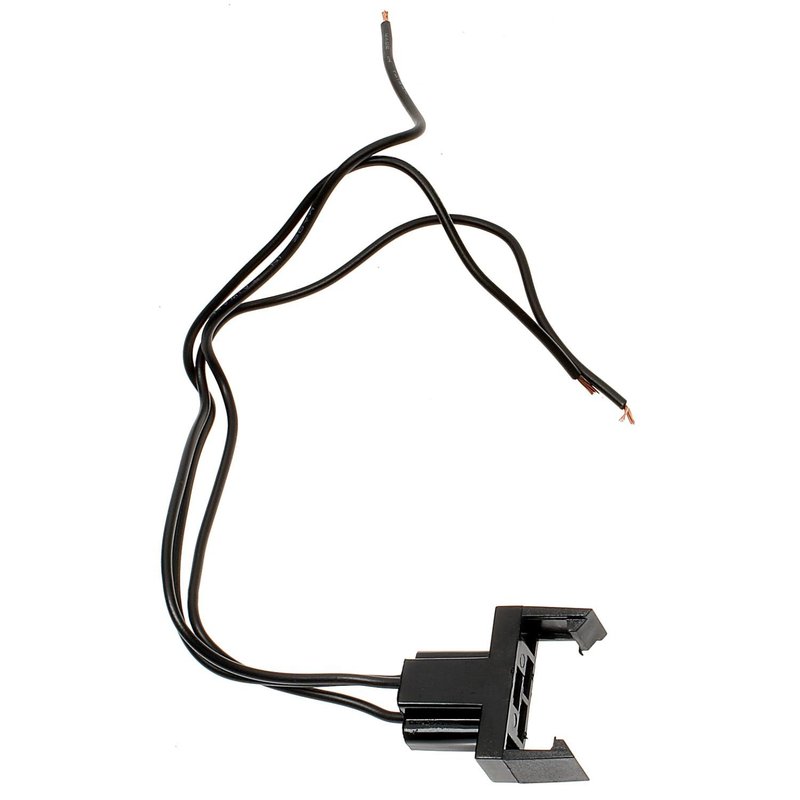

Handy Pack HP3920 Headlight Dimmer Switch Connector

Headlight Dimmer Switch Connector for GM Vehicles

The Handy Pack HP3920 is a headlight dimmer switch connector pigtail and socket assembly for repairing damaged electrical connections at the dimmer switch. It uses color-coded lead wires for straightforward splicing into the existing harness with common crimping tools.

Compatible With a wide range of Chevrolet, GMC, Jeep, Buick, Pontiac, Cadillac, Oldsmobile, Ford, Lincoln, Chrysler, and Mercury applications, this connector is built for direct repair work on broken or corroded switch wiring. The HP3920 part number is commonly searched for GM headlight dimmer switch connector replacement needs.

Key Features

• Headlight dimmer switch pigtail and socket assembly
• 3-terminal female connector design
• Color-coded lead wires for easier harness splicing
• Repairs broken, worn, or corroded electrical connections
• Fits many GM vehicles and select Jeep, Ford, Lincoln, Chrysler, and Mercury models
• Handy Pack HP3920 reference for catalog and search matching

Detailed Description

This connector is intended for service replacement where the original dimmer switch plug has heat damage, corrosion, cracked terminals, or intermittent contact. The lead wires are arranged to simplify integration into the vehicle wiring harness, making it a practical choice for restoring headlight dimmer switch function on classic trucks, vans, SUVs, and passenger cars. Applications include Chevrolet C10, K5 Blazer, Camaro, Corvette, and El Camino, along with many GMC, Jeep, and Ford models listed in the fitment data. The HP3920 is a focused electrical repair component for restoring a reliable connection at the switch.

Common Repair Uses

• Broken connector housing at the headlight dimmer switch
• Corroded or overheated terminals causing poor contact
• Intermittent high/low beam switching
• Damaged wiring at the floor-mounted or column-mounted dimmer switch area
• Restoring factory-style electrical continuity after connector failure

Installation Notes and Tips

Splice the color-coded leads into the existing harness using appropriate crimping tools and standard electrical repair practices. Verify terminal orientation and wire function before final connection, and confirm the replacement connector matches the vehicle’s locking-tab style and terminal count. For fitment-sensitive vehicles such as Chevrolet C10, GMC Jimmy, and Jeep CJ7, compare the original connector to the HP3920 before installation.

Quality Assurance

Handy Pack HP3920 is a service-grade electrical connector assembly built for repair use on listed applications. It is specified as a pigtail and socket assembly for dimmer switch connection repair, with 3 terminals and application coverage across many classic GM vehicles.
