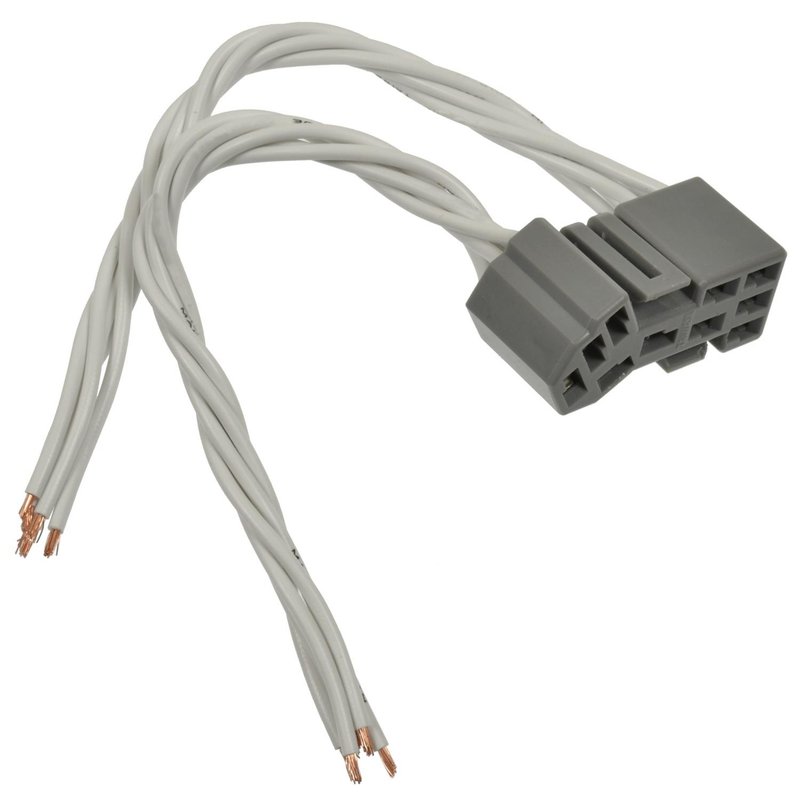

Handy Pack HP4135 Combination Switch Connector

Overview of Handy Pack Combination Switch Connector HP4135

The Handy Pack HP4135 Combination Switch Connector is designed for reliable electrical connections in various vehicle models including Ford, Chrysler, Dodge, and Nissan. This connector features a male connector gender and includes a pigtail assembly with 10 blade terminals, ensuring secure and efficient wiring for your vehicle's electrical system.

• Connector Gender: Male
• Connector Quantity: 1
• Contents: Pigtail assembly
• Terminal Gender: Female
• Terminal Quantity: 10
• Terminal Type: Blade terminals
• Wire Quantity: 10

Detailed Product Description

The Handy Pack HP4135 is a combination switch connector specifically engineered to support electrical, lighting, and body switch applications. It comes as a complete pigtail assembly with 10 wires and female blade terminals, designed to mate with a male connector. This configuration provides a dependable connection for various automotive electrical systems. The blade terminals facilitate easy and secure attachment, reducing the risk of loose connections or electrical faults.

This connector is compatible with a wide range of vehicles including Ford models such as F-150, Explorer, and Mustang; Chrysler and Dodge models like Ram 1500 and Dakota; as well as Nissan B2200 and Mazda B2500 trucks. Its design supports the electrical needs of these vehicles, making it a practical replacement part for worn or damaged connectors.

Common Applications and Issues Resolved

• Replacement for damaged or corroded combination switch connectors
• Restores proper electrical connectivity in lighting and body switch circuits
• Solves intermittent electrical faults caused by poor terminal contact
• Facilitates wiring repairs in Ford F-150, Dodge Ram, and Nissan B2500 models
• Ensures secure connections in multi-wire switch assemblies

Installation Notes and Tips

• Verify vehicle compatibility with the Handy Pack HP4135 before installation
• Ensure all terminals are properly seated and locked into the connector housing
• Use appropriate tools to avoid damaging blade terminals during installation
• Check wiring harness for any signs of wear or damage prior to connector replacement
• Follow vehicle manufacturer’s electrical system guidelines for safe installation

Quality Assurance and Warranty

The Handy Pack HP4135 Combination Switch Connector is manufactured to meet industry standards for automotive electrical components. It undergoes quality control inspections to ensure reliable performance and durability. While specific warranty details may vary, Handy Pack products typically come with a limited warranty against manufacturing defects. Consult product documentation or the supplier for exact warranty terms.
