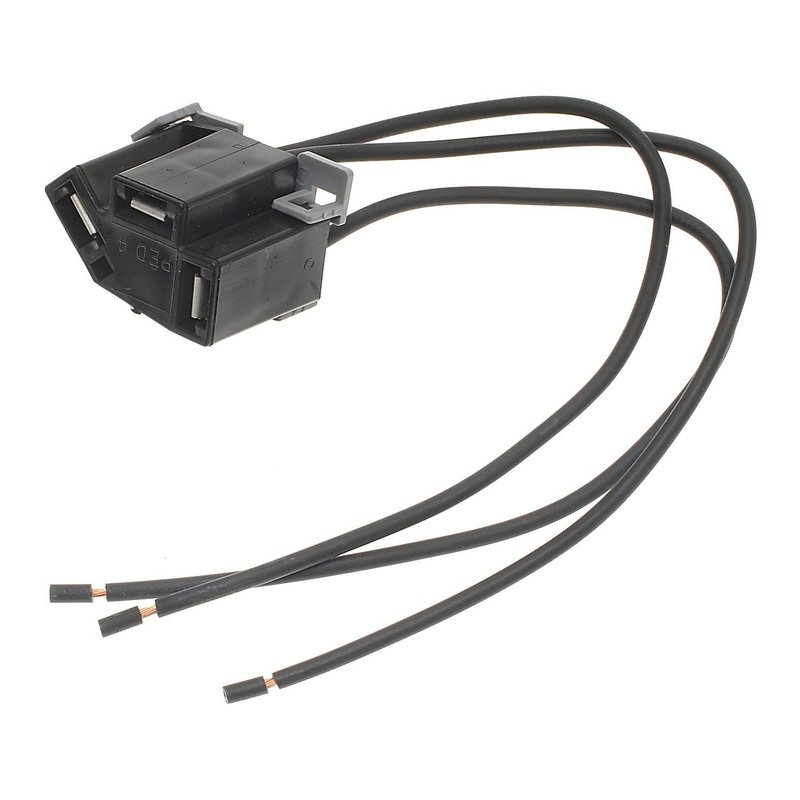

Handy Pack HP4330 Headlight Dimmer Switch Connector

Reliable Headlight Dimmer Switch Connector for Select Vehicles

The Handy Pack HP4330 headlight dimmer switch connector is designed to provide a secure and efficient electrical connection for your vehicle's lighting system. Engineered for compatibility with various Chevrolet, Dodge, Geo, Mercury, Mitsubishi, Pontiac, and Saturn models, this connector ensures consistent performance and durability.

• Connector Gender: Male for secure mating
• Connector Quantity: 1 connector per unit
• Trapezoidal connector shape for precise fit
• Terminal Gender: Female terminals for reliable contact
• Three blade-type terminals for stable electrical connection
• Three-wire configuration to support headlight dimmer switch functions

Product Details and Specifications

The Handy Pack HP4330 is a headlight dimmer switch connector featuring a trapezoidal male connector designed to mate with female blade terminals. It includes three female blade terminals, supporting a three-wire setup essential for headlight dimmer switch operation. This configuration ensures proper electrical flow and signal transmission within the lighting circuit. The connector is engineered to meet the electrical and mechanical requirements of multiple vehicle makes and models, including Chevrolet S10, Dodge Dakota, Geo Metro, Mercury Capri, Mitsubishi Eclipse, Pontiac Firebird, and Saturn SC series vehicles.

Compatible Vehicles and Applications

This headlight dimmer switch connector is compatible with a range of vehicles, specifically:

• Chevrolet S10
• Dodge Dakota
• Geo Metro
• Mercury Capri
• Mitsubishi Eclipse and 3000GT
• Pontiac Firebird
• Saturn SC, SC2, Shadow, Sprint, and Stealth

It is designed to replace worn or damaged connectors in the headlight dimmer switch circuit, restoring proper function and electrical integrity.

Common Issues Addressed by HP4330 Connector

• Intermittent or non-functioning headlight dimmer switch operation
• Corroded or damaged connector terminals causing poor electrical contact
• Loose or faulty wiring connections in the headlight circuit
• Electrical shorts or open circuits affecting headlight dimming
• Connector wear from age or environmental exposure

Installation Notes and Tips

When installing the Handy Pack HP4330 connector, ensure the mating surfaces are clean and free of corrosion. Verify the three-wire configuration matches the vehicle’s wiring harness to avoid miswiring. Use appropriate tools to secure blade terminals firmly without damaging the connector housing. Confirm proper fitment with the trapezoidal connector shape to prevent loose connections. Testing the headlight dimmer switch function after installation is recommended to ensure correct operation.

Quality Assurance and Warranty

Handy Pack manufactures the HP4330 connector to meet industry standards for electrical connectors used in automotive lighting systems. While specific warranty details are not provided, Handy Pack products are generally designed for durability and reliable performance in demanding automotive environments. For best results, use this connector as a direct replacement part compatible with the specified vehicle makes and models.
