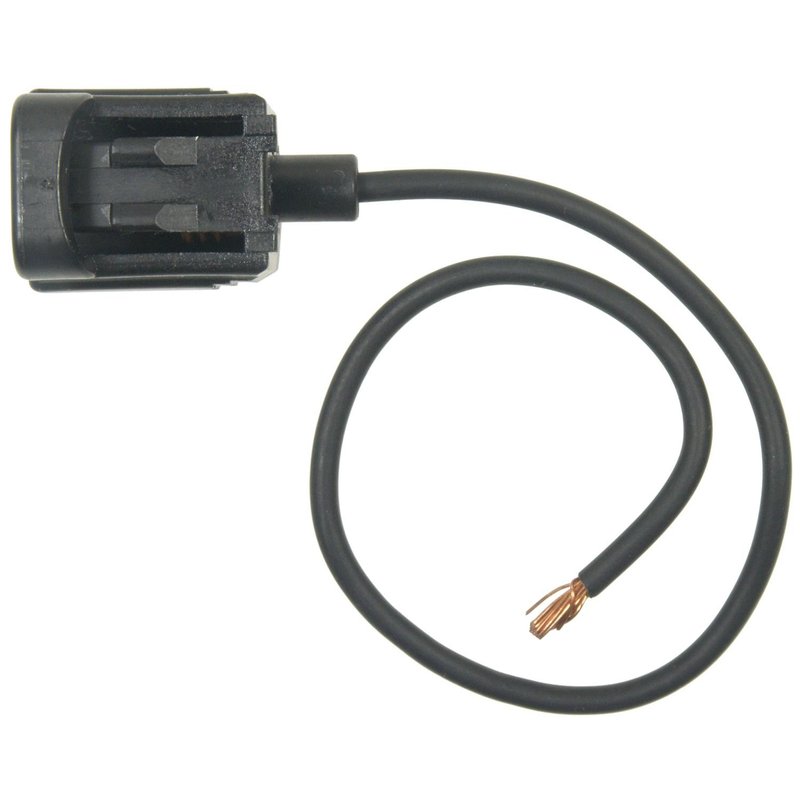

Handy Pack HP4345 Engine Variable Valve Timing (VVT) Oil Pressure Switch Connector

Overview of Handy Pack HP4345 VVT Oil Pressure Switch Connector

The Handy Pack HP4345 Engine Variable Valve Timing (VVT) Oil Pressure Switch Connector is designed for reliable electrical connections in VVT systems. Compatible with various Ford, Jaguar, Land Rover, Lincoln, Mazda, and Mercury models, this connector ensures consistent performance in critical engine functions.

• Connector Gender: Male
• Includes 1 pigtail assembly
• Harness length: 8 inches
• Terminal Gender: Female
• Terminal Type: Blade
• Single wire and terminal quantity

Product Features and Specifications

This VVT oil pressure switch connector features a male connector with a female blade terminal, providing a secure and precise fit. The 8-inch harness length offers flexibility during installation, while the single wire and terminal configuration simplify integration with the vehicle’s existing wiring harness. The pigtail assembly included allows for straightforward replacement or repair of the engine’s electrical connector related to the variable valve timing system.

Compatible Vehicles and Applications

The Handy Pack HP4345 is compatible with a wide range of vehicles, including Ford models such as F-150, Explorer, Mustang, and Taurus; Jaguar models like XE, XF, XJ8, and XJR; Land Rover Discovery Sport and Range Rover Evoque; Lincoln MKC, MKS, MKX, and MKZ; Mazda CX-7, CX-9, and MX-5 Miata; as well as Mercury Grand Marquis and Mountaineer. This connector is specifically designed for use in engine variable valve timing oil pressure switch circuits on these vehicles.

Common Issues Addressed by This Connector

• Intermittent or faulty VVT oil pressure switch signals
• Damaged or corroded electrical connectors causing engine performance issues
• Wiring harness wear leading to poor electrical contact
• Replacement of broken or worn pigtail assemblies
• Restoring proper communication between the VVT system and engine control module

Installation Notes and Tips

When installing the HP4345 connector, ensure the male connector aligns properly with the female blade terminal for a secure connection. The 8-inch harness length provides adequate reach for most engine compartments but verify clearance before final routing. Use dielectric grease on terminals to prevent corrosion and improve conductivity. Always disconnect the battery before installation to avoid electrical shorts.

Quality Assurance and Warranty

Handy Pack products are manufactured to meet OEM standards for fit and function. The HP4345 connector undergoes quality control inspections to ensure durability and reliable electrical performance. While specific warranty details may vary, Handy Pack typically offers limited warranties covering defects in materials and workmanship.
