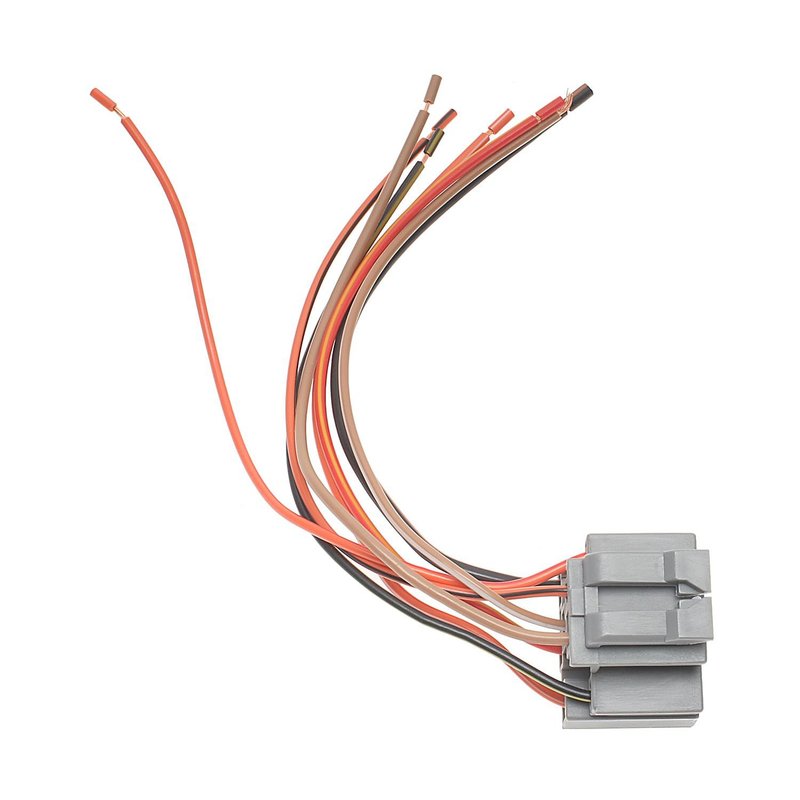

Handy Pack HP4510 Headlight Dimmer Switch Connector

Headlight Dimmer Switch Connector for Ford

The Handy Pack HP4510 is a pigtail and socket assembly for repairing damaged headlight switch wiring on select Ford, Mercury, and Lincoln vehicles. It provides an 8-terminal female blade connection with a 6 1/2-inch harness for clean splice-in repairs to broken or corroded connectors.

Use this headlight dimmer switch connector when the original plug has heat damage, corrosion, or broken terminals at the switch interface. The color-coded lead wires simplify harness repair with standard crimping tools.

Key Features

• Part number HP4510 headlight switch pigtail and socket assembly
• Male connector with female blade terminals
• 8-terminal, 8-wire design for switch harness repair
• 6 1/2-inch harness length for splice-in installation
• Color-coded lead wires for easier wire identification
• Repairs broken or corroded electrical connections at the headlight dimmer switch

Detailed Description

The Handy Pack HP4510 is built for restoring the headlight dimmer switch connection on vehicles such as the Ford Taurus, Ford Windstar, Mercury Sable, Lincoln Continental, and Lincoln Mark VII. It is a direct repair-style pigtail that lets you splice into the existing wiring harness and replace a failed connector without replacing the full harness. For technicians and DIY repairs, HP4510 supports a cleaner electrical repair where the original connector has deteriorated from age, heat, or moisture exposure.

This part cross-references common OE-style repair needs for Ford headlight switch connector service and is a practical choice when servicing Ford Taurus and Mercury Sable dimmer switch wiring. The HP4510 part number is also useful when searching for a replacement headlight switch pigtail for Ford applications.

What It Helps Repair

• Burned or heat-damaged headlight switch connector terminals
• Corroded wiring connections at the dimmer switch
• Broken or loose blade terminal contact
• Intermittent headlight switch electrical operation
• Damaged pigtail wiring at the dash switch harness

Installation Notes and Tips

• Splice the color-coded lead wires into the existing harness using appropriate crimping tools.
• Match each wire position carefully before cutting or removing the original connector.
• Inspect the switch and surrounding harness for heat damage before installing the new pigtail.
• Verify terminal alignment and secure all connections before testing headlight operation.
• Fits 1986-1995 Ford Taurus, N/A
• Fits 1995-1997 Ford Windstar, N/A
• Fits 1986-1995 Mercury Sable, N/A
• Fits 1988-1994 Lincoln Continental, N/A
• Fits 1990-1992 Lincoln Mark VII, N/A

Quality Assurance

Handy Pack HP4510 is a repair connector assembly intended for electrical restoration work on the listed Ford, Mercury, and Lincoln applications. Its 8-terminal blade design and color-coded leads support accurate harness repair for headlight dimmer switch service.
