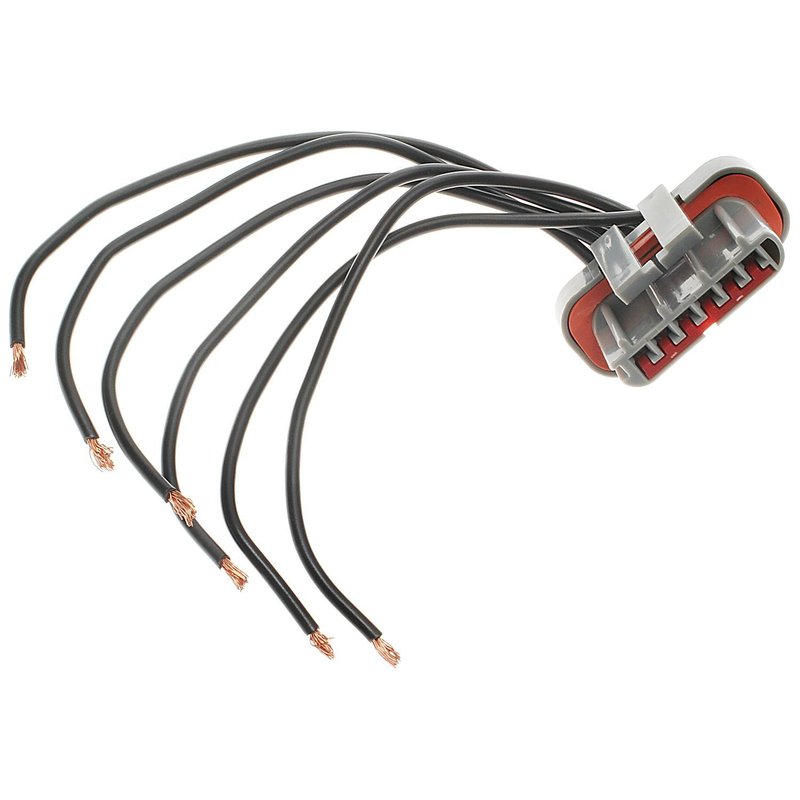

Handy Pack HP4530 Engine Control Module Harness Connector

Engine Control Module Connector for Ford and Volkswagen

The Handy Pack HP4530 is an engine control module harness connector pigtail and socket assembly for repairing damaged ignition module and ECM connections. It uses color-coded lead wires that can be spliced into the existing harness with standard crimping tools, making it a practical solution for broken or corroded terminals.

Compatible with a wide range of Ford, Lincoln, Mercury, Mazda, and Volkswagen applications, this connector is built for direct electrical repair work on vehicles such as Ford F-150, Ford F-250 Super Duty, and Volkswagen Beetle platforms. The HP4530 is a focused replacement for 6-terminal connector applications where the original plug has failed.

• Male connector with female pin socket terminals
• 6 1/2-inch harness length for repair splicing
• 6-wire, 6-terminal design
• Color-coded leads simplify harness identification
• Repairs broken, worn, or corroded electrical connections

Detailed Product Overview

Handy Pack HP4530 is an engine control module harness connector designed as a pigtail and socket assembly for ignition module and ECM wiring repairs. The connector layout uses a male housing with female pin socket terminals, giving technicians a straightforward way to restore continuity at the module connection point. This part number, HP4530, is listed for numerous Ford truck, van, car, and SUV applications, along with select Volkswagen and Mazda models that use a 6-terminal configuration.

Fits 1999-2016 Ford F-250 Super Duty, N/A; Fits 2023-2024 Ford F-350 Super Duty, N/A; Fits 2004-2006 Volkswagen Beetle, N/A; Fits 2002-2006 Volkswagen Golf, N/A; Fits 2002-2005 Volkswagen Jetta, N/A. This part cross-references common ignition module pigtail applications for the same style of repair.

Common Repair Uses

• Restoring a damaged ECM or ignition module connector
• Repairing heat-damaged or corroded wiring at the plug
• Fixing intermittent electrical contact caused by worn terminals
• Replacing brittle connector ends on older Ford and Volkswagen vehicles
• Addressing harness-side failures without replacing the full wiring harness

Installation Notes and Tips

Splice the color-coded lead wires into the existing harness using appropriate crimping tools and verified wiring procedures. Confirm terminal orientation, wire routing, and pinout before final assembly, especially on Ford EEC IV, distributor-mounted module, and 6-port applications. Verify the connector style against the vehicle’s original ECM or ignition module plug before installation.

Quality Assurance

Handy Pack HP4530 is built as a repair connector assembly for electrical service work on confirmed fitment applications. Its pigtail format and socket-terminal design support clean connector replacement when the original plug is broken, corroded, or no longer making reliable contact.
