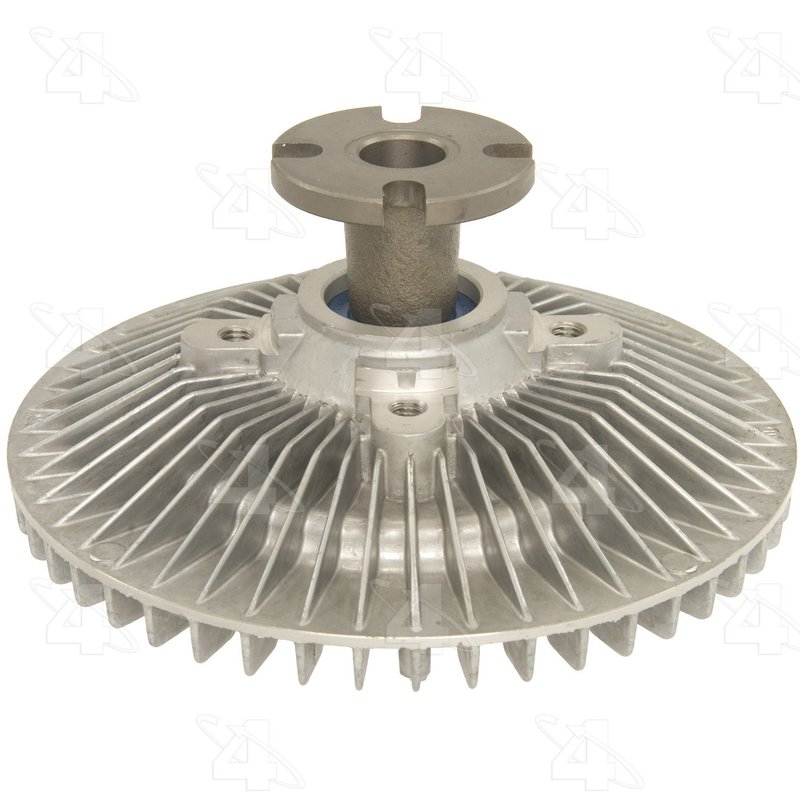

Hayden 1710 Engine Cooling Fan Clutch

Overview of Hayden Fan Clutch 1710

The Hayden Fan Clutch 1710 is engineered for reliable engine cooling performance in a range of classic and modern vehicles. Designed with durable aluminum construction, this non-thermal engine cooling fan clutch is compatible with several Buick, Chevrolet, Ford, Lincoln, and Mercury models, including the Camaro, Mustang, Bronco, and E-150 Econoline.

• Material: Aluminum for lightweight durability
• Non-thermal clutch type with standard and reverse rotation
• 4 bolt holes and 4 mounting holes with 5/16-18 bolt thread
• Maximum clutch diameter of 7.2 inches and flange mounting type
• Compatible with multiple makes and models including Chevrolet Impala and Ford F-150

Hayden Fan Clutch Product Line Details

The Hayden Fan Clutch product line focuses on engine cooling fan clutches designed to meet or exceed OEM specifications. This line includes both thermal and non-thermal clutches, with the 1710 model representing a non-thermal, standard duty option. The fan clutches in this line are performance rated and built to provide consistent cooling efficiency for a variety of vehicle applications.

Detailed Product Description

The Hayden Fan Clutch 1710 features a raw aluminum finish and a flange mounting type with a 1.75-inch distance from clutch to mounting flange. It has a clutch maximum diameter of 7.2 inches and an overall height of 3.31 inches (84.1 mm). The clutch supports both standard and reverse rotation, making it versatile for different engine configurations. This non-electronic, non-thermal clutch is designed for standard duty use and includes a 4-bolt mounting pattern with a 3-inch (76.2 mm) fan bolt circle diameter. The mounting diameter measures 2.33 inches (59 mm), and the pilot depth is 0.75 inches (19.1 mm) with a pilot diameter of 0.63 inches.

Common Applications and Issues Addressed

• Replacement for worn or failing fan clutches in Buick Skylark and Chevrolet Caprice
• Improves engine cooling efficiency in Ford F-250 and Lincoln Continental
• Resolves overheating issues caused by clutch slippage or failure
• Restores proper fan engagement in Mercury Marquis and Mustang models
• Compatible upgrade for cooling systems in Chevrolet Corvette and Ford Bronco

Installation Notes and Tips

Installation requires removal of the existing fan clutch and proper alignment of the 4-bolt flange mounting. Ensure bolts match the 5/16-18 thread specification. Mounting hardware is not included, so use OEM or equivalent bolts. Verify clutch rotation direction (standard or reverse) matches vehicle requirements. Check clearance for the 7.2-inch clutch diameter and 3-inch fan bolt circle to ensure proper fitment.

Quality Assurance and Warranty

The Hayden Fan Clutch 1710 is a new, performance-rated part that meets or exceeds OEM standards for durability and function. Manufactured from aluminum, it offers corrosion resistance and long service life. While specific warranty details are not provided, Hayden products typically adhere to industry quality controls to ensure reliable operation in compatible Buick, Chevrolet, Ford, Lincoln, and Mercury vehicles.
