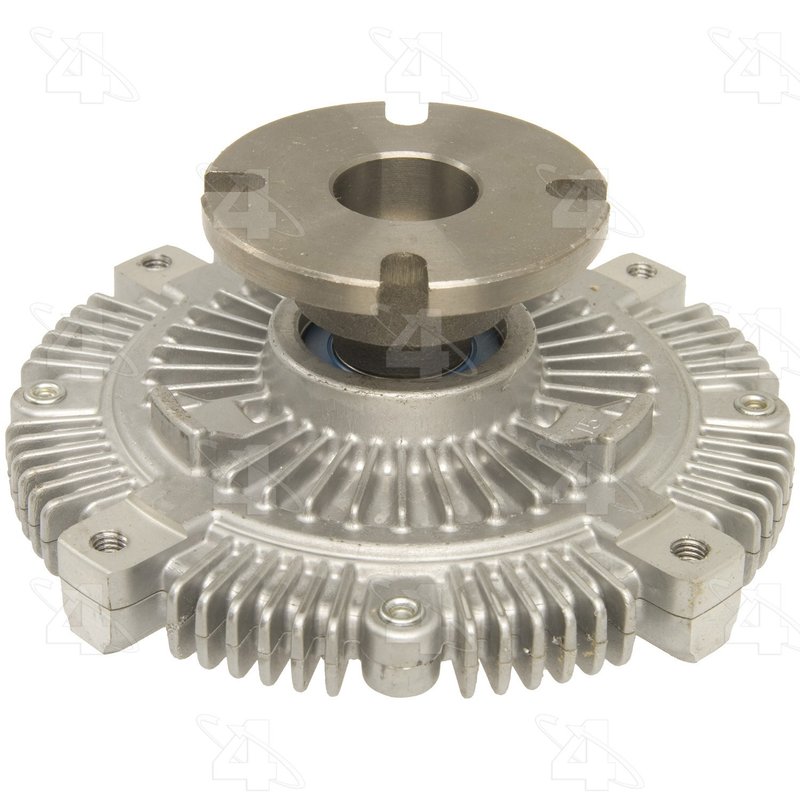

Hayden 2562 Engine Cooling Fan Clutch
| Brand | Hayden 2562 |
|---|---|
| Bolt Hole Quantity | 4 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 5.59 |
| Clutch Type | A - 5" & 6" Import |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Dia. IN | 5.59 |
| Distance From Clutch To Mounting Flange | 1.59 |
| Distance From Clutch To Mounting Flange | 1.6 |
| Electronic Clutch? | Non Electronic |
| Fan Bolt Circle IN | 5.11 |
| Fan Bolt Circle MM | 129.8 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 2.68 |
| Mount Dia. MM | 68 |
| Mounting Hardware? | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 142 |
| Overall Height IN | 2.73 |
| Overall Height MM | 69.3 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.55 |
| Pilot Depth MM | 14 |
| Pilot Dia. IN | .63 |
| Rotation | STD |
| Style | Standard Duty |
| Type | Thermal |
| Use Type | Standard |
| Product line | Fan Clutch |
| Fits | Mazda · 12 vehicles |
OE-spec replacement. Meets or exceeds OEM requirements for a direct-fit repair.
Thermal operation. Responds to temperature changes for efficient fan control.
Aluminum construction. Lightweight material with a raw aluminum finish.
Cross-references Atlantic Automotive Engineering 5577, Four Seasons 36906 and Gates 22096 for the same application. See all 36.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hayden 2562 Fan Clutch for Mazda B2000 and B2200
Hayden Fan Clutch 2562 is a thermal, standard-duty engine cooling fan clutch built for import applications that need controlled fan engagement and consistent cooling performance. It is a non-electronic, flange-mount aluminum unit with a 5.59-inch maximum diameter and OEM-style dimensions for direct replacement service.
Key Features
- Thermal, standard-duty fan clutch for engine cooling control
- Aluminum construction with raw aluminum finish
- Non-electronic design with standard rotation
- Flange mounting style with 4 bolt holes and M6 x 1.0 hole thread
- 5.59-inch clutch diameter, 2.68-inch mount diameter, and 5.11-inch fan bolt circle
- Meets or exceeds OEM requirements and is performance rated
- New part for Mazda B2000 and Mazda B2200 cooling system service
Detailed Description
Hayden 2562 is part of the Hayden Fan Clutch line, a product line focused on replacement cooling components for vehicles that use thermal fan clutch operation. This unit is built for standard-duty service and uses a thermal response to regulate fan engagement based on operating temperature. For Mazda B2000 and Mazda B2200 applications, Hayden 2562 provides the correct flange-mount layout, pilot dimensions, and bolt pattern needed for a proper cooling fan clutch replacement. This part cross-references Four Seasons 36906 and Gates 22096 for the same application.
Compatible With 1982-1984 Mazda B2000, N/A; 1986-1987 Mazda B2000, N/A; and 1987-1993 Mazda B2200, N/A. Hayden 2562 is a direct-fit cooling service part for these Mazda truck applications when the vehicle calls for a thermal engine cooling fan clutch with standard rotation.
Common Cooling Issues It May Address
- Fan clutch that no longer engages at the proper temperature
- Reduced airflow through the radiator at idle or low speed
- Cooling fan noise caused by worn clutch operation
- Engine temperature fluctuation during stop-and-go driving
- Cooling system service on Mazda B2000 and B2200 trucks
Installation Notes and Tips
Verify the fan bolt circle, mount diameter, pilot depth, and rotation before installation. This unit uses a flange mount and does not include mounting hardware. Confirm the vehicle’s cooling fan clutch specification against the original part number and inspect the fan, water pump area, and surrounding cooling components during replacement.
Quality Assurance
Hayden 2562 is a new, performance-rated fan clutch that meets or exceeds OEM requirements. Its thermal, standard-duty design and OE-style dimensions support accurate replacement service for the listed Mazda applications.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1993 | Mazda | B2200 | Manual | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1992 | Mazda | B2200 | Manual | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1991 | Mazda | B2200 | Manual | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1990 | Mazda | B2200 | Manual | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1989 | Mazda | B2200 | Manual | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1988 | Mazda | B2200 | Manual | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1987 | Mazda | B2000 | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1987 | Mazda | B2200 | Manual | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1986 | Mazda | B2000 | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1984 | Mazda | B2000 | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1983 | Mazda | B2000 | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1982 | Mazda | B2000 | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
