Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

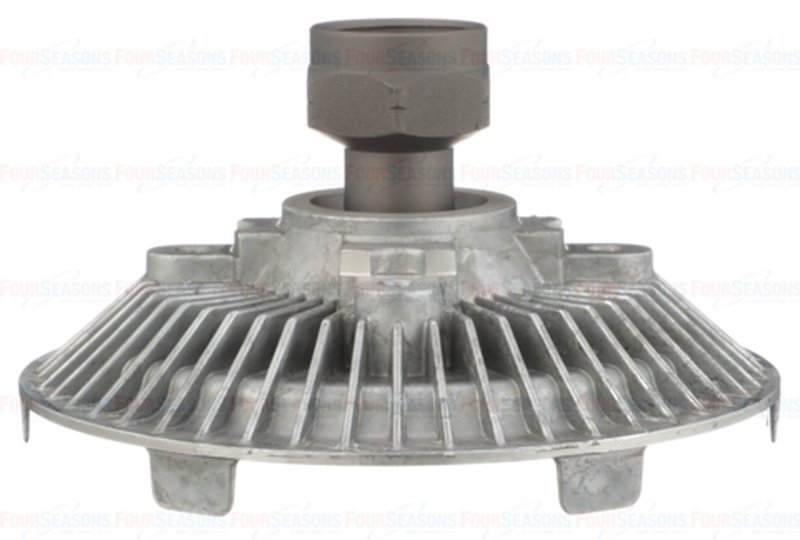

Hayden 2614 Engine Cooling Fan Clutch
| Brand | Hayden 2614 |
|---|---|
| Bolt Hole Quantity | 4 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 5.99 |
| Clutch Type | B - Non-Thermal & Std Thermal |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Dia. IN | 5.99 |
| Distance From Clutch To Mounting Flange | 1.75 |
| Electronic Clutch? | Non Electronic |
| Fan Bolt Circle IN | 3.25 |
| Fan Bolt Circle MM | 82.6 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 1.44 |
| Mount Dia. MM | 36 |
| Mounting Hardware? | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | HEX |
| New or Reman | New |
| Overall Dia. MM | 152.1 |
| Overall Height IN | 3.34 |
| Overall Height MM | 85.1 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.7 |
| Pilot Depth MM | 17.8 |
| Pilot Dia. IN | 1.18 |
| Pilot Dia. MM | 30 |
| Rotation | STD |
| Style | Standard Duty |
| Type | Thermal |
| Use Type | Standard |
| Product line | Fan Clutch |
| Fits | Ford · 17 vehicles |
OE-grade replacement. Meets or exceeds OEM requirements for dependable cooling performance.
Aluminum construction. Lightweight material with a raw finish for a clean, durable look.
Standard duty design. Built as a thermal fan clutch for consistent engine cooling control.
Cross-references AMS Automotive 4860, Atlantic Automotive Engineering 5590 and CSF 2614 for the same application. See all 47.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hayden 2614 Fan Clutch Overview
The Hayden 2614 fan clutch is a standard-duty thermal engine cooling fan clutch built with an aluminum body and a standard rotation layout. It is a non-electronic replacement that meets or exceeds OEM requirements and is performance rated for direct-fit cooling system service.
Compatible with Ford Ranger and Ford Bronco II applications, this Hayden Fan Clutch line part number 2614 is built for vehicles that use a thermal clutch with a hex mounting type and 4-bolt fan attachment pattern.
Key Features
- Brand: Hayden Fan Clutch
- Part number: 2614
- Standard-duty thermal clutch design
- Aluminum construction with raw aluminum finish
- Standard rotation (STD)
- Non-electronic design
- 4-bolt / 4-hole mounting pattern
- Meets or exceeds OEM specifications
- Performance rated
- Mounting hardware not included
Product Details
The Hayden 2614 is a thermal engine cooling fan clutch designed to regulate fan engagement in standard cooling system applications. It features a 5.99-inch maximum clutch diameter, 3.34-inch overall height, 1.44-inch mount diameter, and a 3.25-inch fan bolt circle. The unit uses an M6 x 1.0 hole thread pattern and a hex mounting type for the fan connection.
This part cross-references Four Seasons 36968 and Gates 21060 for the same application. It is a direct replacement option for Ford Ranger and Ford Bronco II cooling system service where the original clutch uses standard rotation and thermal operation.
Vehicle Fitment
- Fits 1986-1992 Ford Ranger, N/A β Standard Rotation; Standard Duty Thermal Fan Clutch; w/ AC; Fan Clutch
- Fits 1984-1990 Ford Bronco II, N/A β Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch
- Fits 1983-1985 Ford Ranger, N/A β Standard Duty Thermal Fan Clutch for vehicles without AC, rotates in the standard direction.; Fan Clutch
Common Uses
- Restoring proper engine cooling fan engagement
- Replacing a worn or slipping thermal fan clutch
- Addressing overheating concerns at idle or low speed
- Correcting fan noise caused by clutch wear
- Maintaining cooling performance on Ford Ranger and Ford Bronco II applications
Installation Notes
Verify the fan bolt circle, mount diameter, pilot dimensions, and rotation before installation. This Hayden 2614 uses a 4-bolt mounting pattern and standard rotation, so matching the original clutch specifications is important for proper fitment and operation. Mounting hardware is not included.
Quality Assurance
Hayden identifies this fan clutch as meeting or exceeding OEM requirements and performance rated for standard-duty cooling service. The Hayden Fan Clutch 2614 is a new replacement part built for direct-fit engine cooling applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1992 | Ford | Ranger | 2.9L | V6 | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; w/ AC; Fan Clutch |
| 1991 | Ford | Ranger | 2.9L | V6 | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; w/ AC; Fan Clutch |
| 1990 | Ford | Bronco II | — | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1990 | Ford | Ranger | 2.9L | V6 | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; w/ AC; Fan Clutch |
| 1989 | Ford | Bronco II | — | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1989 | Ford | Ranger | 2.9L | V6 | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; w/ AC; Fan Clutch |
| 1988 | Ford | Bronco II | — | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1988 | Ford | Ranger | 2.9L | V6 | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; w/ AC; Fan Clutch |
| 1987 | Ford | Bronco II | — | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1987 | Ford | Ranger | 2.9L | V6 | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; w/ AC; Fan Clutch |
| 1986 | Ford | Bronco II | 2.9L | V6 | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1986 | Ford | Ranger | 2.9L | V6 | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; w/ AC; Fan Clutch |
| 1985 | Ford | Bronco II | 2.8L | V6 | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1985 | Ford | Ranger | 2.8L | V6 | N/A | Standard Duty Thermal Fan Clutch for vehicles without AC, rotates in the standard direction.; Fan Clutch |
| 1984 | Ford | Bronco II | — | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1984 | Ford | Ranger | 2.8L | V6 | N/A | Standard Duty Thermal Fan Clutch for vehicles without AC, rotates in the standard direction.; Fan Clutch |
| 1983 | Ford | Ranger | 2.8L | V6 | N/A | Standard Duty Thermal Fan Clutch for vehicles without AC, rotates in the standard direction.; Fan Clutch |
