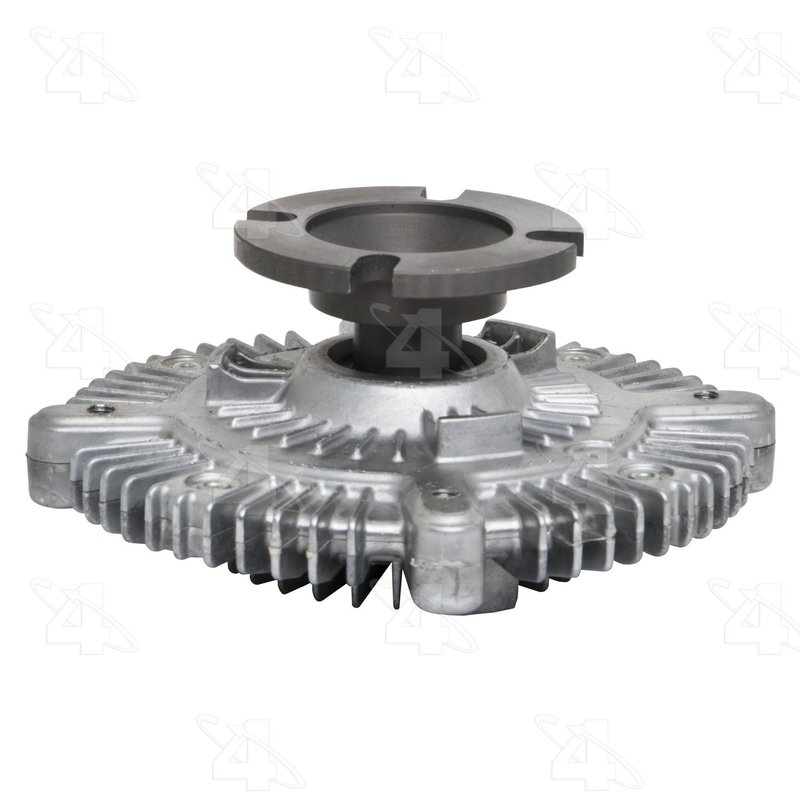

Hayden 2653 Engine Cooling Fan Clutch

Hayden 2653 Thermal Fan Clutch Overview

Hayden Fan Clutch 2653 is a new standard-duty thermal engine cooling fan clutch built with an aluminum body and non-electronic operation. It uses a flange mount and a 4-bolt pattern to support proper fan engagement in select import and domestic applications, including Toyota Cressida, Toyota Supra, Toyota Celica, Buick Roadmaster, and Chevrolet Caprice.

As part of the Hayden Fan Clutch line, this unit is engineered as a direct-fit thermal replacement for vehicles that rely on temperature-based fan control. Hayden 2653 meets or exceeds OEM requirements and is performance rated for standard-duty cooling service.

Key Features

• Thermal, non-electronic fan clutch for engine cooling control
• Standard-duty use type for everyday cooling system service
• Aluminum construction with raw aluminum finish
• Flange mounting style with 4 bolt holes and M6 x 1.0 hole thread
• 6.65 in. clutch maximum diameter and 3.02 in. overall height
• 5.35 in. fan bolt circle for supported fan assemblies
• Meets or exceeds OEM specifications
• New, performance-rated replacement part

Detailed Product Description

Hayden 2653 is a thermal engine cooling fan clutch designed to regulate fan speed based on operating temperature. The standard rotation, standard-duty design, and 2.44 in. distance from clutch to mounting flange help maintain the correct fan-to-clutch relationship in supported applications. With a 3.07 in. mount diameter, 0.91 in. pilot depth, and 0.63 in. pilot diameter, this fan clutch is built for precise fitment where the original equipment uses an A - 5" & 6" import-style clutch configuration.

Use Hayden 2653 when replacing a worn fan clutch on vehicles such as 1979-1986 Toyota Celica, 1978-1992 Toyota Cressida, 1986-1992 Toyota Supra, 1991-1993 Buick Roadmaster, or 1990 Chevrolet Caprice. This part cross-references Four Seasons 36922 and Gates 22077 for the same application.

What This Fan Clutch Helps Address

• Engine overheating caused by a weak or slipping fan clutch
• Excessive fan noise from a clutch that no longer engages correctly
• Reduced cooling performance at idle or low vehicle speed
• Inconsistent fan operation from thermal clutch wear
• Fitment issues when replacing an original standard-duty thermal unit

Installation Notes and Tips

Confirm the original clutch uses a flange mount, 4-bolt pattern, and standard rotation before installation. Verify fan bolt circle, mount diameter, pilot dimensions, and overall height against the removed part to ensure proper alignment. Mounting hardware is not included, so reuse or source the correct hardware separately if needed. Always inspect the fan blades, water pump area, and surrounding cooling components during replacement.

Quality Assurance

Hayden 2653 is a new replacement fan clutch that meets or exceeds OEM specifications and is performance rated for standard-duty cooling applications. It is built for confirmed fitment across select Toyota, Buick, and Chevrolet models listed above, including long-tail applications such as a thermal engine cooling fan clutch for 1986-1992 Toyota Supra and 1978-1992 Toyota Cressida.
