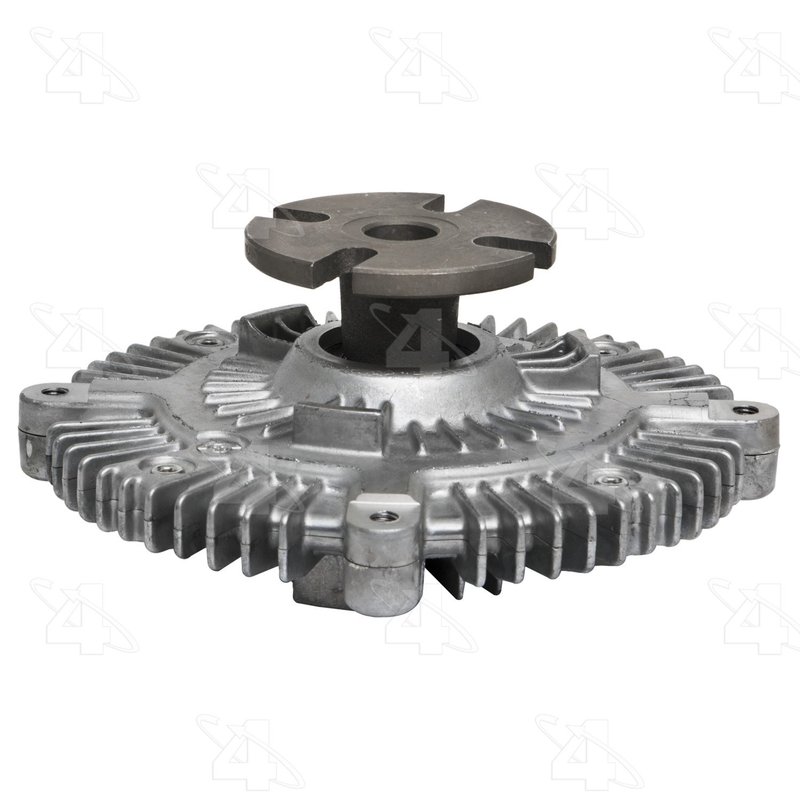

Hayden 2658 Engine Cooling Fan Clutch
| Brand | Hayden 2658 |
|---|---|
| Bolt Hole Quantity | 4 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 6.65 |
| Clutch Type | A - 5" & 6" Import |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Dia. IN | 6.65 |
| Distance From Clutch To Mounting Flange | 2.29 |
| Electronic Clutch? | Non Electronic |
| Fan Bolt Circle IN | 6.03 |
| Fan Bolt Circle MM | 153.2 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 2.7 |
| Mount Dia. MM | 69 |
| Mounting Hardware? | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 168.9 |
| Overall Height IN | 2.86 |
| Overall Height MM | 72.6 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.7 |
| Pilot Depth MM | 17.8 |
| Pilot Dia. IN | 0.63 |
| Rotation | REV |
| Style | Standard Duty |
| Type | Thermal |
| Use Type | Standard |
| Product line | Fan Clutch |
| Fits | Isuzu · 9 vehicles |
OE direct replacement. Meets or exceeds OEM requirements for dependable cooling performance.
Thermal, standard-duty design. Responds to temperature changes for efficient fan control.
Aluminum construction. Lightweight, corrosion-resistant fan clutch with a raw aluminum finish.
Cross-references Anchor 2658, Four Seasons 36932 and US Motor Works 22175 for the same application. See all 31.
Engine Cooling Fan Clutch for Isuzu Applications
Hayden 2658 is a standard-duty thermal engine cooling fan clutch built with an aluminum body and reverse rotation operation. It is a non-electronic, flange-mount replacement that meets or exceeds OEM requirements for the listed Isuzu Pickup, Rodeo, and Trooper applications.
Use Hayden Fan Clutch 2658 when you need a direct-fit cooling fan clutch for 1989-1994 Isuzu models with reverse rotation thermal fan clutch specifications. This part is engineered for standard-duty service and is performance rated for dependable fan engagement control.
Key Features
- Thermal fan clutch with non-electronic operation
- Standard-duty design for everyday cooling system service
- Aluminum construction with raw aluminum finish
- Flange mounting style with 4 bolt holes and 4 mounting holes
- Reverse rotation application
- Meets or exceeds OEM requirements
- Performance rated replacement fan clutch
- Compatible with 5" and 6" import-style clutch applications
Product Details
Hayden 2658 is a thermal engine cooling fan clutch designed around the listed dimensions and mounting pattern, including a 6.65-inch maximum diameter, 2.86-inch overall height, 2.7-inch mount diameter, and 6.03-inch fan bolt circle. The unit uses an M6 x 1.0 hole thread pattern and a 0.63-inch pilot diameter with 0.7-inch pilot depth. For buyers searching for a Hayden 2658 fan clutch, this part provides a direct replacement option for reverse rotation cooling systems on Isuzu Pickup, Isuzu Rodeo, and Isuzu Trooper models.
This part cross-references Four Seasons 36932 for the same application.
Common Problems This Part Can Address
- Cooling fan not engaging at the proper temperature
- Excessive engine temperature during idle or low-speed driving
- Fan clutch noise caused by worn internal thermal components
- Reduced airflow through the radiator and condenser
- Cooling system performance loss on reverse rotation fan setups
Installation Notes and Tips
Confirm reverse rotation, flange mounting, bolt pattern, and pilot dimensions before installation. Verify the fan clutch matches the vehicle’s existing cooling fan configuration and inspect the fan blades, water pump area, and surrounding hardware for wear or damage during service. Mounting hardware is not included.
Compatible With 1991-1994 Isuzu Pickup, N/A; 1991-1992 Isuzu Rodeo, N/A; and 1989-1991 Isuzu Trooper, N/A. Search terms such as Hayden 2658 fan clutch, Isuzu Pickup fan clutch, and Isuzu Trooper thermal fan clutch align with this application.
Quality Assurance
Hayden 2658 is a new replacement part that meets or exceeds OEM specifications and is performance rated for the listed applications. Hayden’s Fan Clutch line focuses on replacement cooling components built for standard-duty service in vehicle cooling systems.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1994 | Isuzu | Pickup | 3.1L | V6 | N/A | Standard duty reverse rotation thermal fan clutch.; Fan Clutch |
| 1993 | Isuzu | Pickup | 3.1L | V6 | N/A | Standard duty reverse rotation thermal fan clutch.; Fan Clutch |
| 1992 | Isuzu | Pickup | 3.1L | V6 | N/A | Standard duty reverse rotation thermal fan clutch.; Fan Clutch |
| 1992 | Isuzu | Rodeo | 3.1L | V6 | N/A | Standard duty reverse rotation thermal fan clutch.; Fan Clutch |
| 1991 | Isuzu | Pickup | 3.1L | V6 | N/A | Standard duty reverse rotation thermal fan clutch.; Fan Clutch |
| 1991 | Isuzu | Rodeo | 3.1L | V6 | N/A | Standard duty reverse rotation thermal fan clutch.; Fan Clutch |
| 1991 | Isuzu | Trooper | 2.8L | V6 | N/A | Standard duty reverse rotation thermal fan clutch.; Fan Clutch |
| 1990 | Isuzu | Trooper | 2.8L | V6 | N/A | Standard duty reverse rotation thermal fan clutch.; Fan Clutch |
| 1989 | Isuzu | Trooper | 2.8L | V6 | N/A | Standard duty reverse rotation thermal fan clutch.; Fan Clutch |
