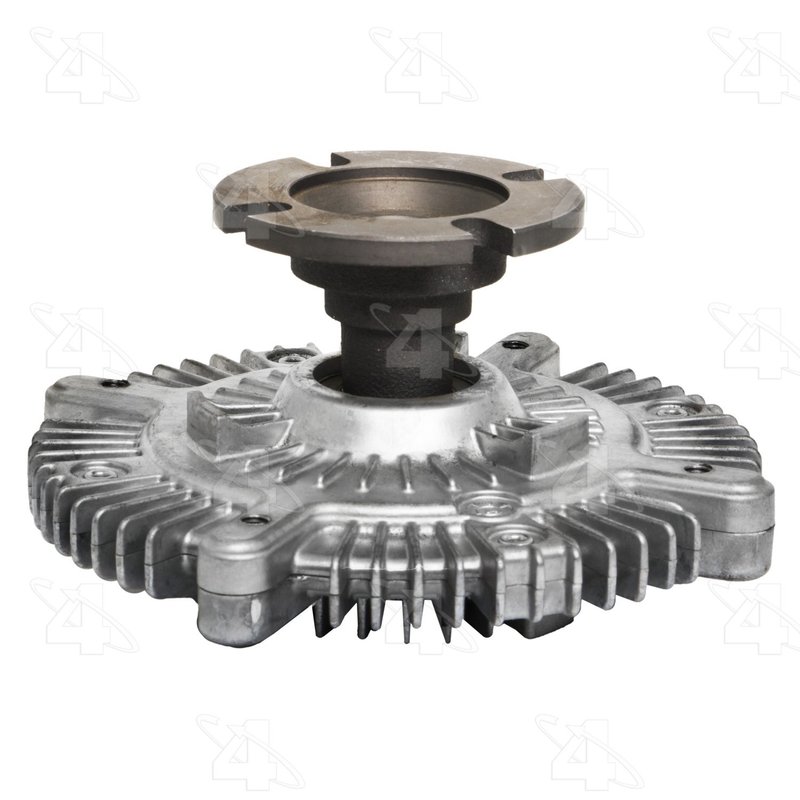

Hayden 2661 Engine Cooling Fan Clutch
| Brand | Hayden 2661 |
|---|---|
| Bolt Hole Quantity | 4 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 6.65 |
| Clutch Type | A - 5" & 6" Import |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Dia. IN | 6.65 |
| Distance From Clutch To Mounting Flange | 2.86 |
| Electronic Clutch? | Non Electronic |
| Fan Bolt Circle IN | 5.35 |
| Fan Bolt Circle MM | 135.9 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 3.07 |
| Mount Dia. MM | 78 |
| Mounting Hardware? | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 168.9 |
| Overall Height IN | 3.42 |
| Overall Height MM | 86.9 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.83 |
| Pilot Depth MM | 21.1 |
| Pilot Dia. IN | .87 |
| Rotation | STD |
| Style | Standard Duty |
| Type | Thermal |
| Use Type | Standard |
| Product line | Fan Clutch |
| Fits | Lexus and Toyota · 7 vehicles |
Thermal clutch. Responds to temperature changes for efficient fan control.
Standard duty. Built for everyday cooling system service.
Aluminum construction. Lightweight design with a raw aluminum finish.
Cross-references AMS Automotive 4874, Anchor 2661 and Four Seasons 36935 for the same application. See all 36.
Hayden 2661 Fan Clutch for Toyota and Lexus
The Hayden 2661 is a thermal engine cooling fan clutch built for standard-duty operation in select Toyota and Lexus applications. It uses an aluminum construction, non-electronic design, and flange mounting to support consistent fan engagement in the cooling system.
Compatible with 1993-1997 Toyota Land Cruiser and 1996-1997 Lexus LX450, this Hayden Fan Clutch 2661 is a direct-fit cooling component for import truck and SUV applications that use a 5-inch and 6-inch import-style clutch layout.
Key Features
- Thermal, non-electronic fan clutch for mechanical cooling fan control
- Standard-duty style for everyday engine cooling operation
- Aluminum construction with raw aluminum finish
- Flange mount design with 4 bolt holes and 4 mounting holes
- Fan bolt circle: 5.35 in. / 135.9 mm
- Mount diameter: 3.07 in. / 78 mm
- Overall diameter: 6.65 in. / 168.9 mm
- Meets or exceeds OEM requirements
- Performance rated
Product Details
Hayden Fan Clutch 2661 is engineered as a thermal clutch for import cooling systems that rely on mechanical fan engagement rather than electronic control. The aluminum body, standard rotation, and 2.86-inch distance from clutch to mounting flange help match the original cooling fan setup on the listed Toyota Land Cruiser and Lexus LX450 applications. This part cross-references Four Seasons 36935 and Gates 22074 for the same application.
Common Cooling Issues It May Address
- Engine temperature rise at idle or low vehicle speed
- Reduced fan engagement from a worn thermal clutch
- Cooling fan noise caused by clutch wear or internal drag
- Inconsistent airflow through the radiator and condenser
- Cooling system performance loss on Toyota Land Cruiser and Lexus LX450 models
Installation Notes and Tips
Verify the fan bolt circle, mount diameter, bolt thread, and overall height before installation. This Hayden 2661 uses an M6 x 1.0 hole pattern and a 4-bolt flange mount, and mounting hardware is not included. Confirm standard rotation and thermal clutch style against the original part to ensure proper fitment on 1993-1997 Toyota Land Cruiser and 1996-1997 Lexus LX450 applications.
Quality Assurance
Hayden Fan Clutch products are built for replacement use in cooling system service and this part is listed as new and performance rated. The 2661 is specified to meet or exceed OEM requirements for the covered Toyota and Lexus applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1997 | Lexus | LX450 | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1997 | Toyota | Land Cruiser | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1996 | Lexus | LX450 | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1996 | Toyota | Land Cruiser | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1995 | Toyota | Land Cruiser | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1994 | Toyota | Land Cruiser | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1993 | Toyota | Land Cruiser | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
