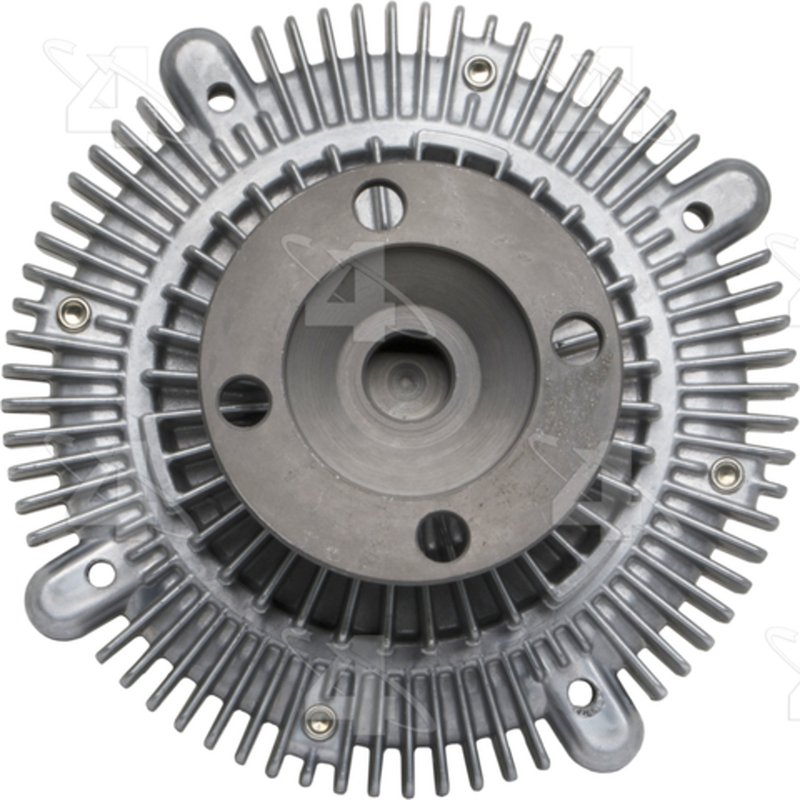

Hayden 2663 Engine Cooling Fan Clutch

Overview of Hayden Fan Clutch 2663

The Hayden Fan Clutch 2663 is designed for reliable engine cooling in select Honda and Isuzu vehicles. Engineered with durable aluminum, this standard duty fan clutch ensures consistent performance for models like the Honda Passport and Isuzu Rodeo Sport.

• Constructed from raw aluminum for durability
• Standard duty clutch type suitable for 5" and 6" import fans
• Flange mounting with 4 bolt holes (M6 x 1.0 thread)
• Maximum clutch diameter of 6.65 inches
• Non-electronic, performance-rated design
• Compatible with Honda Amigo, Axiom, Passport and Isuzu Rodeo, Rodeo Sport

Hayden Fan Clutch Product Line Details

The Hayden Fan Clutch line focuses on engine cooling fan clutches that meet or exceed OEM specifications. This product line emphasizes standard duty clutches designed for import vehicles, providing reliable thermal management without electronic components. The 2663 model fits within this line as a flange-mounted, aluminum clutch optimized for specific Honda and Isuzu applications.

Technical Specifications and Features

The Hayden 2663 fan clutch features a flange mounting type with four bolt holes, each threaded M6 x 1.0, ensuring secure installation. The clutch has a maximum diameter of 6.65 inches and an overall height of 3.39 inches (86.1 mm). It rotates in reverse direction and includes a pilot depth of 0.81 inches. The fan bolt circle measures 5.35 inches (135.9 mm), and the mounting diameter is 3.07 inches (78 mm). This non-electronic clutch is constructed from raw aluminum, providing a balance of strength and heat dissipation.

Compatible Vehicles and Applications

This engine cooling fan clutch is compatible with the following vehicles:

• Honda Amigo
• Honda Axiom
• Honda Passport
• Isuzu Rodeo
• Isuzu Rodeo Sport

It is designed to replace OEM fan clutches in these models, maintaining proper engine temperature and preventing overheating.

Common Issues Addressed by Hayden Fan Clutch 2663

• Overheating due to worn or failing fan clutch
• Reduced engine cooling efficiency
• Excessive fan noise from slipping clutch
• Engine temperature fluctuations under load
• Premature wear of cooling system components

Installation Notes and Tips

Installation requires removal of the existing fan clutch and mounting hardware, which is not included with this part. Ensure the mounting flange and bolt holes align correctly with the vehicle’s fan assembly. Use appropriate torque specifications for the M6 x 1.0 bolts to secure the clutch. Verify rotation direction matches the original part (reverse rotation). It is recommended to inspect the fan blades and radiator condition during installation.

Quality Assurance and Warranty

The Hayden Fan Clutch 2663 is a new, performance-rated part that meets or exceeds OEM standards for durability and function. Manufactured from aluminum, it offers reliable heat dissipation and structural integrity. While specific warranty details are not provided, Hayden products typically adhere to industry quality controls to ensure consistent performance in engine cooling applications.
