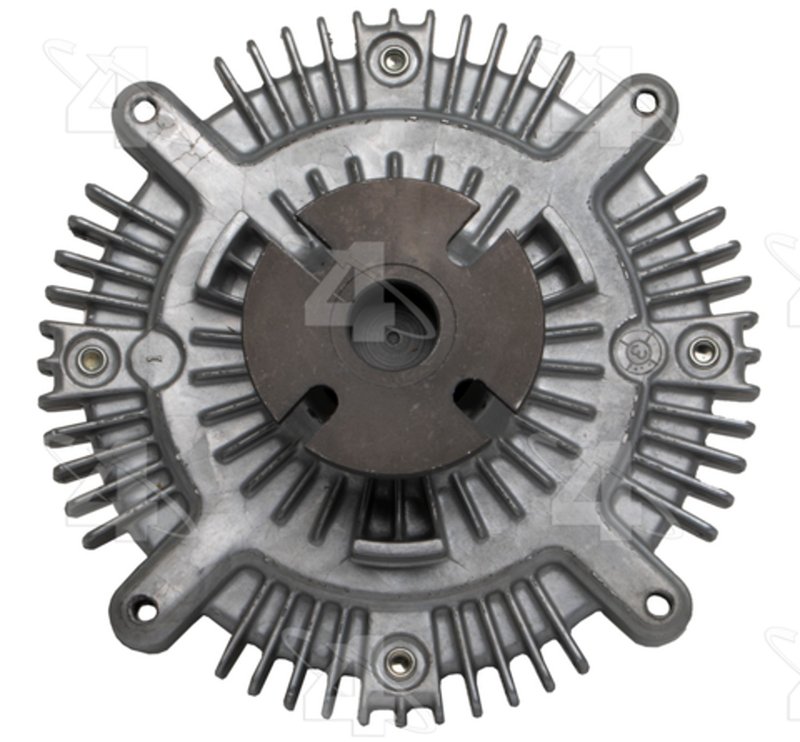

Hayden 2668 Engine Cooling Fan Clutch
| Brand | Hayden 2668 |
|---|---|
| Bolt Hole Quantity | 4 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 6.65 |
| Clutch Type | A - 5" & 6" Import |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Dia. IN | 6.65 |
| Distance From Clutch To Mounting Flange | 2.09 |
| Electronic Clutch? | Non Electronic |
| Fan Bolt Circle IN | 6.03 |
| Fan Bolt Circle MM | 153.2 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 2.44 |
| Mount Dia. MM | 62 |
| Mounting Hardware? | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 168.9 |
| Overall Height IN | 2.67 |
| Overall Height MM | 67.8 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.55 |
| Pilot Depth MM | 14 |
| Pilot Dia. IN | 0.71 |
| Rotation | STD |
| Style | Standard Duty |
| Type | Thermal |
| Use Type | Standard |
| Product line | Fan Clutch |
| Fits | Mitsubishi · 3 vehicles |
Thermal clutch. Responds to temperature for consistent fan control.
Aluminum construction. Lightweight material with a raw aluminum finish.
OE-spec fit. Meets or exceeds OEM requirements for direct replacement.
Cross-references AMS Automotive 4835, Anchor 2668 and Four Seasons 36748 for the same application. See all 23.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hayden 2668 Fan Clutch for Mitsubishi Montero Sport
The Hayden Fan Clutch 2668 is a standard-duty thermal engine cooling fan clutch built for import cooling systems that need consistent fan engagement. It is a non-electronic, flange-mount aluminum unit that meets or exceeds OEM requirements for the 1997-1999 Mitsubishi Montero Sport.
Key Features
- Thermal, standard-duty fan clutch for engine cooling control
- Aluminum construction with raw aluminum finish
- Non-electronic design for direct mechanical operation
- Flange mounting style with 4 bolt holes and 4 mounting holes
- 6.65 in. maximum clutch diameter and 2.67 in. overall height
- Fan bolt circle: 6.03 in. / 153.2 mm
- Meets or exceeds OEM specifications
- New, performance-rated replacement part
Product Details
Hayden Fan Clutch 2668 is part of the Hayden fan clutch line, a cooling-focused product line for replacement applications that require accurate thermal response and proper fan drive engagement. This standard-duty import clutch uses a flange mount, M6 x 1.0 hole thread, and a 2.44 in. mount diameter with a 0.71 in. pilot diameter. It is built for the 1997-1999 Mitsubishi Montero Sport and is also cross-referenced to Anchor 2668 for the same application.
Fits 1997-1999 Mitsubishi Montero Sport, N/A.
Common Cooling System Issues It Can Address
- Engine fan not engaging at the correct temperature
- Excessive fan noise from a worn thermal clutch
- Cooling performance loss during idle or low-speed driving
- Irregular fan drive operation caused by clutch wear
- Replacement need for a damaged or leaking mechanical fan clutch
Installation Notes and Tips
Verify flange style, bolt pattern, pilot dimensions, and fan bolt circle before installation. This part uses 4 bolt holes and 4 mounting holes, and mounting hardware is not included. Confirm the thermal clutch orientation and rotation specification match the original unit on your Mitsubishi Montero Sport before service.
Quality Assurance
Hayden 2668 is a new, performance-rated fan clutch that meets or exceeds OEM requirements for the listed application. Its standard-duty thermal design and aluminum construction support proper cooling system service on 1997-1999 Mitsubishi Montero Sport models.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1999 | Mitsubishi | Montero Sport | 2.4L | L4 | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1998 | Mitsubishi | Montero Sport | 2.4L | L4 | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1997 | Mitsubishi | Montero Sport | 2.4L | L4 | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
