Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

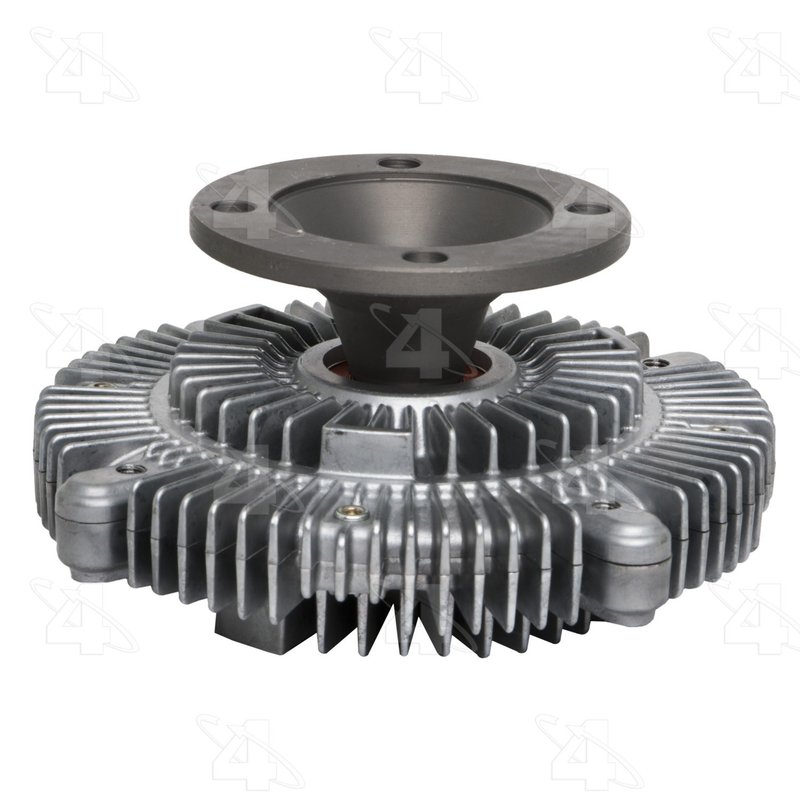

Hayden 2677 Engine Cooling Fan Clutch
| Brand | Hayden 2677 |
|---|---|
| Bolt Hole Quantity | 4 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 6.65 |
| Clutch Type | A - 5" & 6" Import |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Dia. IN | 6.65 |
| Distance From Clutch To Mounting Flange | 2.59 |
| Electronic Clutch? | Non Electronic |
| Fan Bolt Circle IN | 5.35 |
| Fan Bolt Circle MM | 135.9 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 3.63 |
| Mount Dia. MM | 92 |
| Mounting Hardware? | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 168.9 |
| Overall Height IN | 3.28 |
| Overall Height MM | 83.3 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.88 |
| Pilot Depth MM | 22.4 |
| Pilot Dia. IN | .63 |
| Rotation | REV |
| Style | Standard Duty |
| Type | Thermal |
| Use Type | Standard |
| Product line | Fan Clutch |
| Fits | Lexus and Toyota · 23 vehicles |
Thermal clutch. Responds to temperature changes for consistent fan control.
Aluminum construction. Lightweight material with a raw aluminum finish.
OE-spec fit. Meets or exceeds OEM requirements for dependable replacement.
Cross-references Anchor 2678, Four Seasons 36774 and Gates 22177 for the same application. See all 38.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hayden 2677 Thermal Fan Clutch Overview
The Hayden 2677 is a standard-duty thermal engine cooling fan clutch built with an aluminum body and a flange mount for select Toyota and Lexus applications. It uses a reverse-rotation design and meets or exceeds OEM requirements for direct replacement service on the listed vehicles.
For Lexus LX470, Toyota Land Cruiser, Toyota Tundra, and Lexus LS400 applications, this Hayden Fan Clutch line focuses on OE-style fitment and thermal control. The Hayden 2677 is a new, non-electronic fan clutch with a 5" and 6" import-style clutch configuration.
Key Features
- Thermal, standard-duty engine cooling fan clutch
- Aluminum construction with raw aluminum finish
- Reverse rotation design
- Flange mounting type with 4 bolt holes
- Clutch maximum diameter: 6.65 in. (168.9 mm)
- Mount diameter: 3.63 in. (92 mm)
- Fan bolt circle: 5.35 in. (135.9 mm)
- Distance from clutch to mounting flange: 2.59 in.
- Non-electronic design
- Meets or exceeds OEM specifications
Detailed Description
The Hayden 2677 fan clutch is engineered for thermal engagement in cooling systems that require a reverse-rotation, standard-duty replacement. Its aluminum housing, 4-bolt flange mount, and import-style A clutch format support direct-fit service on select 1997-2005 Lexus and Toyota vehicles. This part number is commonly referenced for Lexus LX470, Toyota Land Cruiser, Toyota Tundra, and Lexus LS400 cooling fan clutch replacement needs.
This part cross-references Four Seasons 36774 and Gates 22177 for the same application. Hayden 2677 is a practical OE-style replacement when servicing a thermal fan clutch on the listed Lexus and Toyota models.
Vehicle Fitment
- Fits 2005 Lexus LX470, N/A; Standard Rotation; Standard Duty Thermal Fan Clutch; To 5/05; New Part; Fan Clutch
- Fits 2005 Toyota Land Cruiser, N/A; Standard Rotation; Standard Duty Thermal Fan Clutch; To 5/05; New Part; Fan Clutch
- Fits 1998-2004 Lexus LX470, N/A; Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch
- Fits 1998-2004 Toyota Land Cruiser, N/A; Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch
- Fits 2000-2002 Toyota Tundra, N/A; Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch
- Fits 2000 Lexus LS400, N/A; Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Trailer Tow Pkg.; Fan Clutch
- Fits 1997-1999 Lexus LS400, N/A; Standard Rotation; Standard Duty Thermal Fan Clutch; w/ Trailer Tow Pkg.; Fan Clutch
Installation Notes and Tips
Verify the mounting flange, bolt pattern, pilot dimensions, and rotation direction before installation. The Hayden 2677 uses M6 x 1.0 hole threads and a 4-bolt mounting layout, so matching the fan and water pump interface is essential for proper fitment. Confirm vehicle build date on 2005 Lexus LX470 and 2005 Toyota Land Cruiser applications, since fitment is listed through 5/05.
Use the existing fan assembly specifications to confirm the 5.35 in. fan bolt circle and 3.63 in. mount diameter before installation. Mounting hardware is not included.
Quality Assurance
The Hayden 2677 is a new replacement part that meets or exceeds OEM requirements and is performance rated for standard-duty thermal cooling applications. Hayden’s Fan Clutch line is built for direct replacement service in the cooling system category.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Lexus | LX470 | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; To 5/05; New Part; Fan Clutch |
| 2005 | Toyota | Land Cruiser | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; To 5/05; New Part; Fan Clutch |
| 2004 | Lexus | LX470 | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch |
| 2004 | Toyota | Land Cruiser | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch |
| 2003 | Lexus | LX470 | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch |
| 2003 | Toyota | Land Cruiser | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch |
| 2002 | Lexus | LX470 | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch |
| 2002 | Toyota | Land Cruiser | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch |
| 2002 | Toyota | Tundra | 4.7L | V8 | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 2001 | Lexus | LX470 | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch |
| 2001 | Toyota | Land Cruiser | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch |
| 2001 | Toyota | Tundra | 4.7L | V8 | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 2000 | Lexus | LS400 | — | — | N/A | Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Trailer Tow Pkg.; Fan Clutch |
| 2000 | Lexus | LX470 | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch |
| 2000 | Toyota | Land Cruiser | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch |
| 2000 | Toyota | Tundra | 4.7L | V8 | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1999 | Lexus | LS400 | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; w/ Trailer Tow Pkg.; Fan Clutch |
| 1999 | Lexus | LX470 | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch |
| 1999 | Toyota | Land Cruiser | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch |
| 1998 | Lexus | LS400 | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; w/ Trailer Tow Pkg.; Fan Clutch |
| 1998 | Lexus | LX470 | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch |
| 1998 | Toyota | Land Cruiser | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; New Part; Fan Clutch |
| 1997 | Lexus | LS400 | — | — | N/A | Standard Rotation; Standard Duty Thermal Fan Clutch; w/ Trailer Tow Pkg.; Fan Clutch |
