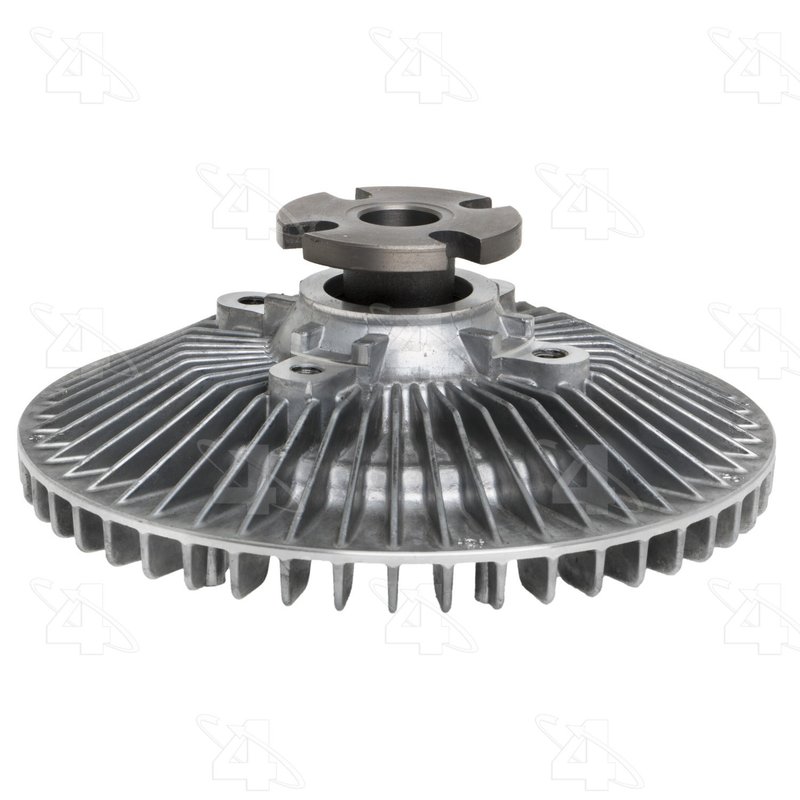

Hayden 2765 Engine Cooling Fan Clutch
| Brand | Hayden 2765 |
|---|---|
| Bolt Hole Quantity | 4 |
| Bolt Thread | 5/16-18 Hole |
| Clutch Maximum Diameter | 7.2 |
| Clutch Type | B - Non-Thermal & Std Thermal |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Dia. IN | 7.2 |
| Distance From Clutch To Mounting Flange | 1.09 |
| Electronic Clutch? | Non Electronic |
| Fan Bolt Circle IN | 3.25 |
| Fan Bolt Circle MM | 82.6 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 2.32 |
| Mount Dia. MM | 59 |
| Mounting Hardware? | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 182.9 |
| Overall Height IN | 2.67 |
| Overall Height MM | 67.8 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.56 |
| Pilot Depth MM | 14.2 |
| Pilot Dia. IN | 0.75 |
| Rotation | STD |
| Style | Standard Duty |
| Type | Thermal |
| Use Type | Standard |
| Product line | Fan Clutch |
| Fits | Jaguar · 11 vehicles |
OE direct replacement. Meets or exceeds OEM requirements for dependable cooling performance.
Aluminum construction. Raw aluminum finish and standard-duty design for a clean, durable fit.
Flange mount design. Non-electronic thermal clutch with 4-bolt mounting.
Cross-references AMS Automotive 4818, Dorman - HELP 22018 and Four Seasons 36944 for the same application. See all 28.
Hayden 2765 Fan Clutch Overview
The Hayden 2765 fan clutch is a standard-duty, thermal engine cooling fan clutch built with an aluminum body and a flange mount. It is a new, non-electronic replacement that meets or exceeds OEM requirements for select Jaguar cooling systems, including Jaguar XJ6 and Jaguar Vanden Plas applications.
Use this Hayden Fan Clutch line component when you need a direct-fit thermal fan clutch for standard rotation cooling fan operation. The Hayden 2765 is engineered for a 7.2-inch clutch diameter, 4-bolt flange mounting, and a 3.25-inch fan bolt circle for the listed Jaguar fitments.
Key Features
- Brand: Hayden Fan Clutch
- Part number: 2765
- Thermal, standard-duty fan clutch design
- Aluminum construction with raw aluminum finish
- Standard rotation (STD)
- Flange mounting style with 4 bolt holes
- 7.2-inch clutch diameter
- Non-electronic design
- Meets or exceeds OEM specifications
- Performance rated
Detailed Description
The Hayden 2765 is a thermal engine cooling fan clutch designed to regulate fan engagement based on operating temperature in the cooling system. Its standard-duty construction and aluminum housing support dependable operation in the listed Jaguar applications, while the 2.32-inch mount diameter, 0.75-inch pilot diameter, and 0.56-inch pilot depth help define the fitment profile. This part cross-references Four Seasons 36944 and Dorman - HELP 22018 for the same application.
Compatible With 1987-1992 Jaguar XJ6 and 1988-1992 Jaguar Vanden Plas, the Hayden 2765 fan clutch is a practical replacement for vehicles that require a thermal, standard-rotation fan clutch with flange mounting. The Hayden 2765 is also identified by interchange references such as 2765TA and FC2765.
What It Helps Address
- Cooling fan engagement that no longer responds correctly to engine temperature
- Excessive fan freewheeling or reduced fan drive performance
- Cooling system temperature control concerns at idle or low speed
- Noise or vibration associated with a worn fan clutch assembly
- Replacement needs for a thermal fan clutch on Jaguar XJ6 and Vanden Plas models
Installation Notes and Tips
Verify the mounting pattern, pilot dimensions, rotation, and fan bolt circle before installation. This part uses a 4-bolt flange mount with 5/16-18 hole threading and does not include mounting hardware. Confirm that the replacement matches the vehicle’s thermal fan clutch configuration and standard rotation requirements before service.
Quality Assurance
The Hayden 2765 is a new replacement part built to meet or exceed OEM specifications and is performance rated for the listed applications. It is a non-electronic, standard-duty thermal fan clutch intended for direct replacement use in the specified Jaguar cooling system applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1992 | Jaguar | Vanden Plas | — | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1992 | Jaguar | XJ6 | — | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1991 | Jaguar | Vanden Plas | — | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1991 | Jaguar | XJ6 | — | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1990 | Jaguar | Vanden Plas | — | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1990 | Jaguar | XJ6 | — | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1989 | Jaguar | Vanden Plas | — | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1989 | Jaguar | XJ6 | — | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1988 | Jaguar | Vanden Plas | — | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1988 | Jaguar | XJ6 | — | — | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
| 1987 | Jaguar | XJ6 | 3.6L | L6 | N/A | Thermal engine cooling fan clutch with standard duty and rotation.; Fan Clutch |
