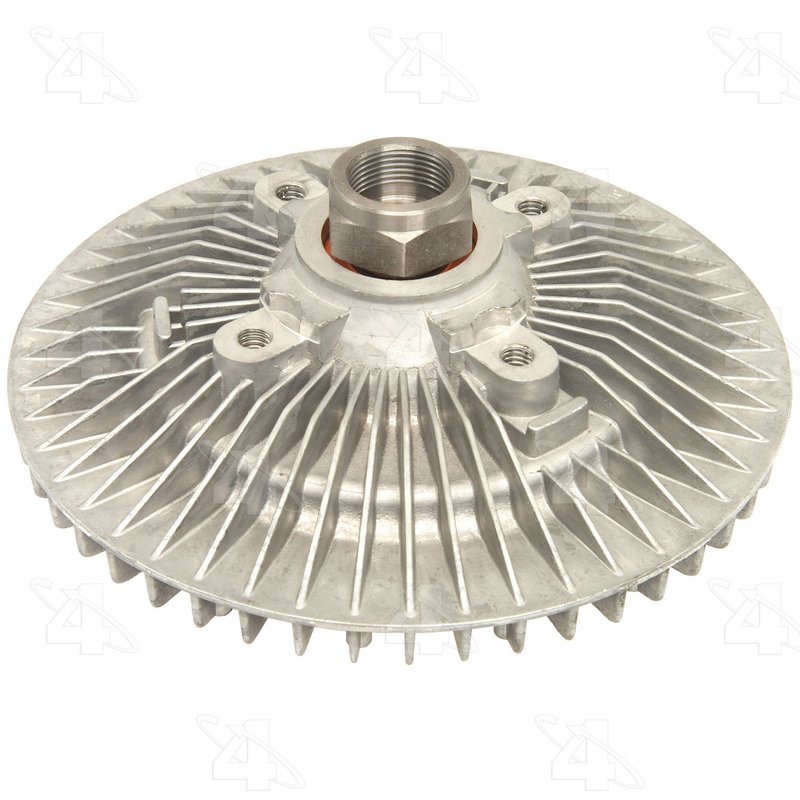

Hayden 2772 Engine Cooling Fan Clutch
| Brand | Hayden 2772 |
|---|---|
| Bolt Hole Quantity | 4 |
| Bolt Thread | 5/16-18 Hole |
| Clutch Maximum Diameter | 7.2 |
| Clutch Type | C - Heavy Duty |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Dia. IN | 7.2 |
| Distance From Clutch To Mounting Flange | 1.02 |
| Electronic Clutch? | Non Electronic |
| Fan Bolt Circle IN | 3.25 |
| Fan Bolt Circle MM | 82.6 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 1.25 |
| Mount Dia. MM | 32 |
| Mounting Hardware? | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | HEX |
| New or Reman | New |
| Overall Dia. MM | 182.9 |
| Overall Height IN | 2.73 |
| Overall Height MM | 69.5 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.58 |
| Pilot Depth MM | 14.7 |
| Pilot Dia. IN | 0.94 |
| Pilot Dia. MM | 24 |
| Rotation | STD |
| Style | Heavy Duty |
| Type | Thermal |
| Use Type | Heavy |
| Product line | Fan Clutch |
| Fits | Land Rover · 10 vehicles |
Heavy-duty thermal clutch. Delivers dependable fan engagement for demanding cooling needs.
Aluminum construction. Lightweight material helps resist corrosion and heat.
OE-spec replacement. Meets or exceeds OEM requirements for a precise fit.
Cross-references Dorman - HELP 46043, Gates 22063 and Gates 22305 for the same application. See all 16.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hayden 2772 Heavy Duty Thermal Fan Clutch
The Hayden Fan Clutch 2772 is a heavy-duty thermal engine cooling fan clutch built with an aluminum body and standard rotation. It is a non-electronic, performance-rated replacement that meets or exceeds OEM requirements for the listed Land Rover Range Rover applications.
Compatible with 1987-1995 Land Rover Range Rover models, this Hayden 2772 fan clutch is specified for heavy-duty thermal cooling service and 11-blade fan applications where listed. It is a direct-fit cooling system service part for Range Rover owners replacing a worn or inconsistent mechanical fan clutch.
Key Features
- Brand: Hayden Fan Clutch
- Part number: 2772
- Heavy duty thermal clutch type
- Standard rotation, non-electronic design
- Aluminum construction with raw aluminum finish
- Meets or exceeds OEM specifications
- Performance rated for demanding cooling system service
- Mounting type: HEX
- Fan bolt circle: 3.25 in. (82.6 mm)
- Mount diameter: 1.25 in. (32 mm)
Product Details
Hayden 2772 is part of the Hayden Fan Clutch line, a cooling-focused product line for mechanical fan clutch replacement. This thermal clutch uses temperature-responsive operation to help control fan engagement in the engine cooling system. With a 7.2 in. maximum diameter, 2.73 in. overall height, and 1.02 in. distance from clutch to mounting flange, it is built for the specified fitment and cooling package dimensions.
This part cross-references Gates 22063 and Dorman - HELP 46043 for the same application. It is listed for 1987-1995 Land Rover Range Rover, making it a relevant search match for Range Rover fan clutch replacement, Land Rover Range Rover cooling repair, and heavy duty thermal fan clutch service.
Common Issues This Part Can Address
- Weak fan engagement that reduces cooling performance
- Excessive engine temperature during stop-and-go driving
- Fan clutch noise or rough mechanical operation
- Cooling system inconsistency on Land Rover Range Rover models
- Replacement of a worn thermal fan clutch in standard rotation applications
Installation Notes
Verify the fan bolt circle, mount diameter, pilot dimensions, and overall clearance before installation. Mounting hardware is not included, so reuse or source the required hardware separately if needed. Confirm standard rotation and 11-blade fan application details for the vehicle before ordering. For best results, inspect the fan, water pump area, and surrounding cooling components during service.
Quality Assurance
Hayden 2772 is a new, performance-rated fan clutch that meets or exceeds OEM requirements for the listed applications. Its heavy-duty thermal design and aluminum construction support dependable mechanical cooling system service on compatible Land Rover Range Rover models.
Fits 1987 Land Rover Range Rover, N/A. Fits 1988 Land Rover Range Rover, N/A. Fits 1989-1994 Land Rover Range Rover, N/A. Fits 1995 Land Rover Range Rover, N/A.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1995 | Land Rover | Range Rover | 3.9L | V8 | N/A | Standard Rotation; Heavy Duty Thermal Fan Clutch; For 11 Blade Fan; Fan Clutch |
| 1995 | Land Rover | Range Rover | 4.2L | V8 | N/A | Standard Rotation; Heavy Duty Thermal Fan Clutch; For 11 Blade Fan; Fan Clutch |
| 1994 | Land Rover | Range Rover | — | — | N/A | Standard Rotation Heavy Duty Thermal Fan Clutch; Fan Clutch |
| 1993 | Land Rover | Range Rover | — | — | N/A | Standard Rotation Heavy Duty Thermal Fan Clutch; Fan Clutch |
| 1992 | Land Rover | Range Rover | — | — | N/A | Standard Rotation Heavy Duty Thermal Fan Clutch; Fan Clutch |
| 1991 | Land Rover | Range Rover | — | — | N/A | Standard Rotation Heavy Duty Thermal Fan Clutch; Fan Clutch |
| 1990 | Land Rover | Range Rover | — | — | N/A | Standard Rotation Heavy Duty Thermal Fan Clutch; Fan Clutch |
| 1989 | Land Rover | Range Rover | — | — | N/A | Standard Rotation Heavy Duty Thermal Fan Clutch; Fan Clutch |
| 1988 | Land Rover | Range Rover | — | — | N/A | Standard Rotation; Heavy Duty Thermal Fan Clutch; For 11 Blade Fan; Fan Clutch |
| 1987 | Land Rover | Range Rover | — | — | N/A | Standard Rotation Heavy Duty Thermal Fan Clutch; Fan Clutch |
