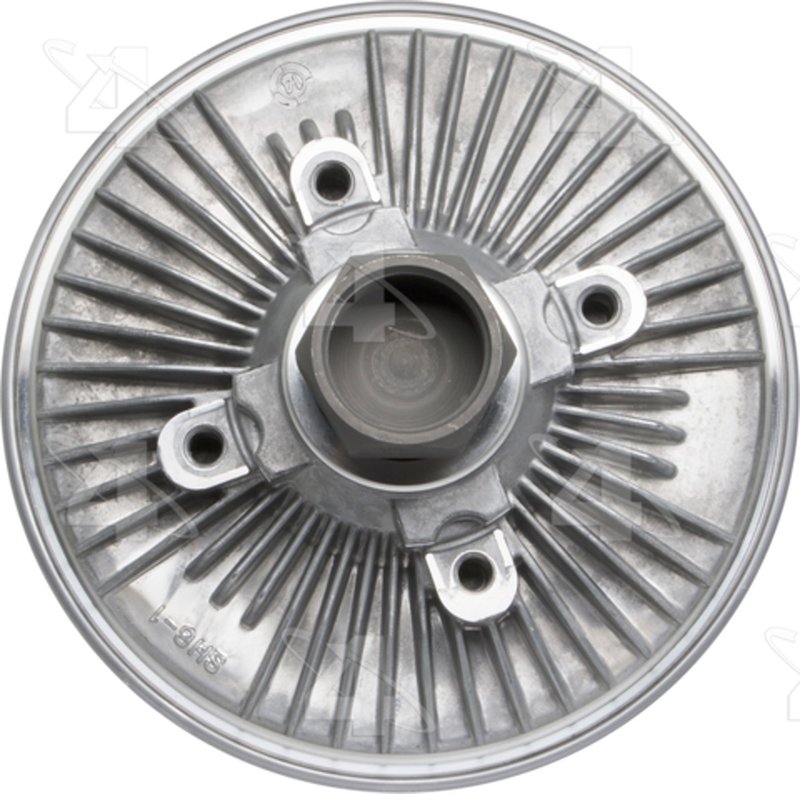

Hayden 2775 Engine Cooling Fan Clutch

Overview of Hayden Fan Clutch 2775 for Ford F-150

The Hayden Fan Clutch 2775 is designed specifically for severe duty applications, making it suitable for Ford F-150 and F-150 Heritage models. Constructed from durable aluminum, this engine cooling fan clutch ensures reliable performance under demanding conditions.

• Material: Aluminum construction for durability
• Designed for severe duty use
• Non-electronic, mechanical fan clutch type D
• Four bolt holes and mounting holes for secure installation
• Maximum clutch diameter of 6.45 inches
• Hex mounting type with 5/16-18 bolt thread
• Compatible with Ford F-150 and F-150 Heritage
• New, performance-rated part meeting or exceeding OEM standards

Hayden Fan Clutch Product Line Details

The Hayden Fan Clutch product line focuses on providing reliable engine cooling solutions for trucks and severe duty vehicles. The Fan Clutch 2775 is part of this line, engineered to handle the higher thermal demands of truck fan drives. This ensures consistent cooling performance and helps maintain engine temperature under heavy load conditions.

Technical Specifications and Features

The Hayden Fan Clutch 2775 features a raw aluminum finish and a clutch maximum diameter of 6.45 inches (163.8 mm). It includes four bolt holes and mounting holes, each with a 5/16-18 thread size, and a hex mounting type for secure attachment. The clutch has a 1.5-inch distance from clutch to mounting flange and an overall height of 3.52 inches (89.4 mm). This non-electronic clutch operates with a reverse rotation and is designed for severe duty truck fan drives (clutch type D). The fan bolt circle measures 3.25 inches (82.6 mm), and the mount diameter is 1.44 inches (36 mm).

Applications and Problem Solving

• Replaces worn or failing fan clutches on Ford F-150 and F-150 Heritage trucks
• Improves engine cooling efficiency under heavy load or severe duty conditions
• Prevents engine overheating caused by faulty or slipping fan clutches
• Restores proper fan engagement for optimal airflow and temperature control
• Addresses cooling system issues related to mechanical fan clutch failure

Installation Notes and Tips

Installation requires removal of the existing fan clutch and proper alignment of the four mounting bolts with the 5/16-18 threaded holes. Note that mounting hardware is not included with this part. Ensure the hex mounting type is compatible with your vehicle’s fan assembly. Verify the clutch rotation direction matches your Ford F-150 or F-150 Heritage model specifications. Proper torque specifications should be followed to avoid damage during installation.

Quality Assurance and Warranty

The Hayden Fan Clutch 2775 is a new, performance-rated part that meets or exceeds OEM standards for durability and function. Manufactured with high-quality aluminum and designed for severe duty use, this fan clutch provides reliable engine cooling performance. Warranty details should be confirmed with the original equipment manufacturer or distributor.
