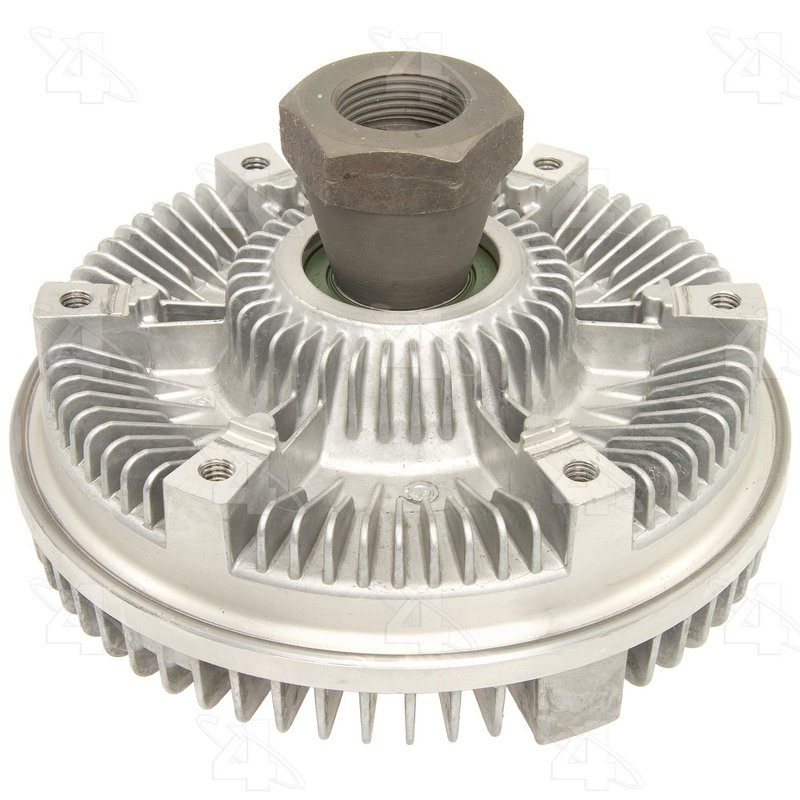

Hayden 2847 Engine Cooling Fan Clutch

Overview of Hayden Fan Clutch 2847

The Hayden Fan Clutch 2847 is engineered for severe duty applications, providing reliable engine cooling performance. Constructed from durable aluminum, this non-electronic fan clutch is designed to meet or exceed OEM specifications, making it suitable for heavy-duty trucks and vehicles requiring robust cooling solutions.

• Material: Aluminum for durability and heat resistance
• Severe duty use type, ideal for truck fan drives
• Non-electronic clutch with standard rotation
• 6 bolt holes and mounting holes with 5/16-18 thread size
• Maximum clutch diameter of 7.4 inches (188 mm)
• Mounting type: Hex with 1.88 inch (48 mm) mount diameter
• Overall height of 4.39 inches (111.5 mm)
• Performance rated and new condition
• Meets or exceeds OEM standards

Hayden Fan Clutch Product Line Details

The Hayden Fan Clutch product line focuses on delivering reliable engine cooling components designed for severe duty and truck fan drive applications. The Fan Clutch series emphasizes durability and performance, using high-quality materials like aluminum to withstand demanding operating conditions. The 2847 model fits within this line as a non-electronic, performance-rated clutch engineered for heavy-duty use.

Detailed Product Description

The Hayden Fan Clutch 2847 features a raw aluminum finish and is built to handle severe duty environments commonly found in truck and heavy vehicle cooling systems. With a clutch maximum diameter of 7.4 inches and a bolt circle diameter of 6 inches (152.4 mm), it provides a secure and precise fit. The hex mounting type and six bolt holes ensure stable installation. This clutch operates with standard rotation and does not include electronic control, making it compatible with a wide range of traditional cooling fan setups. The overall height of 4.39 inches and pilot dimensions are designed to match OEM specifications, ensuring proper alignment and function.

Common Applications and Problem Solving

• Replaces worn or failing engine cooling fan clutches in heavy-duty trucks
• Addresses overheating issues caused by inefficient fan engagement
• Improves engine temperature regulation under severe operating conditions
• Reduces unnecessary fan drag to enhance fuel efficiency
• Restores proper fan clutch function to prevent engine damage

Installation Notes and Tips

Installation requires a compatible mounting flange with six bolt holes matching the 5/16-18 thread size. Ensure the mounting surface is clean and free of debris before installation. This fan clutch does not include mounting hardware, so use existing or appropriate bolts. Verify the clutch rotation direction matches the vehicle’s fan setup. Proper torque specifications should be followed to avoid damage to the clutch or mounting flange.

Quality Assurance and Warranty

The Hayden Fan Clutch 2847 is a new, performance-rated part that meets or exceeds OEM standards for durability and function. Manufactured from high-quality aluminum, it is designed to withstand severe duty conditions typical of truck fan drives. While specific warranty details are not provided, Hayden products generally adhere to strict quality control processes to ensure reliability and long service life.
