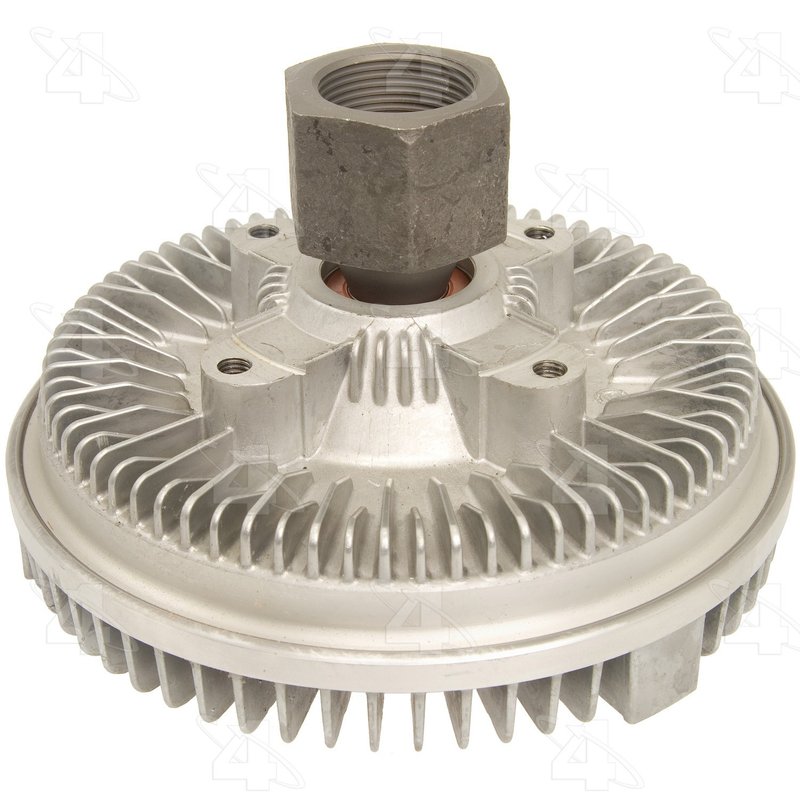

Hayden 2886 Engine Cooling Fan Clutch
| Brand | Hayden 2886 |
|---|---|
| Material | Aluminum |
| Use Type | Severe |
| Color | Raw aluminum in color |
| Bolt Hole Quantity | 4 |
| Mounting Hole Quantity | 4 |
| Distance From Clutch To Mounting Flange | 2.08 |
| Clutch Maximum Diameter | 7.4 |
| Rotation | Rev |
| Mounting Type | Hex |
| Bolt Quantity | 4 |
| Bolt Thread | M8 x 1.25 hole |
| Clutch Type | D - severe duty & truck fan drive |
| Description | Fan clutches |
| Dia. IN | 7.4 |
| Electronic Clutch? | Non electronic |
| Fan Bolt Circle IN | 3.81 |
| Fan Bolt Circle MM | 96.8 |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 1.86 |
| Mount Dia. MM | 47 |
| Mounting Hardware? | Not included |
| New or Reman | New |
| Overall Dia. MM | 188 |
| Overall Height IN | 4.59 |
| Overall Height MM | 116.6 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.88 |
| Pilot Depth MM | 22.2 |
| Pilot Dia. IN | 1.42 |
| Pilot Dia. MM | 36 |
| Fits | — |
Severe-duty thermal clutch. Built for demanding cooling performance in tough service.
Aluminum construction. Lightweight material helps support efficient heat management.
OE-spec fit. Meets or exceeds OEM requirements for dependable replacement.
Cross-references Anchor 2886, Four Seasons 46050 and Gates 22629 for the same application. See all 14.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hayden 2886 Severe Duty Fan Clutch
The Hayden 2886 is a thermal engine cooling fan clutch built for severe-duty and truck fan drive applications. It uses an aluminum housing, a non-electronic design, and a reverse rotation setup to support consistent fan engagement in demanding cooling systems.
As part of the Hayden Fan Clutch line, this unit is built for direct replacement use where a thermal, severe-duty fan clutch is specified. It is a new, performance-rated component that meets or exceeds OEM requirements for the listed applications, including select Chevrolet and GMC truck fitments.
Key Features
- Brand: Hayden Fan Clutch
- Part number: 2886
- Thermal, non-electronic fan clutch design
- Severe duty and truck fan drive style
- Aluminum construction with raw aluminum finish
- Reverse rotation (REV) configuration
- 4-bolt mounting pattern with HEX mounting type
- Meets or exceeds OEM specifications
- Performance rated for demanding cooling service
Detailed Description
The Hayden 2886 fan clutch is engineered for vehicles that rely on a thermal clutch to regulate engine fan speed based on operating temperature. With a 7.4-inch maximum diameter, 4.59-inch overall height, 1.86-inch mount diameter, and 1.42-inch pilot diameter, it is built around the dimensional requirements of severe-duty cooling systems. The 96.8 mm fan bolt circle and M8 x 1.25 hole thread specification support proper fan attachment in the correct application.
This part number is commonly referenced for Chevrolet and GMC truck cooling system service where a reverse-rotation, severe-duty fan clutch is required. If you are replacing a worn clutch on a Chevrolet or GMC truck, Hayden 2886 provides a direct thermal fan clutch solution for restoring proper fan engagement and cooling control. This part cross-references Four Seasons 46050 and Gates 22629 for the same application.
What It Is Used For
- Restoring fan clutch engagement when engine cooling performance drops
- Addressing overheating caused by a worn or weak thermal clutch
- Correcting fan noise from a failing severe-duty fan drive
- Replacing a reverse-rotation clutch in truck cooling systems
- Supporting stable cooling operation in Chevrolet and GMC truck applications
Installation Notes and Tips
Verify reverse rotation, bolt pattern, pilot diameter, mount diameter, and overall height before installation. This Hayden 2886 fan clutch uses a 4-bolt mounting layout and does not include mounting hardware, so confirm the existing fan and fastener setup matches the vehicle specification. Always inspect the fan blades, water pump area, and surrounding cooling components during replacement to avoid repeat cooling issues.
For fitment-based searches, this part is commonly sought as a Hayden 2886 fan clutch for Chevrolet truck cooling repair and GMC truck fan clutch replacement. Confirm the vehicle’s cooling system requirements before ordering.
Quality Assurance
The Hayden 2886 is a new, performance-rated thermal fan clutch that meets or exceeds OEM requirements for the listed application. Its severe-duty construction and aluminum housing are intended for service in demanding truck cooling systems.
