Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

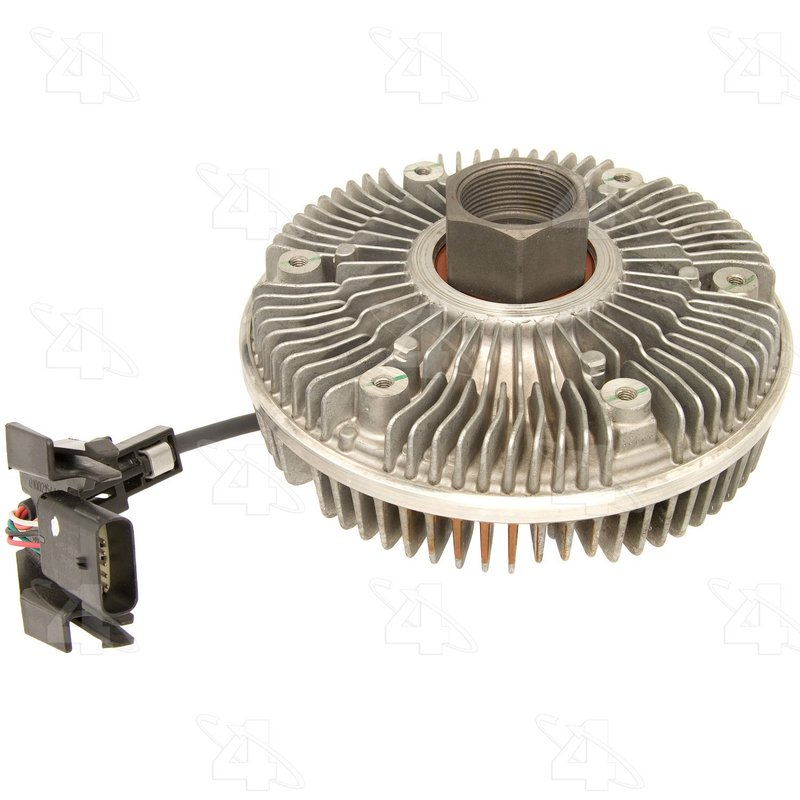

Hayden 3265 Engine Cooling Fan Clutch
| Brand | Hayden 3265 |
|---|---|
| Bolt Hole Quantity | 6 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 7.73 |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Dia. IN | 7.73 |
| Distance From Clutch To Mounting Flange | 1.22 |
| Electronic Clutch? | Non Electronic |
| Fan Bolt Circle IN | 6 |
| Fan Bolt Circle MM | 152.4 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 1.86 |
| Mount Dia. MM | 47 |
| Mounting Hardware? | Not Included |
| Mounting Hole Quantity | 6 |
| Mounting Type | HEX |
| New or Reman | New |
| Overall Dia. MM | 196.3 |
| Overall Height IN | 4.81 |
| Overall Height MM | 122.2 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.7 |
| Pilot Depth MM | 17.8 |
| Pilot Dia. IN | 1.57 |
| Pilot Dia. MM | 40 |
| Rotation | STD |
| Style | Severe Duty |
| Type | Electronic |
| Use Type | Electro-Viscous |
| Wire Gauge Measurement | Uses Original Equipment Connector |
| Wire Quantity | Uses Original Equipment Connector |
| Product line | Fan Clutch |
| Fits | Ford · 6 vehicles |
Severe-duty design. Built for demanding cooling fan drive applications.
OE connector ready. Uses the original equipment connector for simpler installation.
Meets OEM standards. New electro-viscous fan clutch engineered to exceed OEM requirements.
Cross-references Anchor 3265, Dorman - HELP 46062 and Gates 22329 for the same application. See all 16.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hayden 3265 Fan Clutch for Super Duty Cooling
The Hayden 3265 is a severe-duty, electro-viscous engine cooling fan clutch built for demanding truck cooling systems. It uses the original equipment connector and is engineered for standard rotation applications on select Ford Super Duty models.
Key Features
- Brand: Hayden Fan Clutch
- Part Number: 3265
- Severe-duty, truck fan drive style
- Electro-viscous, non-electronic design
- Uses original equipment connector and wire layout
- Aluminum construction with raw aluminum finish
- Standard rotation
- 6-bolt / 6-mount-hole configuration
- Meets or exceeds OEM requirements
- Performance rated
- New replacement part
Product Details
Hayden Fan Clutch 3265 is designed as an OE-style replacement for heavy-duty cooling systems that rely on electronic fan clutch control. Its aluminum housing, 7.73-inch clutch diameter, 6-inch fan bolt circle, and 1.86-inch mount diameter support a direct-fit service approach for the cooling fan drive. This part cross-references Dorman HELP 46062 for the same application.
Compatible With 2008-2010 Ford F-250 Super Duty and 2008-2010 Ford F-350 Super Duty, this Hayden 3265 fan clutch is a direct replacement choice for standard rotation, electronic fan clutch applications. It is also referenced by part number 3265 for easy catalog matching.
Common Cooling Issues Addressed
- Engine overheating at idle or low road speed
- Fan clutch engagement problems
- Reduced airflow through the radiator and condenser
- Cooling fan noise caused by a worn clutch assembly
- Temperature control issues under towing or heavy-load driving
Installation Notes
Verify connector style, bolt pattern, rotation, and mounting dimensions before installation. This unit uses the original equipment connector, has 6 bolt holes, and is intended for standard rotation applications. Mounting hardware is not included, so reuse or source the correct fasteners as needed. Confirm fitment against the vehicle’s cooling system configuration before service.
Quality Assurance
Hayden designs this fan clutch to meet or exceed OEM specifications and rates it for performance use in severe-duty truck applications. The Hayden 3265 is a new replacement part built for dependable cooling system service on Ford F-250 Super Duty and Ford F-350 Super Duty models.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Ford | F-250 Super Duty | 6.4L | V8 | N/A | Standard Rotation; Electronic Fan Clutch; Fan Clutch |
| 2010 | Ford | F-350 Super Duty | 6.4L | V8 | N/A | Standard Rotation; Electronic Fan Clutch; Fan Clutch |
| 2009 | Ford | F-250 Super Duty | 6.4L | V8 | N/A | Standard Rotation; Electronic Fan Clutch; Fan Clutch |
| 2009 | Ford | F-350 Super Duty | 6.4L | V8 | N/A | Standard Rotation; Electronic Fan Clutch; Fan Clutch |
| 2008 | Ford | F-250 Super Duty | 6.4L | V8 | N/A | Standard Rotation; Electronic Fan Clutch; Fan Clutch |
| 2008 | Ford | F-350 Super Duty | 6.4L | V8 | N/A | Standard Rotation; Electronic Fan Clutch; Fan Clutch |
