Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

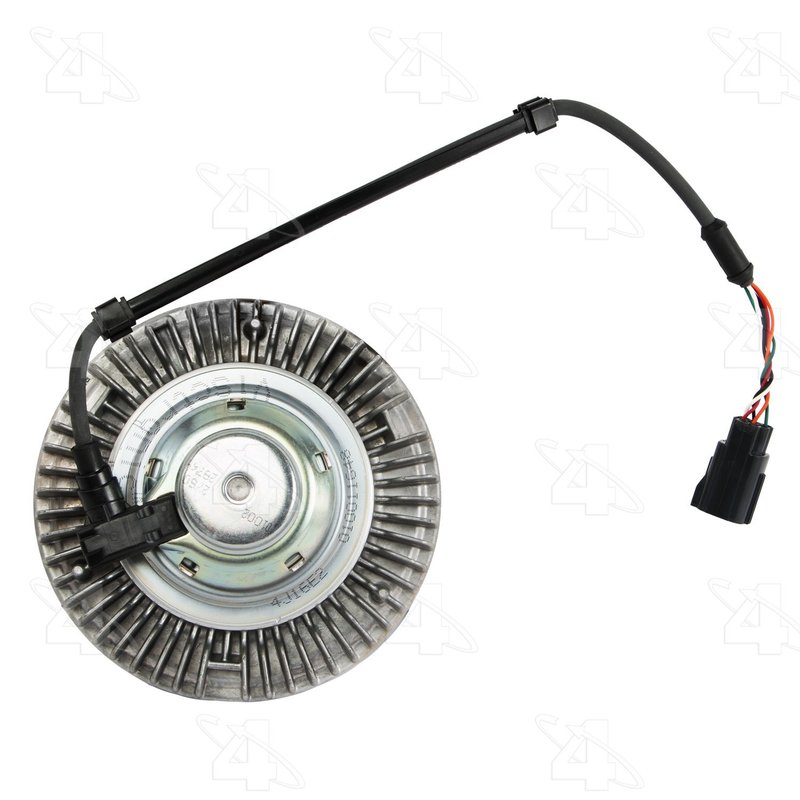

Hayden 3281 Engine Cooling Fan Clutch
| Brand | Hayden 3281 |
|---|---|
| Bolt Hole Quantity | 4 |
| Bolt Thread | 5/16-18 Hole |
| Clutch Maximum Diameter | 7.35 |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Dia. IN | 7.35 |
| Distance From Clutch To Mounting Flange | 1.01 |
| Distance From Clutch To Mounting Flange | 1.02 |
| Electronic Clutch? | Non Electronic |
| Fan Bolt Circle IN | 6 |
| Fan Bolt Circle MM | 152.4 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 1.44 |
| Mount Dia. MM | 36 |
| Mounting Hardware? | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | HEX |
| New or Reman | New |
| Overall Dia. MM | 186.7 |
| Overall Height IN | 4.34 |
| Overall Height MM | 110.5 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.55 |
| Pilot Depth MM | 14 |
| Pilot Dia. IN | 1.18 |
| Pilot Dia. MM | 30 |
| Rotation | REV |
| Style | Severe Duty |
| Terminal Type | Male |
| Type | Electronic |
| Use Type | Electro-Viscous |
| Wire Gauge Measurement | Uses Original Equipment Connector |
| Wire Quantity | Uses Original Equipment Connector |
| Product line | Fan Clutch |
| Fits | Dodge · 8 vehicles |
OE direct replacement. Meets or exceeds OEM requirements for dependable cooling performance.
Severe-duty design. Built for demanding fan drive applications with an electro-viscous clutch.
Aluminum construction. Lightweight raw aluminum housing with a new, non-electronic design.
Cross-references Anchor 3281, Dorman - HELP 46059 and Gates 22331 for the same application. See all 19.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hayden 3281 Fan Clutch Overview
The Hayden 3281 is an engine cooling fan clutch built for severe-duty and truck fan drive applications. It uses an electro-viscous, non-electronic design with an original equipment connector interface, making it a direct-fit cooling component for select Dodge Ram diesel applications.
Compatible with 2003-2004 Dodge Ram 2500 and Dodge Ram 3500 reverse-rotation electronic fan clutch applications, Hayden 3281 is engineered to meet or exceed OEM requirements for fit and function.
Key Features
- Brand: Hayden Fan Clutch
- Part number: 3281
- Severe-duty truck fan drive style
- Electro-viscous, non-electronic design
- Reverse rotation application
- Uses original equipment connector
- Aluminum construction with raw aluminum finish
- Meets or exceeds OEM specifications
- Performance rated for demanding cooling systems
- Direct fit for select Dodge Ram 2500 and Ram 3500 models
Detailed Description
The Hayden Fan Clutch 3281 is designed for engine cooling systems that require controlled fan engagement under heavy load and high-temperature conditions. Its severe-duty construction, 7.35-inch clutch diameter, 6-inch fan bolt circle, and 4-bolt mounting layout support proper installation on the specified Dodge Ram 2500 and Ram 3500 applications. The aluminum housing and hex mounting type provide a durable OE-style replacement solution for reverse-rotation fan clutch setups.
This part cross-references Dorman - HELP 46059 for the same application. For buyers searching for a 2003 Dodge Ram 2500 fan clutch, 2004 Dodge Ram 3500 reverse rotation fan clutch, or Hayden 3281 replacement, this unit matches the listed electronic fan clutch fitment requirements for the covered trucks.
What It Helps Address
- Engine overheating caused by a worn or weak fan clutch
- Fan engagement that is delayed, inconsistent, or noisy
- Cooling performance loss under towing or heavy-duty use
- Fitment issues on reverse-rotation electronic fan clutch applications
- Replacement needs for aging Dodge Ram 2500 and Ram 3500 cooling systems
Installation Notes and Tips
Verify reverse rotation, connector style, and mounting dimensions before installation. This Hayden 3281 uses the original equipment connector and is intended for the listed 2003-2004 Dodge Ram 2500 and Ram 3500 applications noted above. Mounting hardware is not included, so reuse or source the correct hardware as needed. Confirm clearance, pilot dimensions, and fan bolt circle alignment during installation.
Quality Assurance
Hayden identifies this fan clutch as meeting or exceeding OEM requirements and performance rated for severe-duty use. The Hayden 3281 is a new replacement part built for direct-fit cooling system service on the specified Dodge Ram applications.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2004 | Dodge | Ram 2500 | Automatic | 5.9L | L6 | N/A | Reverse Rotation; Electronic Fan Clutch; To 1/4/04; Fan Clutch |
| 2004 | Dodge | Ram 2500 | Manual | 5.9L | L6 | N/A | Reverse Rotation; Electronic Fan Clutch; To 1/4/04; Fan Clutch |
| 2004 | Dodge | Ram 3500 | Automatic | 5.9L | L6 | N/A | Reverse Rotation; Electronic Fan Clutch; To 1/4/04; Fan Clutch |
| 2004 | Dodge | Ram 3500 | Manual | 5.9L | L6 | N/A | Reverse Rotation; Electronic Fan Clutch; To 1/4/04; Fan Clutch |
| 2003 | Dodge | Ram 2500 | Automatic | 5.9L | L6 | N/A | Fitment: Reverse Rotation Electronic Fan Clutch.; Fan Clutch |
| 2003 | Dodge | Ram 2500 | Manual | 5.9L | L6 | N/A | Fitment: Reverse Rotation Electronic Fan Clutch.; Fan Clutch |
| 2003 | Dodge | Ram 3500 | Automatic | 5.9L | L6 | N/A | Fitment: Reverse Rotation Electronic Fan Clutch.; Fan Clutch |
| 2003 | Dodge | Ram 3500 | Manual | 5.9L | L6 | N/A | Fitment: Reverse Rotation Electronic Fan Clutch.; Fan Clutch |
