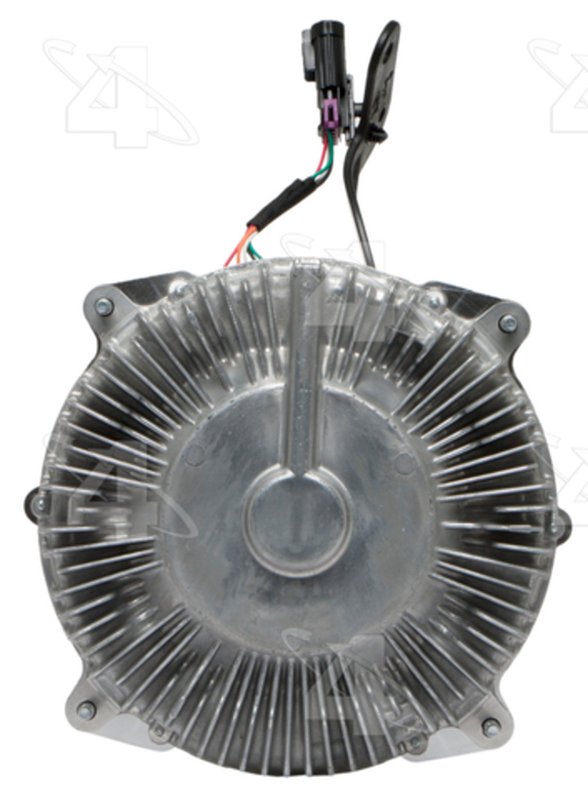

Hayden 3292 Engine Cooling Fan Clutch

Hayden 3292 Severe Duty Electronic Fan Clutch

The Hayden 3292 is a severe duty electronic engine cooling fan clutch built for reverse rotation applications. It is a new aluminum unit with a 9.39-inch maximum diameter, 4-bolt mounting pattern, and male terminal connection for direct replacement service on select Ram heavy-duty trucks.

Key Features

• Electronic fan clutch design for controlled cooling fan engagement
• Severe duty style for demanding engine cooling conditions
• Reverse rotation configuration
• Aluminum construction with raw aluminum finish
• 9.39-inch clutch diameter and 4.29-inch overall height
• 4 bolt holes, 4 mounting holes, and hex mounting type
• 1/4-20 stud thread and male terminal type
• Meets or exceeds OEM requirements
• Performance rated for replacement use

Detailed Description

Hayden Fan Clutch 3292 is an electronic severe duty fan clutch engineered for reverse rotation cooling systems. It measures 9.39 inches in overall diameter, has a 1.86-inch mount diameter, and uses a 4-bolt pattern with an 8.66-inch fan bolt circle. The aluminum housing and electronic control design support precise fan operation in heavy-duty cooling systems. This Hayden 3292 fan clutch is a direct-fit replacement for select Ram 2500, Ram 3500, and Ram 4000 applications, including 2013 Ram 2500, 2013 Ram 3500, 2013 Ram 4000, and 2014-2018 Ram 2500 and Ram 3500 models with reverse rotation electronic fan clutch setups. This part cross-references Mopar 52014729AC for the same application.

Vehicle Fitment

• Fits 2014-2018 Ram 2500, N/A, reverse rotation electronic fan clutch.
• Fits 2014-2018 Ram 3500, N/A, reverse rotation electronic fan clutch.
• Fits 2013 Ram 2500, N/A, reverse rotation electronic fan clutch; from 12/17/12.
• Fits 2013 Ram 3500, N/A, reverse rotation electronic fan clutch; from 12/17/12.
• Fits 2013 Ram 4000, N/A, reverse rotation electronic fan clutch; from 12/17/12.

What It Helps Address

• Cooling fan engagement issues caused by a worn electronic fan clutch
• Engine temperature control problems under load or towing
• Noise or inconsistent fan operation from a failing clutch assembly
• Reduced cooling performance in reverse rotation fan systems
• Replacement needs for Ram 2500 and Ram 3500 cooling service

Installation Notes and Tips

Verify reverse rotation, electronic connector style, mounting diameter, and fan bolt circle before installation. Mounting hardware is not included. Confirm the vehicle’s build date for 2013 Ram 2500, Ram 3500, and Ram 4000 applications, since fitment begins from 12/17/12. Compare the existing clutch dimensions and terminal layout to the Hayden 3292 before removal of the original unit.

Quality Assurance

Hayden Fan Clutch 3292 is a new replacement part that meets or exceeds OEM requirements and is performance rated for severe duty service. It is built for direct replacement use in the specified Ram applications.
