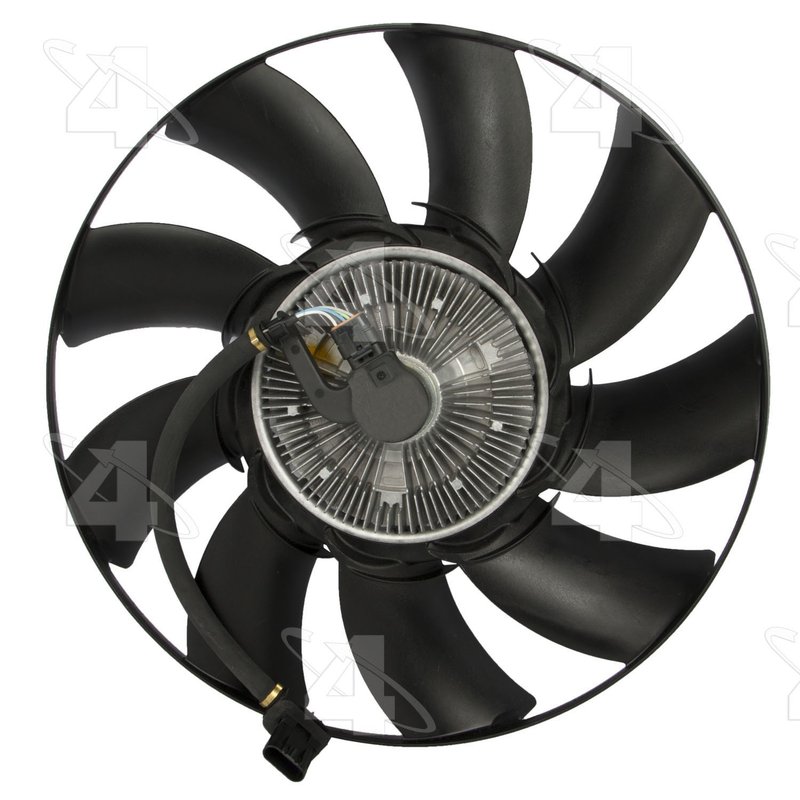

Hayden 3300 Engine Cooling Fan Clutch
| Brand | Hayden 3300 |
|---|---|
| Clutch Maximum Diameter | 7.25 |
| Clutch Type | Electronic |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Distance From Clutch To Mounting Flange | 1.21 |
| Drawing Type | D |
| Electronic Clutch? | Yes |
| Fan Bolt Circle IN | 3.81 |
| Fan Bolt Circle MM | 96.8 |
| Fan Mount Dia. IN | 3.25 |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 1.57 |
| Mount Dia. MM | 40 |
| Mounting Type | HEX |
| O.E. Replacement? | Yes |
| Overall Dia. MM | 184.2 |
| Overall Height IN | 4.29 |
| Overall Height MM | 109 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.6 |
| Pilot Depth MM | 15.2 |
| Rotation | REV |
| Style | Severe Duty |
| Type | Electronic |
| Use Type | Electro-Viscous |
| Wire Gauge Measurement | Uses Original Equipment Connector |
| Wire Quantity | Uses Original Equipment Connector |
| Product line | Fan Clutch |
| Fits | Land Rover · 13 vehicles |
OE replacement. Meets or exceeds OEM requirements for a direct-fit repair.
Electronic clutch. Electro-viscous control delivers responsive fan engagement.
Severe-duty style. Built for demanding cooling-system use.
Cross-references BBB Industries 3300, BEHR 376757311 and 22348 for the same application. See all 9.
Hayden 3300 Fan Clutch for Land Rover Cooling
The Hayden 3300 is an electronic, electro-viscous engine cooling fan clutch built for reverse-rotation applications that require OE-style control and fitment. It is a severe-duty replacement for select Land Rover LR3, Range Rover, and Range Rover Sport models, with original equipment connector compatibility for straightforward integration.
Key Features
- Electronic, electro-viscous fan clutch design
- Severe-duty construction for demanding cooling systems
- Reverse rotation (REV) application
- Uses original equipment connector for wire gauge and wire quantity
- OE replacement that meets or exceeds OEM requirements
- Performance rated for cooling system service
- Raw aluminum finish
- Hex mounting type
Product Details
Hayden Fan Clutch 3300 is engineered as an OE-style electronic cooling fan clutch for vehicles that rely on precise fan engagement to manage engine temperature. The unit measures 7.25 inches in maximum diameter, 4.29 inches in overall height, and 184.2 mm in overall diameter, with a 1.57-inch mount diameter and 3.25-inch fan mount diameter. It also features a 3.81-inch fan bolt circle, 1.21-inch distance from clutch to mounting flange, and 0.6-inch pilot depth. This part cross-references Bosch 3300 for the same application.
Compatible With 2005-2009 Land Rover LR3, N/A; 2006-2009 Land Rover Range Rover, N/A; and 2006-2009 Land Rover Range Rover Sport, N/A. The Hayden 3300 is a direct-fit cooling fan clutch solution for these reverse-rotation Land Rover applications, including Land Rover LR3 fan clutch replacement and Range Rover Sport engine cooling service.
Common Problems This Part Addresses
- Cooling fan clutch engagement issues
- Engine temperature control problems caused by a worn clutch
- Reverse-rotation fan operation concerns
- Loss of OE-style electronic fan control
- Fitment issues from damaged or failing original clutch assemblies
Installation Notes and Tips
Verify the original connector style, mounting type, rotation direction, and dimensional match before installation. Because this unit uses the original equipment connector, it is important to confirm the vehicle’s factory electrical connection and fan assembly layout. Compare the existing clutch diameter, bolt circle, and pilot depth to the specifications listed for the Hayden 3300 before service.
Quality Assurance
Hayden identifies this fan clutch as an OE replacement that meets or exceeds OEM requirements and is performance rated for severe-duty use. The Hayden Fan Clutch line is built for cooling system service where accurate fan control and dependable replacement fitment are required.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Land Rover | LR3 | 4.4L | V8 | N/A | Reverse rotation severe duty thermal engine cooling fan clutch.; Fan Clutch |
| 2009 | Land Rover | Range Rover | 4.4L | V8 | N/A | Reverse rotation severe duty thermal engine cooling fan clutch.; Fan Clutch |
| 2009 | Land Rover | Range Rover Sport | 4.4L | V8 | N/A | Reverse rotation severe duty thermal engine cooling fan clutch.; Fan Clutch |
| 2008 | Land Rover | LR3 | 4.4L | V8 | N/A | Reverse rotation severe duty thermal engine cooling fan clutch.; Fan Clutch |
| 2008 | Land Rover | Range Rover | 4.4L | V8 | N/A | Reverse rotation severe duty thermal engine cooling fan clutch.; Fan Clutch |
| 2008 | Land Rover | Range Rover Sport | 4.4L | V8 | N/A | Reverse rotation severe duty thermal engine cooling fan clutch.; Fan Clutch |
| 2007 | Land Rover | LR3 | 4.4L | V8 | N/A | Reverse rotation severe duty thermal engine cooling fan clutch.; Fan Clutch |
| 2007 | Land Rover | Range Rover | 4.4L | V8 | N/A | Reverse rotation severe duty thermal engine cooling fan clutch.; Fan Clutch |
| 2007 | Land Rover | Range Rover Sport | 4.4L | V8 | N/A | Reverse rotation severe duty thermal engine cooling fan clutch.; Fan Clutch |
| 2006 | Land Rover | LR3 | 4.4L | V8 | N/A | Reverse rotation severe duty thermal engine cooling fan clutch.; Fan Clutch |
| 2006 | Land Rover | Range Rover | 4.4L | V8 | N/A | Reverse rotation severe duty thermal engine cooling fan clutch.; Fan Clutch |
| 2006 | Land Rover | Range Rover Sport | 4.4L | V8 | N/A | Reverse rotation severe duty thermal engine cooling fan clutch.; Fan Clutch |
| 2005 | Land Rover | LR3 | 4.4L | V8 | N/A | Reverse rotation severe duty thermal engine cooling fan clutch.; Fan Clutch |
