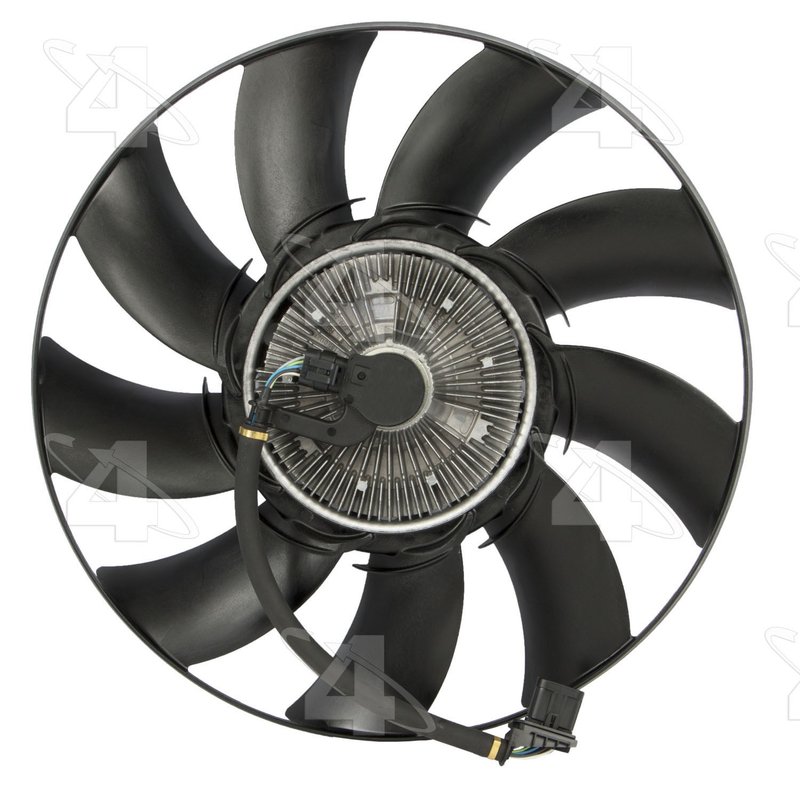

Hayden 3301 Engine Cooling Fan Clutch

Hayden 3301 Fan Clutch Overview

The Hayden 3301 is an electronic engine cooling fan clutch built for severe-duty service and OE-style fitment. It uses the original equipment connector and is engineered as a direct replacement for select Land Rover cooling systems that require electro-viscous fan control.

Compatible with 2006-2009 Land Rover Range Rover and 2006-2009 Land Rover Range Rover Sport applications, this Hayden Fan Clutch line product is built to meet or exceed OEM requirements while maintaining standard rotation and electronic control.

Key Features

• Electronic, electro-viscous fan clutch design
• Severe-duty style for demanding cooling system operation
• Uses original equipment connector for factory-style electrical connection
• OE replacement part that meets or exceeds OEM requirements
• New, performance-rated replacement in raw aluminum finish
• Standard rotation configuration
• Fan bolt circle: 3.81 in. (96.8 mm)
• Fan mount diameter: 3.25 in.
• Pilot depth: 0.6 in. (15.2 mm)
• Distance from clutch to mounting flange: 1.22 in.

Product Details

Hayden 3301 is part of the Hayden Fan Clutch line, a focused cooling-system product line for OE-style replacement applications. This electronic fan clutch is built for vehicles that rely on viscous fan control to manage engine temperature under varying load and driving conditions. The design supports factory electrical integration through the original equipment connector and is intended for direct replacement use on select Land Rover Range Rover and Range Rover Sport models from 2006 through 2009.

This part cross-references Gates 22349 for the same application.

Common Cooling System Issues

• Engine temperature running higher than normal
• Fan clutch engagement problems
• Cooling fan noise caused by a worn clutch
• Reduced airflow through the radiator at low speed or idle
• Electrical connection issues at the fan clutch interface

Installation Notes

• Verify the vehicle uses an electronic, electro-viscous fan clutch before ordering.
• Confirm fan bolt circle, fan mount diameter, and pilot depth against the original unit.
• Use the original equipment connector for proper electrical connection.
• Check rotation direction and mounting flange spacing during installation.
• Inspect the surrounding cooling system components for wear before final assembly.

Quality Assurance

Hayden identifies this part as an OE replacement that meets or exceeds OEM specifications and is performance rated for severe-duty use. Part number 3301 is built as a new replacement component for select Land Rover cooling system applications.
