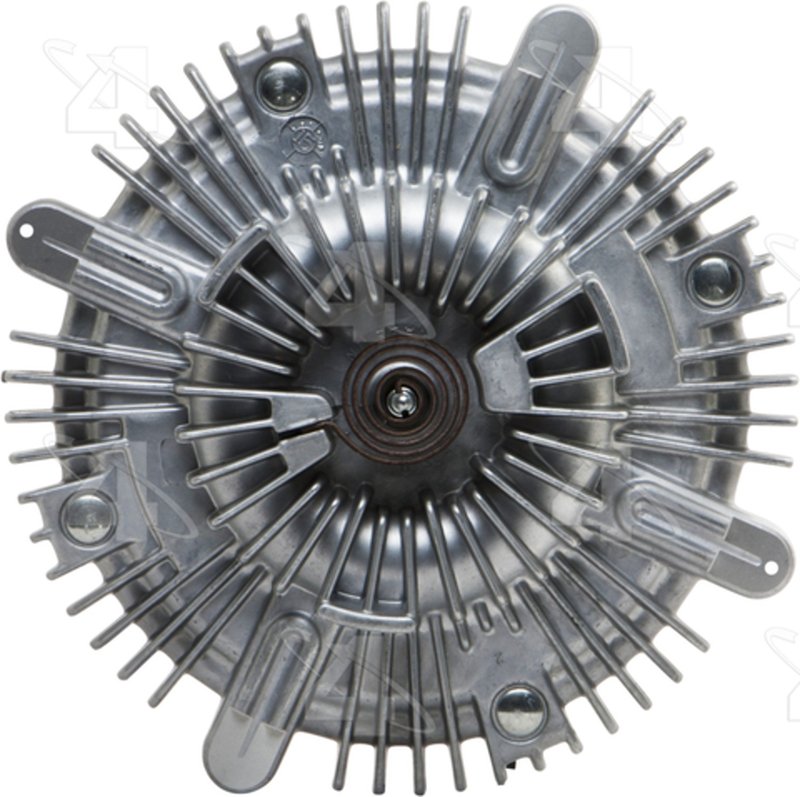

Hayden 6205 Engine Cooling Fan Clutch
| Brand | Hayden 6205 |
|---|---|
| Bolt Hole Quantity | 4 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 6.2 |
| Clutch Type | Thermal |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Dia. IN | 6.2 |
| Distance From Clutch To Mounting Flange | 2.36 |
| Electronic Clutch? | No |
| Fan Bolt Circle IN | 5.65 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 3 |
| Mounting Hardware? | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 157.48 |
| Overall Height IN | 2.93 |
| Overall Height MM | 74.6 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.5 |
| Rotation | STD |
| Style | Heavy Duty |
| Type | Thermal |
| Use Type | Heavy |
| Product line | Fan Clutch |
| Fits | Nissan |
Heavy-duty thermal clutch. Delivers temperature-responsive fan control for cooling performance.
Aluminum construction. Lightweight raw aluminum housing resists wear in demanding use.
OEM-exceeding design. Meets or exceeds OEM standards for dependable replacement fit.
Cross-references Hayden 6205, NTK 22091 and 21082VB01A for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hayden 6205 Heavy Duty Thermal Fan Clutch
The Hayden 6205 fan clutch is a heavy-duty thermal engine cooling fan clutch built with an aluminum body and a standard rotation design. It is a new, performance-rated replacement that meets or exceeds OEM requirements for applications that call for a 6.2-inch clutch with a 4-bolt flange mount.
- Brand: Hayden Fan Clutch
- Part Number: 6205
- Thermal clutch type for temperature-responsive fan engagement
- Heavy-duty style with aluminum construction
- Standard rotation (STD)
- 4-bolt flange mounting with M6 x 1.0 hole thread
- 6.2-inch clutch maximum diameter
- 3-inch mount diameter and 5.65-inch fan bolt circle
- Performance rated and meets or exceeds OEM specifications
- New replacement part
Product Details
Hayden Fan Clutch 6205 is engineered for engine cooling systems that rely on a thermal fan clutch to regulate fan engagement based on operating temperature. The raw aluminum housing, 2.93-inch overall height, and 2.36-inch distance from clutch to mounting flange support a direct-fit style installation where the vehicle calls for this mounting configuration. This part cross-references NTK 22091 for the same application.
For drivers searching for a Hayden 6205 fan clutch, a heavy-duty thermal fan clutch, or an engine cooling fan clutch for a vehicle using a 4-bolt flange mount, this part is built to match the required dimensions and rotation. It is a practical replacement for cooling-system service on applications such as Toyota Tacoma and Toyota Tundra where the correct fan clutch specification is required.
Common Cooling Issues It Can Address
- Fan clutch that no longer engages at the proper temperature
- Cooling fan operation that feels inconsistent or weak
- Engine temperature that rises during idle or low-speed driving
- Excessive fan noise from a worn thermal clutch
- Loss of cooling performance caused by clutch wear
Installation Notes
Confirm the clutch diameter, bolt circle, mounting type, rotation, and pilot depth before installation. This Hayden 6205 uses a flange mount with four bolt holes and does not include mounting hardware. Verify the vehicle’s cooling fan and water-pump interface match the listed dimensions before final assembly.
Quality Assurance
Hayden identifies this fan clutch as performance rated and as meeting or exceeding OEM specifications. The part is new and built for heavy-duty service in engine cooling applications that require a thermal fan clutch replacement.
