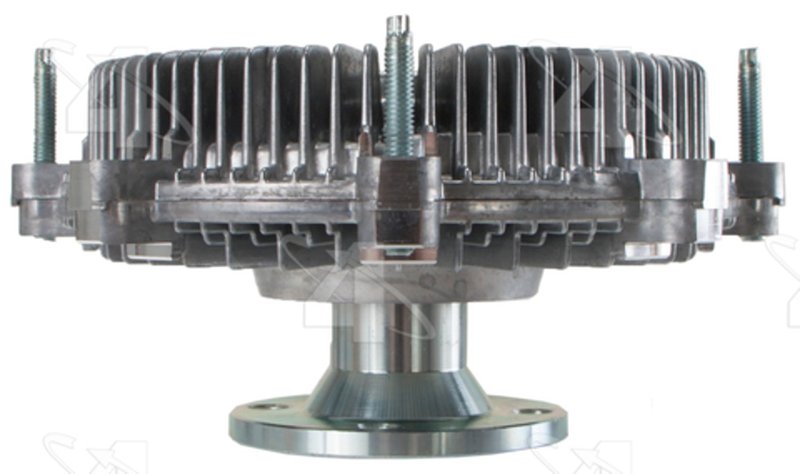

Hayden 6232 Engine Cooling Fan Clutch
| Brand | Hayden 6232 |
|---|---|
| Bolt Hole Quantity | 4 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 7.03 |
| Clutch Type | Thermal |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Dia. IN | 7.03 |
| Distance From Clutch To Mounting Flange | 2.47 |
| Fan Bolt Circle IN | 6.46 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 3.07 |
| Mounting Hardware? | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 178.1 |
| Overall Height IN | 3.37 |
| Overall Height MM | 85.1 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.83 |
| Pilot Dia. IN | 0.63 |
| Rotation | REV |
| Style | Standard Duty |
| Type | Thermal |
| Use Type | Standard Duty |
| Product line | Fan Clutch |
| Fits | Isuzu · 5 vehicles |
OE-spec replacement. Meets or exceeds OEM requirements for dependable cooling performance.
Thermal clutch. Responds to temperature changes for efficient fan engagement.
Aluminum construction. Lightweight material with a raw aluminum finish.
Cross-references AMS Automotive 6232, Four Seasons 46133 and US Motor Works 22176 for the same application. See all 9.
Hayden 6232 Thermal Fan Clutch
The Hayden 6232 is a standard duty thermal engine cooling fan clutch built with an aluminum body and reverse rotation design. It is made for direct replacement use on select Isuzu applications, including the 2003-2004 Isuzu Axiom and Rodeo, plus the 2003 Isuzu Rodeo Sport.
Key Features
- Thermal fan clutch for engine cooling control
- Standard duty style for OE-type replacement service
- Aluminum construction with raw aluminum finish
- Reverse rotation (REV) configuration
- Flange mount design with 4 bolt holes and 4 mounting holes
- Meets or exceeds OEM requirements
- Performance rated for replacement applications
- Part number 6232 for easy identification
Product Details
Hayden Fan Clutch 6232 is a thermal engine cooling fan clutch designed around the factory mounting and operating dimensions used on select Isuzu trucks and SUVs. It features a 7.03-inch maximum diameter, 3.37-inch overall height, 6.46-inch fan bolt circle, and a 3.07-inch mount diameter. The unit uses an M6 x 1.0 hole thread pattern, a 0.63-inch pilot diameter, and a 0.83-inch pilot depth. This part cross-references Four Seasons 46133 for the same application. If you are replacing a worn thermal fan clutch on a 2003-2004 Isuzu Axiom or 2003-2004 Isuzu Rodeo, Hayden 6232 provides the correct reverse rotation flange-mount configuration.
Common Problems This Part Can Address
- Cooling fan engagement that is delayed or inconsistent
- Excessive fan freewheeling from a worn clutch
- Engine temperature rise during stop-and-go driving
- Reduced airflow through the radiator at low vehicle speed
- Noise caused by a failing thermal fan clutch
Installation Notes and Tips
Verify reverse rotation fan clutch orientation before installation and confirm the flange mount pattern matches the original unit. Mounting hardware is not included, so reuse or source the correct fasteners as needed. Check fan blade clearance, pilot fit, and bolt circle alignment before tightening. This part is listed for 2003-2004 Isuzu Axiom, 2003-2004 Isuzu Rodeo, and 2003 Isuzu Rodeo Sport applications.
Quality Assurance
Hayden 6232 is a new replacement part that meets or exceeds OEM specifications and is performance rated for standard duty cooling system service. The Hayden Fan Clutch line is built for direct-fit replacement use in factory-style cooling applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Isuzu | Axiom | — | — | N/A | Standard duty reverse rotation thermal fan clutch.; Fan Clutch |
| 2004 | Isuzu | Rodeo | — | — | N/A | Standard duty reverse rotation thermal fan clutch.; Fan Clutch |
| 2003 | Isuzu | Axiom | — | — | N/A | Standard duty reverse rotation thermal fan clutch.; Fan Clutch |
| 2003 | Isuzu | Rodeo | 3.2L | V6 | N/A | Standard duty reverse rotation thermal fan clutch.; Fan Clutch |
| 2003 | Isuzu | Rodeo Sport | 3.2L | V6 | N/A | Standard duty reverse rotation thermal fan clutch.; Fan Clutch |
