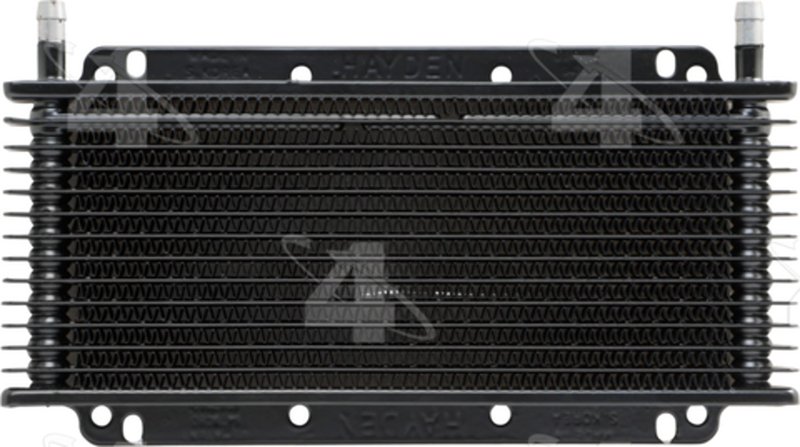

Hayden 696 Automatic Transmission Oil Cooler

Overview of Hayden Trans Oil Cooler 696

The Hayden Trans Oil Cooler 696 is designed to provide reliable cooling for automatic transmission systems across a wide range of vehicles including Ford, Chevrolet, Honda, Toyota, and more. Engineered with durable aluminum construction and a rapid-cool bypass design, this transmission oil cooler helps maintain optimal transmission fluid temperatures for improved performance and longevity.

• Core dimensions: 11 inches length x 6 inches height x 0.75 inches thickness
• Constructed from lightweight, corrosion-resistant aluminum
• Includes mounting hardware and bracket for secure installation
• 12 core rows for efficient heat dissipation
• 3/8 inch male hose barb fittings for easy connection
• Rated burst pressure of 150 PSI for durability
• Performance rated rapid-cool design with bypass feature
• Black finish for corrosion resistance and aesthetic integration

Detailed Product Description

The Hayden Trans Oil Cooler 696 is part of the Trans Oil Cooler product line, which focuses on providing high-quality transmission cooling solutions for a variety of automotive applications. This cooler features a 12-row aluminum core that efficiently dissipates heat from transmission fluid, helping to prevent overheating and extend transmission life. The rapid-cool design includes a bypass feature that allows fluid to circulate even when the cooler is cold, ensuring consistent transmission performance in all conditions. The cooler measures 11 inches wide by 6 inches tall with a depth of 0.75 inches, making it compact yet effective for many vehicle models.

Equipped with 3/8 inch male hose barb fittings, the unit allows for straightforward hose connections. The included mounting bracket and hardware simplify installation, providing a secure fit in the engine bay. The black finish adds corrosion resistance and blends well with most engine compartments. Rated to withstand pressures up to 150 PSI, this cooler is built to handle demanding transmission cooling needs.

Compatible Vehicles and Applications

This transmission oil cooler is compatible with a broad range of makes and models, including but not limited to Ford F-150, Chevrolet Silverado, Honda Accord, Toyota Camry, and many others. It is suitable for vehicles requiring an automatic transmission oil cooler with 3/8 inch hose connections and a compact 11x6 inch core size. The part number 696 ensures you are selecting the correct Hayden Trans Oil Cooler for your application.

• Prevents transmission fluid overheating under heavy load or towing conditions
• Reduces risk of transmission failure due to excessive heat
• Helps maintain consistent transmission shifting performance
• Protects transmission components from premature wear
• Improves overall transmission system reliability

Installation Notes and Tips

Installation of the Hayden Trans Oil Cooler 696 is straightforward with the included mounting bracket and hardware. Ensure the cooler is mounted in a location with adequate airflow, typically in front of the radiator or condenser. Use the 3/8 inch male hose barb fittings to connect transmission fluid lines securely, avoiding kinks or sharp bends. Verify all connections are tight to prevent leaks. It is recommended to inspect and replace transmission fluid as needed during installation to maintain system integrity.

Quality Assurance and Warranty

Hayden's Trans Oil Cooler line, including part number 696, is performance rated and constructed from high-quality aluminum to resist corrosion and withstand high pressures up to 150 PSI. While specific warranty details are not provided, Hayden products are manufactured to meet industry standards for durability and reliability in automotive cooling applications.
