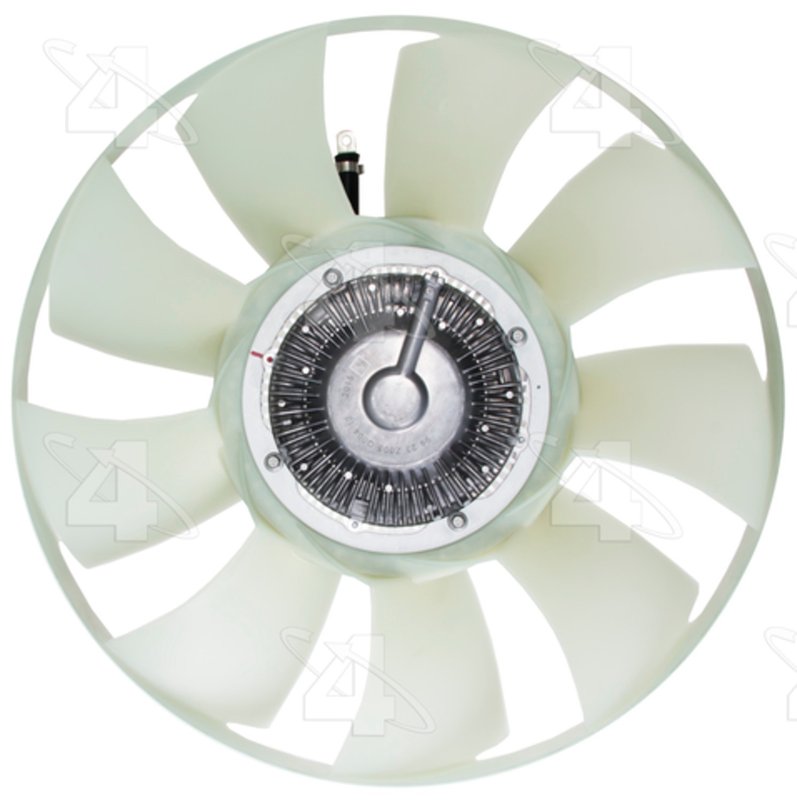

Hayden 8302 Engine Cooling Fan Clutch

Hayden 8302 Severe Duty Electronic Fan Clutch

The Hayden 8302 is a severe duty electronic engine cooling fan clutch built for Mercedes-Benz Sprinter applications that need precise fan control under demanding operating conditions. It is an OE replacement, performance-rated unit made from aluminum with a raw aluminum finish and standard rotation.

Key Features

• Electronic fan clutch design for controlled cooling response
• Severe duty style for demanding service conditions
• Aluminum construction with raw aluminum color
• Standard rotation configuration
• 4-bolt / 4-mounting-hole design with hex mounting type
• Male terminal connection
• Meets or exceeds OEM requirements
• New OE replacement part
• Mounting hardware included

Product Details

Hayden Fan Clutch 8302 is engineered as an electronic engine cooling fan clutch for Mercedes-Benz Sprinter 2500, Sprinter 3500, and Sprinter 3500XD applications. It features a 20-inch maximum clutch diameter, 4-inch overall height, 2.89-inch distance from clutch to mounting flange, 1.18-inch pilot diameter, and 0.57-inch pilot depth. The M6 x 1.0 hole thread specification and hex mounting type support proper OE-style installation. This part cross-references Dorman - HELP 46104 and Gates 22346 for the same application.

Vehicle Fitment

• Fits 2021-2022 Mercedes-Benz Sprinter 2500, N/A, with dual zone climate control; fan clutch.
• Fits 2021-2022 Mercedes-Benz Sprinter 3500, N/A, with dual zone climate control; fan clutch.
• Fits 2021-2022 Mercedes-Benz Sprinter 3500XD, N/A, with dual zone climate control; fan clutch.
• Fits 2017-2020 Mercedes-Benz Sprinter 2500, N/A, standard rotation; electronic fan clutch; fan clutch.
• Fits 2017-2020 Mercedes-Benz Sprinter 3500, N/A, standard rotation; electronic fan clutch; fan clutch.
• Fits 2018-2020 Mercedes-Benz Sprinter 3500XD, N/A, standard rotation; electronic fan clutch; fan clutch.
• Fits 2010-2016 Mercedes-Benz Sprinter 2500, N/A, reverse rotation electronic fan clutch; fan clutch.
• Fits 2010-2016 Mercedes-Benz Sprinter 3500, N/A, reverse rotation electronic fan clutch; fan clutch.
• Fits 2010-2013 Mercedes-Benz Sprinter, N/A, reverse rotation electronic fan clutch; fan clutch.

Common Cooling System Issues It Can Address

• Engine overheating from a fan clutch that no longer engages correctly
• Excessive fan noise caused by a worn or sticking clutch
• Inconsistent cooling performance during stop-and-go driving or heavy load use
• Poor fan response in Mercedes-Benz Sprinter cooling system service
• Replacement needs after electronic fan clutch failure

Installation Notes and Tips

Confirm the vehicle’s rotation type, connector style, and mounting dimensions before installation. This Hayden 8302 fan clutch is listed for both standard rotation and reverse rotation applications depending on model year and configuration, so matching the exact fitment notes is important. Inspect the fan assembly, mounting flange, and surrounding cooling components for wear before installing the new unit.

Quality Assurance

This Hayden Fan Clutch line is positioned as an OE replacement solution and is performance rated to meet or exceed OEM requirements. The Hayden 8302 is a new electronic fan clutch built for severe duty service in Mercedes-Benz Sprinter cooling applications.
