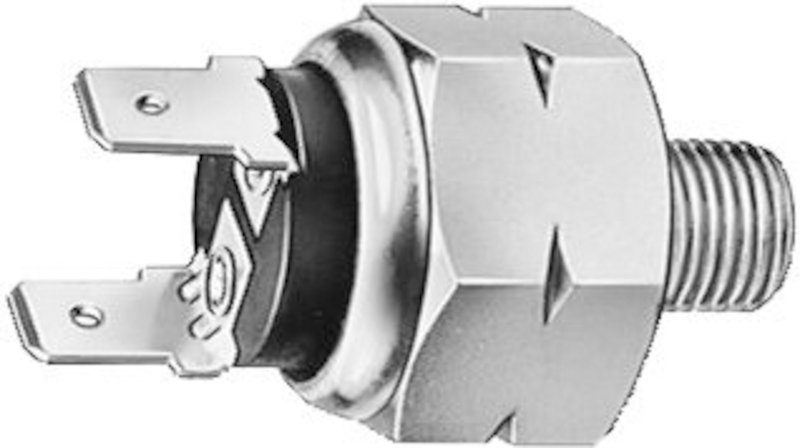

Hella 003262001 Brake Light Switch
| Brand | Hella 003262001 |
|---|---|
| Combi Switch Function | Normally open contact |
| Number of connectors | 2 |
| Operating Mode | Hydraulic |
| Rated Voltage [V] | 12 |
| Spanner Size | 22 |
| SVHC | 7439-92-1; lead |
| Switch Pressure [bar] | 5 |
| Thread Size | M10x1 |
| Fits | Porsche and Volkswagen · 12 vehicles |
Hydraulic operation. Responds to pressure for reliable brake light switching.
Normally open contact. Provides clear on-off switching behavior.
12V electrical design. Built for standard automotive electrical systems.
Cross-references AMS Automotive 4526, AMS Automotive 4613 and Anchor 2108 for the same application. See all 76.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hella 003262001 Hydraulic Brake Light Switch
The Hella 003262001 is a hydraulic stop lamp switch for Audi and Volkswagen applications that use a 12-volt, 2-pin, normally open contact design. It is built for direct brake light signal activation in compatible systems, including Volkswagen Vanagon and Porsche 911 fitments.
Key Features
- Hydraulic operating mode for brake light circuit activation
- Normally open contact switch function
- 12V electrical rating
- 2-pin connector design
- M10x1 thread size with 22 mm spanner size
- Switch pressure rated at 5 bar
- Hella part number 003262001
Detailed Description
This Hella brake light switch is specified for hydraulic stop lamp systems and uses a normally open contact that closes under pressure to trigger the rear brake lamps. The 2-pin connector and M10x1 thread make it a direct-match service part for select Audi/VW brake light switch applications, including 1986-1991 Volkswagen Vanagon and 1987-1989 Porsche 911. The Hella 003262001 is also referenced by cross-number applications such as Standard Ignition SLS-34.
Common Issues This Part Can Address
- Brake lights that do not illuminate when the pedal is applied
- Intermittent brake lamp operation caused by a failing hydraulic switch
- Brake light circuit faults related to worn internal switch contacts
- Incorrect brake lamp signal in 12V hydraulic stop lamp systems
Installation Notes
Verify the vehicle uses a hydraulic brake light switch with a 2-pin connector, M10x1 thread, and 5 bar switch pressure specification before installation. Confirm the connector style and thread engagement on the master cylinder or hydraulic switch port, and compare the removed part to Hella 003262001 for match verification. Compatible vehicle coverage includes Fits 1986-1991 Volkswagen Vanagon, N/A; Fits 1987-1989 Porsche 911, N/A; Fits 1985-1986 Porsche 911, N/A; and Fits 1985 Volkswagen Vanagon, N/A.
Quality Assurance
Hella is a recognized OE-level automotive electrical supplier, and this switch is built to meet the specified hydraulic, voltage, connector, and thread requirements for the listed applications. Use the part number 003262001 to confirm the correct replacement before service.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 1991 | Volkswagen | Vanagon | Syncro | N/A | 12V - 2-Pin Connector - Normally Open Contact - Hydraulic |
| 1990 | Volkswagen | Vanagon | Syncro | N/A | 12V - 2-Pin Connector - Normally Open Contact - Hydraulic |
| 1989 | Porsche | 911 | Turbo Carrera | N/A | 12V - 2-Pin Connector - Normally Open Contact - Hydraulic |
| 1989 | Volkswagen | Vanagon | Syncro | N/A | 12V - 2-Pin Connector - Normally Open Contact - Hydraulic |
| 1988 | Porsche | 911 | Turbo Carrera | N/A | 12V - 2-Pin Connector - Normally Open Contact - Hydraulic |
| 1988 | Volkswagen | Vanagon | Syncro | N/A | 12V - 2-Pin Connector - Normally Open Contact - Hydraulic |
| 1987 | Porsche | 911 | Turbo Carrera | N/A | 12V - 2-Pin Connector - Normally Open Contact - Hydraulic |
| 1987 | Volkswagen | Vanagon | Syncro | N/A | 12V - 2-Pin Connector - Normally Open Contact - Hydraulic |
| 1986 | Porsche | 911 | Turbo Carrera | N/A | 2 Pin Connector |
| 1986 | Volkswagen | Vanagon | Syncro | N/A | 12V - 2-Pin Connector - Normally Open Contact - Hydraulic |
| 1985 | Porsche | 911 | Carrera | N/A | 2 Pin Connector |
| 1985 | Volkswagen | Vanagon | L | N/A | 2 Pin Connector |
