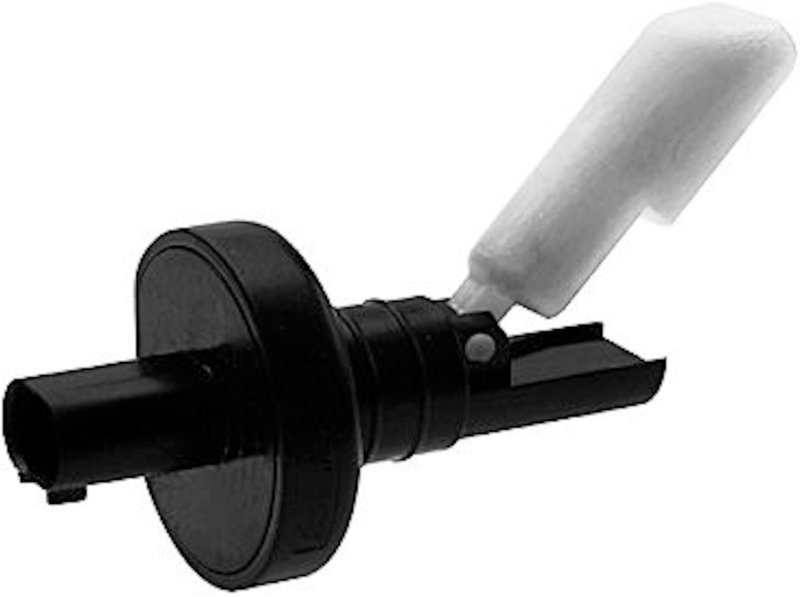

Hella 007968011 Washer Fluid Level Sensor

Hella Washer Fluid Level Sensor for Mercedes-Benz

Restore accurate windshield washer fluid monitoring with this Hella washer fluid level sensor, part number 007968011. Built for Mercedes-Benz applications, it uses a 2-pin blade terminal design, a black housing, and an included seal for a secure reservoir connection.

• Washer fluid level sensor for windshield washer systems
• Hella OE-quality replacement, part number 007968011
• 2 connectors with blade terminal plug type
• 88.6 mm height for listed reservoir applications
• Black housing with seal included
• Rated voltage: 8 V; rated power: 0.25 W

Product Details

This Hella windshield washer fluid level sensor is designed to monitor washer reservoir fluid level and trigger the low-fluid warning when the system detects a drop in level. The compact 88.6 mm body, 2-connector blade terminal layout, and sealed construction support direct replacement on a wide range of Mercedes-Benz passenger cars and Sprinter models, as well as select Volkswagen Crafter applications. Part number 007968011 is also cross-referenced with Gates 28489 for the same application.

Compatible With Mercedes-Benz C-Class, E-Class, CLS-Class, S-Class, SL-Class, SLK-Class, Sprinter, and Volkswagen Crafter applications listed in the fitment data. This part number 007968011 is commonly searched for Mercedes-Benz washer fluid level sensor replacement, Mercedes-Benz windshield washer reservoir sensor, and OE-style washer level switch service.

What It Helps Fix

• Inaccurate or intermittent low washer fluid warnings
• No washer fluid level warning when the reservoir is low
• Sensor leakage at the reservoir seal area
• Electrical connection issues at the washer tank sensor
• Failed washer fluid level detection after age or contamination

Installation Notes and Tips

Verify reservoir style, connector count, and sensor height before installation. Confirm the blade terminal connection matches the vehicle harness and inspect the seal surface on the washer tank for debris, cracks, or distortion before fitting the new sensor. After installation, fill the reservoir and check for proper warning-light operation and leaks.

Quality Assurance

Hella supplies OE-level components for vehicle electrical and visibility systems, and this sensor is built to the listed electrical and dimensional specifications for the confirmed applications. Use the vehicle fitment data to confirm compatibility before ordering.
